Каталог запасных частей к технике: DYNAPAC CP275. Propulsion motor assy

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CA1400 (2016) CA2500D (2016) CA2500D (2018) CA2500D-PD (2018) CA250D (2011) CA252D (2008) CA2800D (2017) CA3500D (2016) CA4000D (2017) CA4000D (2020) CA4600D (2019) CA5500D (2015) CA610PD (2014) CA6500 (2018) CC1000 (2019) CC1100CC (2015) CC1200C Plus (2015) CC1200C VI (2018) CC1200CC (2018) CC125 (2015) CC1250 (2015) CC1300 (2018) CC1300C (2015) CC1300C (2016) CC2200 (2018) CC2200 (2020) CC2300C (2018) CC3300 (2018) CC4000 VI (2018) CC4200C VI (2020) CC5200C (2018) CC6200 VI (2020) CC800 (2019) CC900 (2018) CC900S (2018) CG2300 (2018) CP142 (2015) CP275 (2014) Dynapac CA1500 (2017) Dynapac CA2500 (2012) Dynapac CA302D (2008) Dynapac CA302D (2010) Dynapac CA5000D (2017) Dynapac CC142 (2009) Dynapac CC2200C (2015) Dynapac CC224HF (2012) Dynapac CC322 (2008) Dynapac CC422 (2010) Dynapac CC5200 (2014) Dynapac CC5200 (2017) Dynapac CC5200 (2017) Dynapac CC5200 VI (2017) Dynapac CC800 (2013) Dynapac CC800 (2014) Dynapac F1200C/CS (2018) Dynapac F1200CS/CS (2018) Dynapac F1800C (2018) Dynapac F181C (2010) Dynapac PL2000LS (2010) Dynapac PL2000LS (2010) Dynapac PL2000S (2010) Dynapac PL2000S (2010) Dynapac SCC1300 (2014) Dynapac SD2500C (ч. 1) (2018) Dynapac SD2500C (ч. 2) (2018) Dynapac SD2550C (ч. 1) (2018) Dynapac SD2550C (ч. 2) (2018) F2500C (2018) SD2550CS (2015)

Схема > Не выбрано DYNAPAC CP275 (II/T2) SN 10000508x0C002436 - 4812268992 Service kit 50 h 4812271623 Service kit 250 / 750 h 4812268993 Service kit 500 h 4812268994 Service kit 1000 h 4812269114 CP275 Service kit, 50 h plus (China kit) 4812269115 CP275 Service kit, 250/750 h plus (China kit) 4812269116 CP275 Service kit, 500 h plus (China kit) 4812269117 CP275 Service kit, 1000 h plus (China kit) 4812269118 CP275 Service kit, 50 h plus (EXCEPT China market) 4812269119 CP275 Service kit, 250/750 h plus (EXCEPT China market) 4812269120 CP275 Service kit, 500 h plus (EXCEPT China market) 4812269121 CP275 Service kit, 1000 h plus (EXCEPT China market) 4812155698 Sprinkler kit 4812270212 Scraper kit 4812269097 Suspension kit 4812269093 Brake kit 4812268159 Air on the run field kit Frame Rear cover assy Sprinkling system Sprinkler tank module Water hoses assy Sprinkler pipe module Sprinkler pipe mount Sprinkler pipe module Sprinkler pipe mount Sprinkler pipe module Sprinkler pipe mount Sprinkling pump module Sprinkling pump mount Sprinkler pipe module Sprinkler pipe mount Cab module Cab ASSY Rotating beacon Electrical cpl. Switch panel assy 4812265355 Lock assy, left door Lock assy, right door Windshield plate Interior cover assy Side working light Canopy option Canopy assy Bracket Instrument box module Instrument panel cpl Electrical cpl Armrest component Driver platform assy Engine system Cooling system 4812268790 Radiator Air intake system Exhaust system Fuel system Engine assy Engine Cummins 4BTAA3.9-C125 93kw Motor starter assy Valve cover Oil dipstick assy Fuel filter Parts kit Fuel pipe assy Air compressor assy Performance parts Engine hood assy Engine hood To 0C003219 Engine hood From 0C003220 Locking device Front suspension 4812266314 Brake Hub Sub-assembly Wheel 4812266327 Tire Hub-cap assy Front suspension From 0C002472 Front suspension From 0C003220 Front scraper assy Scraper bracket module To 0C003219 Bracket assy Scraper mount To 0C002471 Scraper mount From 0C002472 Rear suspension Inside Wheel Rear scraper assy Scraper bracket module From 0C003220 Rear chain cover Left cover Right cover Adjusting mechanism Cover Hydraulic system Oil tank Steering system Steering Valve Assy Steering cylinder assy Fan drive system Fan drive motor assy Fan drive motor assy Return block assy Fan drive control valve Hydraulic system Pump assy 4812266042 Pump Flange Propulsion motor assy 4812266043 Hydraulic motor Flange Brake relief valve Brake system Connection block Air tank assy Air cylinder assy Brake valve assy Brake valve assy Brake valve assy Shuttle valve assy Holder assy Electric cables, power supply Battery disconnector kit Battery cable From 0C002475 Frame cable harness Back-up alarm module Horn assembly Bulb 21W ECU module Lightings Driving lights, front RH Driving lights, front LH Driving lights, rear LH Driving lights, rear RH Electrical accessory Decals 4812265895 Ballast assy, 27T 4812265932 Ballast assy, 30T 4812265855 Hollow ballast assy 4812266670 Air on the run Oil spray system Oil tank Assy Oil pump assembly Cover assembly Front support assembly Rear support assembly Bracket assembly Bracket assembly Oil spray unit Oil spray electric system (Kit) Air conditioning Compressor module To 0C004279 Compressor module From 0C004280 Condensor module Evaporator module Hose kit AC Heater module

1

2

2

3

4

5

6

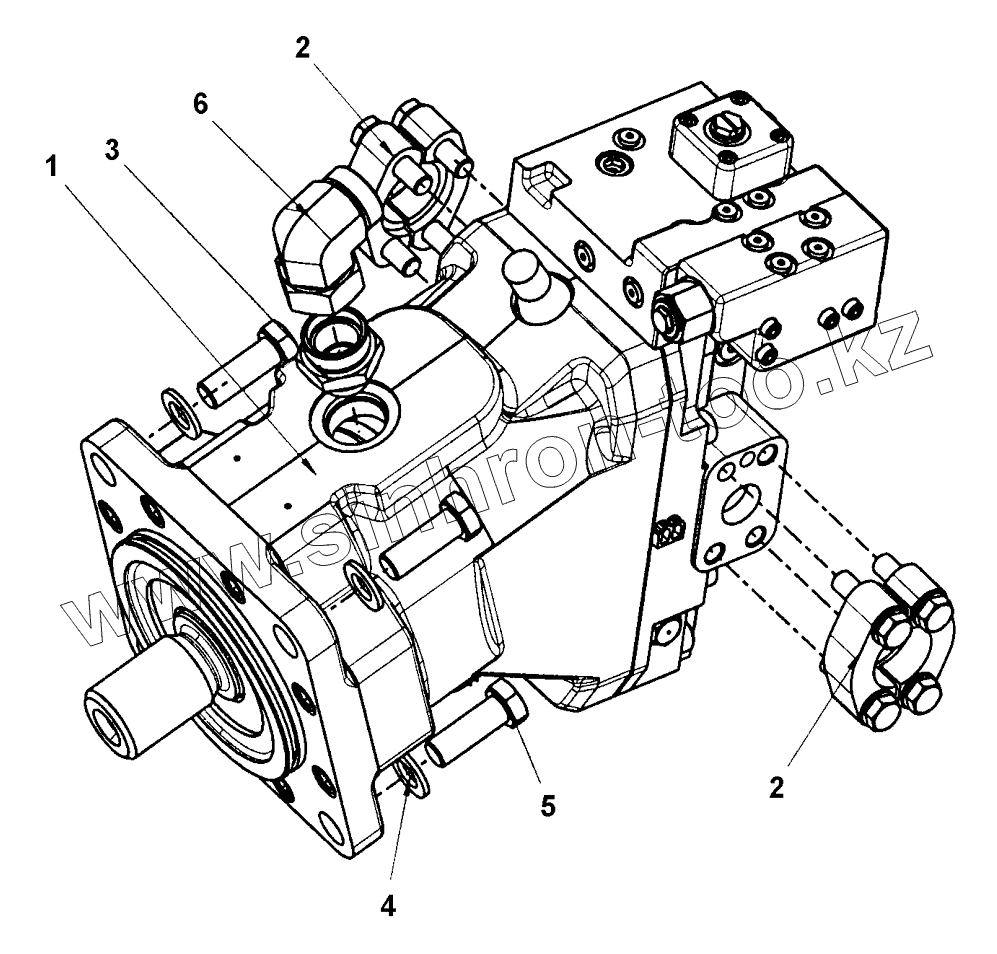

Позиция на иллюстрации	Заводской номер детали		Название детали
1	4812266043		Hydraulic motor
2	Flange		Flange
3	4812266729		Fitting
4	4700904232		Steel plain washer
5	4700500102		Hex. screw
6	4812266762		Fitting
