Позиция на иллюстрации
Заводской номер детали
Название детали
OiltankAssy
OiltankAssy

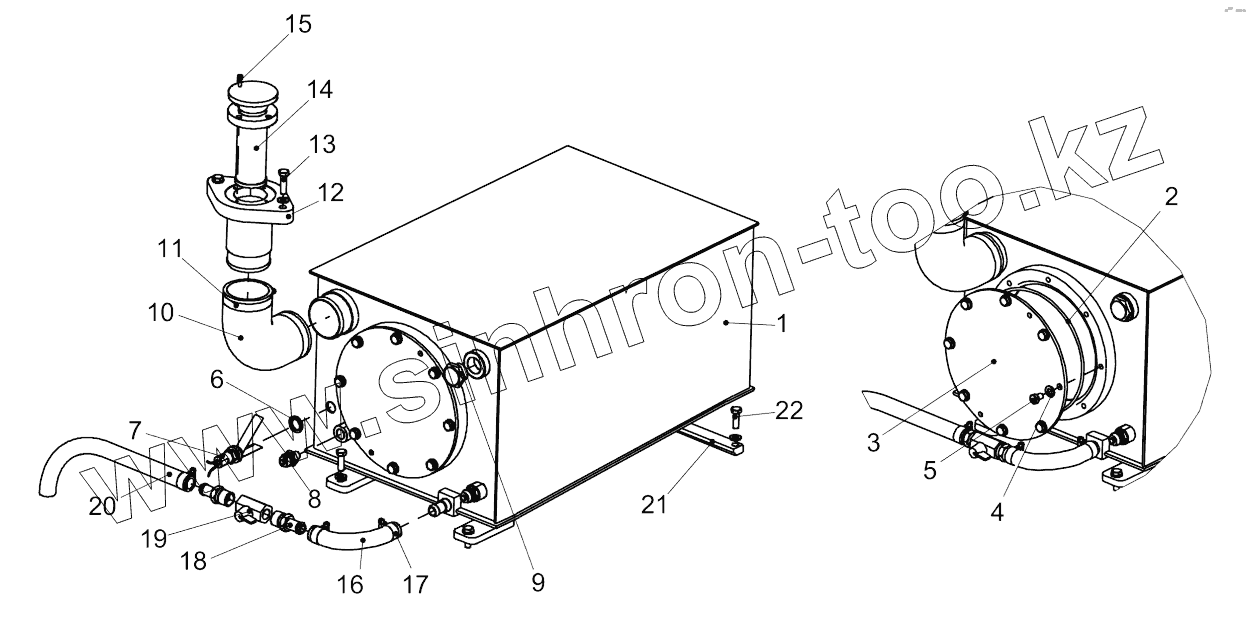

Oil tank Assy
1
4812270034
Oil tank
2
4700160362
O-ring 70
3
4812265171
Cover
4
4700904229
Washer
5
0147132003
Hex. head screw
6
4700162011
Washer, sealing
7
4812265176
Oil level alarm
8
4812272890
Quick fitting
9
4700791395
Sight plug
10
4812265172
Rubber elbow
11
4700313023
Hose clamp
12
4812265189
Filler neck
13
0147132603
Screw
14
4812265177
Hydraulic air cleaner
15
0211117103
Hexagon socket head cap screw
16
4812271997
Hose
17
4700313004
Hose clamp
18
4812265185
Fitting
19
4700925599
Ball valve
20
4812271997
Hose
21
4812268121
Plate
22
0147132503
Hex. Head screw
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
