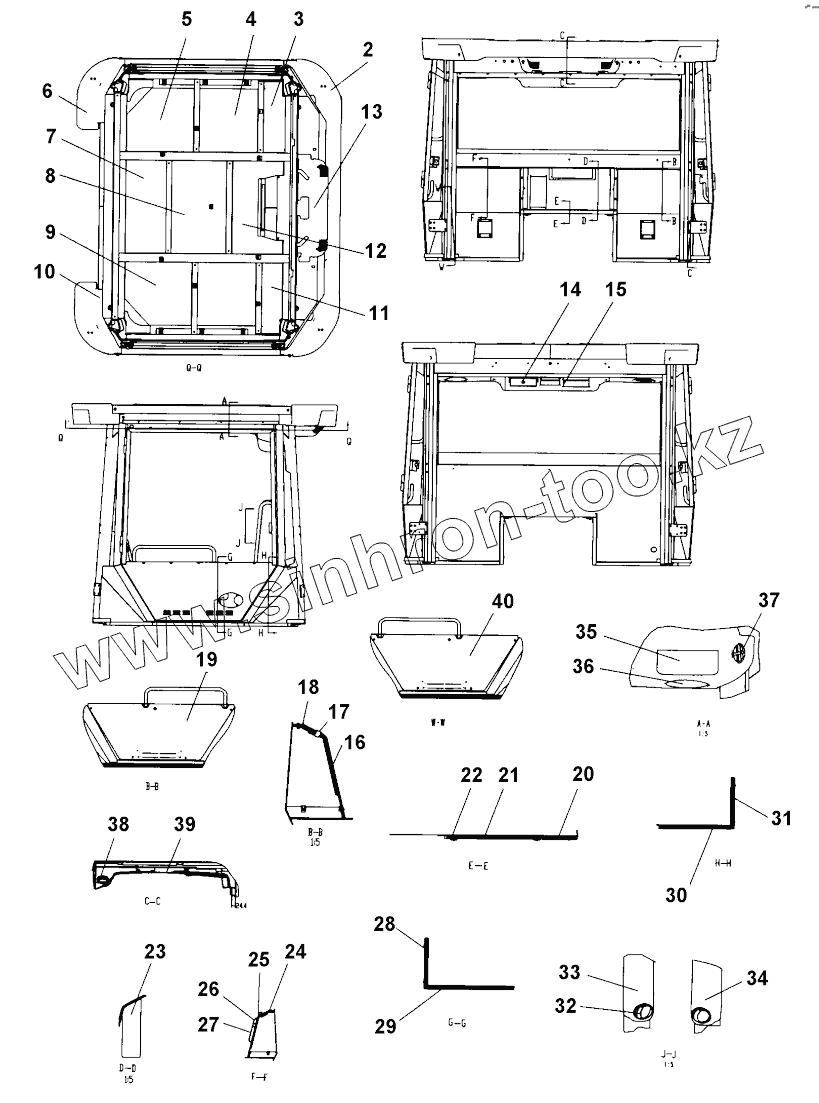

Каталог запасных частей к технике: DYNAPAC CP275. Interior cover assy
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2 | 4812267766 | Roof, front | |
| 3 | 4812267786 | Insulation | |
| 4 | 4812267784 | Insulation | |
| 5 | 4812267785 | Insulation | |
| 6 | 4812267767 | Roof, rear right side | |
| 7 | 4812267782 | Insulation | |
| 8 | 4812267781 | Insulation | |
| 9 | 4812267789 | Insulation | |
| 10 | 4812267768 | Roof, rear left side | |
| 11 | 4812267787 | Insulation | |
| 12 | 4812267783 | Insulation | |
| 13 | 4812265367 | Evaporator protection cover | |
| 14 | 4812267799 | Radio cover | |
| 15 | 4812267750 | Cover, front top | |
| 16 | 4812267759 | Cover plate, rear left side | |
| 17 | 4812267758 | Cover, rear left side | |
| 18 | 4812267674 | Door lock | |
| 19 | 4812265377 | Cover, left door | |
| 20 | 4812267771 | Insulation | |
| 21 | 4812267788 | Insulation | |
| 22 | 4812267566 | Sponge buckle | |
| 23 | 4812267765 | Box | |
| 24 | 4812267761 | Cover, rear right side | |
| 25 | 4812267762 | Cover plate, rear right side | |
| 26 | 4812265376 | Instruction book holder | |
| 27 | 4812265434 | Instruction book holder mark | |
| 28 | 4812267775 | Insulation | |
| 29 | 4812267773 | Insulation | |
| 30 | 4812267772 | Insulation | |
| 31 | 4812267774 | Insulation | |
| 32 | 4812265325 | Air outlet | |
| 33 | 4812267769 | Cover, left column | |
| 34 | 4812267764 | Cover, right column | |
| 35 | 4812265365 | Rectangular cover | |
| 36 | 4812265366 | Horn cover | |
| 37 | 4812265700 | Air outlet | |
| 38 | 4812265379 | Air outlet | |
| 39 | 4812267753 | Return air inlet | |
| 40 | 4812267763 | Cover, left door |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
