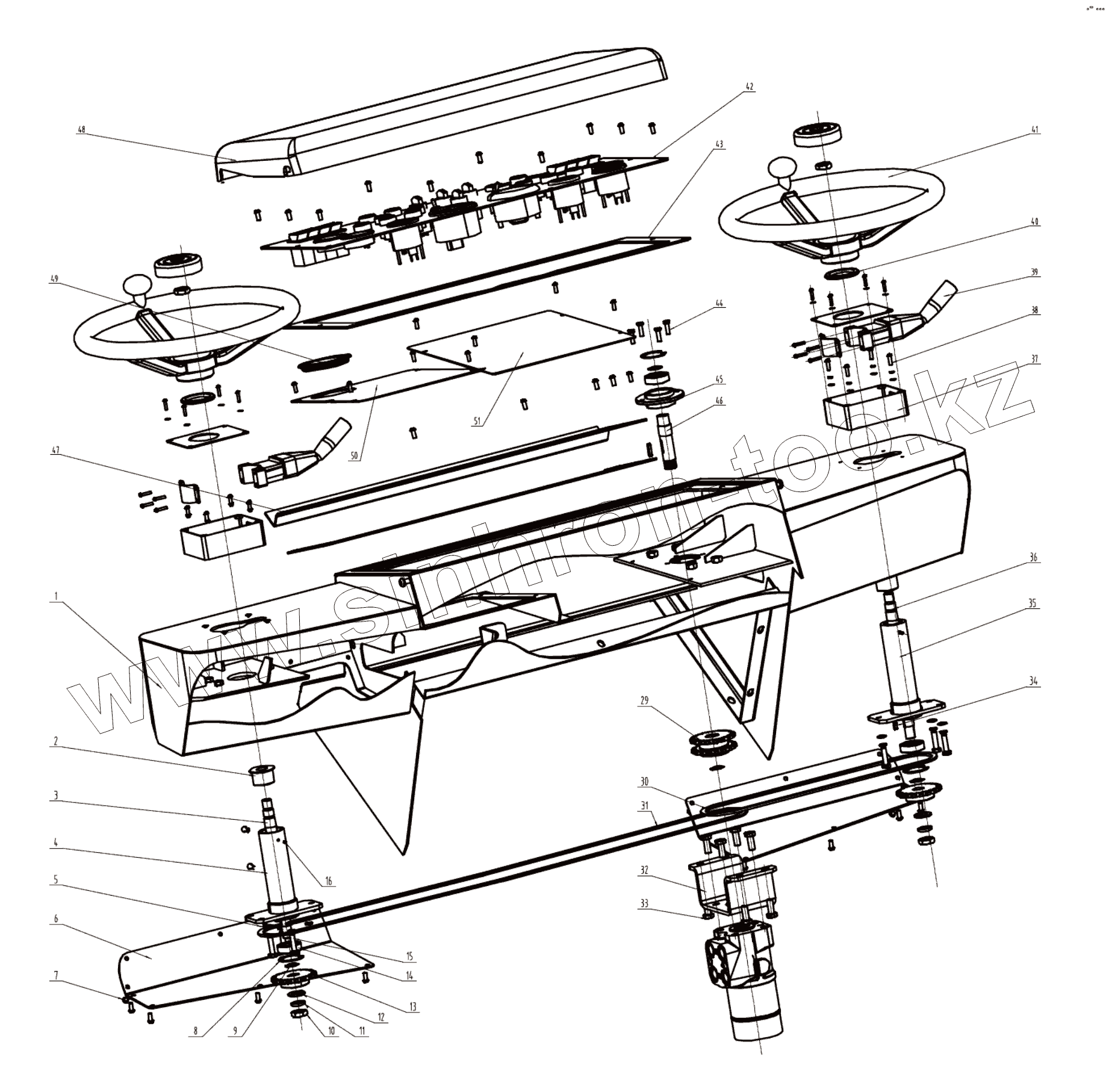

Каталог запасных частей к технике: DYNAPAC CP275. Instrument panel cpl
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4812269204 | Instrument panel, cpl | |
| 2 | 4812269179 | Nylon bushing | |
| 3 | 4812269187 | Left steering wheel shaft | |
| 4 | 4812269164 | Left mounting pipe | |
| 5 | 4700601003 | Washer | |
| 6 | 4812269167 | Cover | |
| 7 | 4700904206 | Screw | |
| 8 | 4700151012 | Retaining ring | |
| 9 | 4700150008 | Circlip | |
| 10 | 4812269065 | Hexagon thin nut | |
| 11 | 4812269066 | Steel plain washer | |
| 12 | 4812269067 | Spring washer | |
| 13 | 4812269184 | Single chain wheel | |
| 14 | 4812269080 | Bearing | |
| 15 | 4700500021 | Hex. screw | |
| 16 | 4812269068 | Lock screw | |
| 29 | 4812269183 | Roller chain | |
| 30 | 4812269073 | Whole chain | |
| 31 | 4812269074 | Whole chain | |
| 32 | 4812269172 | Steering gear mounting plate | |
| 33 | 4700500029 | Hex. screw | |
| 34 | 4700350006 | Parallel key | |
| 35 | 4812269173 | Right mounting pipe | |
| 36 | 4812269178 | Right steering wheel shaft | |
| 37 | 4812269217 | Steering switch box | |
| 38 | 4700792496 | Screw | |
| 39 | 4812269075 | Steering switch | |
| 40 | 4812269076 | Rubber bushing | |
| 41 | 4812269077 | Three spokes steering wheel | |
| 42 | Electricalcpl | Electrical cpl | |
| 43 | 4812269078 | Sealing strip | |
| 44 | 4700500040 | Screw | |
| 45 | 4812269181 | Bearing block | |
| 46 | 4812269180 | Spline shaft | |
| 47 | 4812269153 | Cover | |
| 48 | 4812269163 | Vandal cover | |
| 49 | 4812269182 | Cable bush | |
| 50 | 4812269198 | Heat insulation plate | |
| 51 | 4812269197 | Heat insulation plate | |
| 52 | 4700630003 | Split pin | |
| 52 | 4812268204 | Service kit | |
| 52 | 4700586019 | Lock nut | |
| 52 | 4812268205 | Tensioning screw | |
| 52 | 4812268199 | Clevis pin | |
| 53 | 4812269759 | Instrument panel structure assy |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
