Позиция на иллюстрации
Заводской номер детали
Название детали

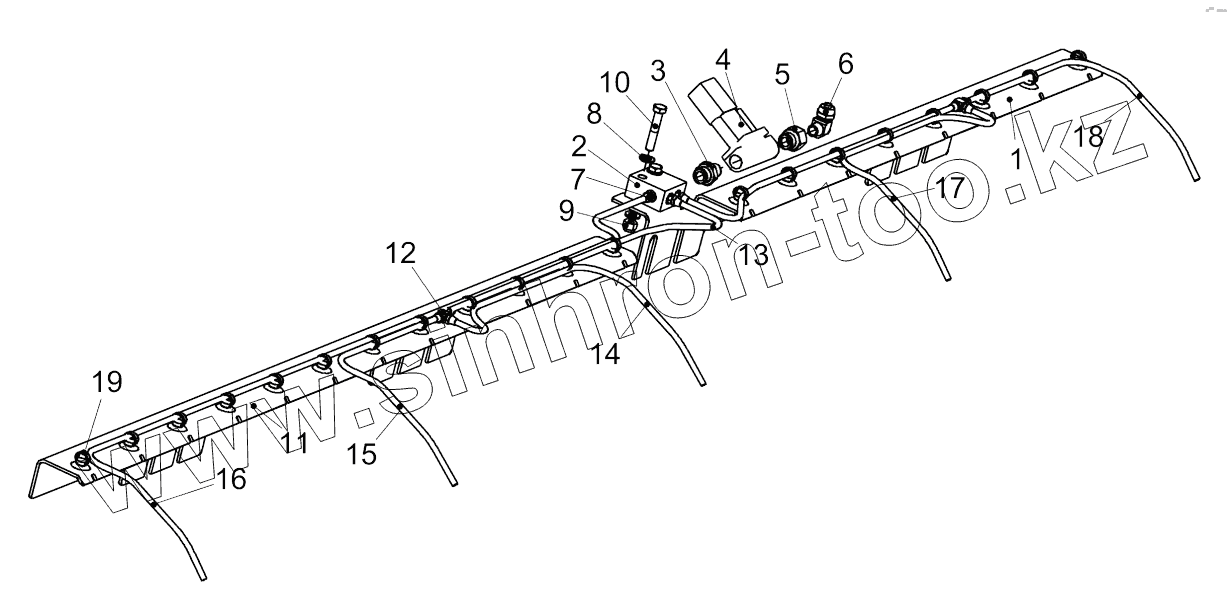

FrontSupportAssy
FrontSupportAssy
Front Support Assy
1
4812272855
Bracket
2
4812272863
Block
3
4812272869
Fitting
4
4812268065
Solenoid valve
5
4812272868
Fitting
6
4812272891
Quick fitting
7
4812274906
Quick fitting
8
4700904229
Washer
9
4700586003
Hexagon lock nut
10
4700500024
Screw
11
4812272856
Bracket
12
4812274907
Quick fitting
13
4812274909
Hose
14
4812274909
Hose
15
4812274909
Hose
16
4812274909
Hose
17
4812274909
Hose
18
4812274909
Hose
19
4700792441
Cable tie with holder
