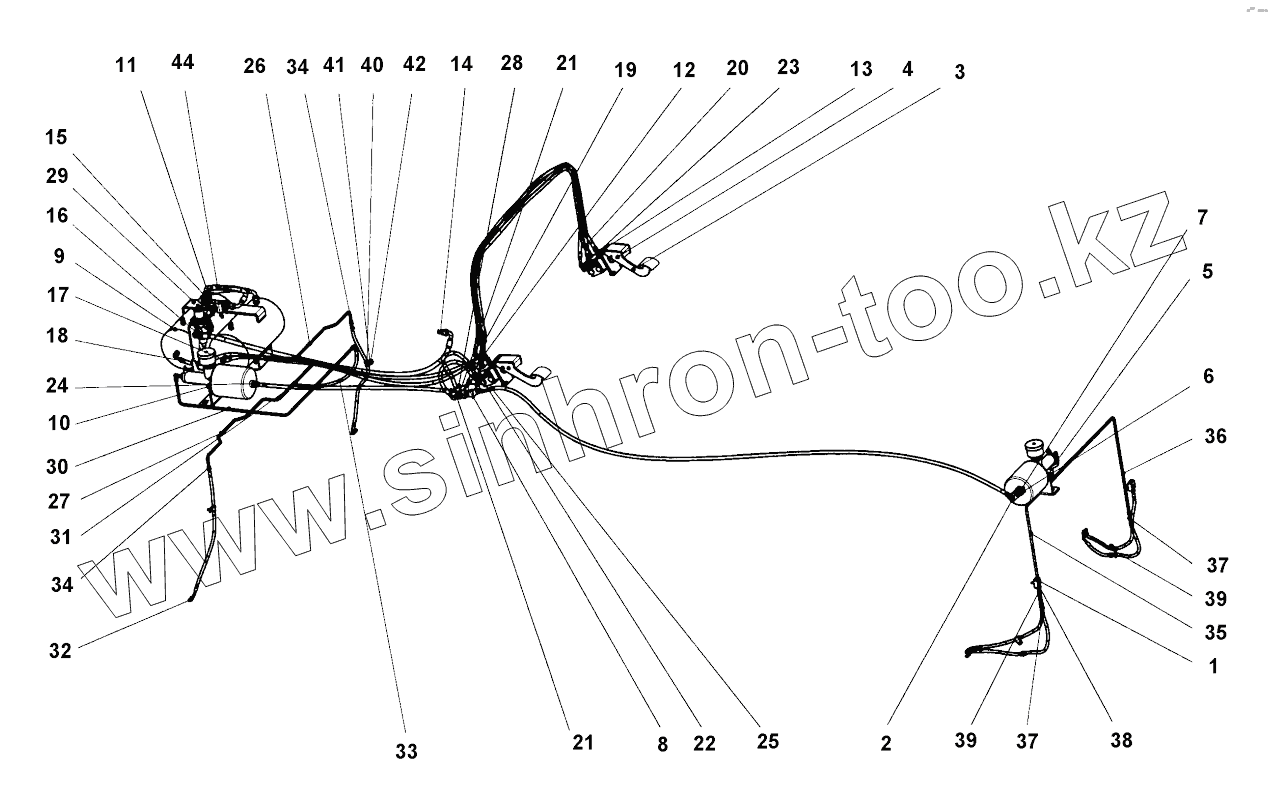

Каталог запасных частей к технике: DYNAPAC CP275. Brake system
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
24
25
26
27
28
29
30
31
32
33
34
34
35
36
37
37
38
39
39
40
41
42
44
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | Connectionblock | Connection block | |
| 2 | 4700330333 | Copper washer | |
| 3 | 4812267480 | Brake pedal | |
| 4 | 4812267486 | Pin | |
| 5 | 4812266856 | Hose | |
| 6 | 4812269870 | Pressure sensor | |
| 7 | 4812269871 | Joint | |
| 8 | 4812266829 | Fitting | |
| 9 | Airtank | Air tank assy | |
| 10 | Aircylinder | Air cylinder assy | |
| 11 | Brakevalve | Brake valve | |
| 12 | Brakevalve | Brake valve | |
| 13 | Brakevalve | Brake valve | |
| 14 | 4812266798 | Fitting | |
| 15 | 4812266788 | Hose | |
| 16 | 4812266789 | Hose | |
| 17 | 4812266790 | Hose | |
| 18 | 4812266791 | Hose | |
| 19 | 4812266792 | Hose | |
| 20 | 4812266793 | Hose | |
| 21 | 4812266795 | Hose | |
| 22 | 4812266869 | Hose | |
| 23 | 4812266870 | Hose | |
| 24 | 4812266871 | Hose | |
| 25 | 4812266872 | Hose | |
| 26 | 4812266850 | Pipe | |
| 27 | 4812266851 | Pipe | |
| 28 | Shuttlevalve | Shuttle valve assy | |
| 29 | Holder | Holder | |
| 30 | 4812266853 | Pipe | |
| 31 | 4812266866 | Fitting | |
| 32 | 4812266864 | Fitting | |
| 33 | 4812266854 | Hose | |
| 34 | 4812266855 | Hose | |
| 35 | 4812266858 | Pipe | |
| 36 | 4812266859 | Pipe | |
| 37 | 4812266860 | Hose | |
| 38 | 4812266867 | Fitting | |
| 39 | 4812266862 | Hose | |
| 40 | 4700921072 | Clamp | |
| 41 | 4700904229 | Washer | |
| 42 | 4700500019 | Hex. screw | |
| 44 | 4812266794 | Hose |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
