4812265855 Hollow ballast assy
Каталог запасных частей к технике: DYNAPAC CP275. 4812265855 Hollow ballast assy
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
CA1400 (2016)
CA2500D (2016)
CA2500D (2018)
CA2500D-PD (2018)
CA250D (2011)
CA252D (2008)
CA2800D (2017)
CA3500D (2016)
CA4000D (2017)
CA4000D (2020)
CA4600D (2019)
CA5500D (2015)
CA610PD (2014)
CA6500 (2018)
CC1000 (2019)
CC1100CC (2015)
CC1200C Plus (2015)
CC1200C VI (2018)
CC1200CC (2018)
CC125 (2015)
CC1250 (2015)
CC1300 (2018)
CC1300C (2015)
CC1300C (2016)
CC2200 (2018)
CC2200 (2020)
CC2300C (2018)
CC3300 (2018)
CC4000 VI (2018)
CC4200C VI (2020)
CC5200C (2018)
CC6200 VI (2020)
CC800 (2019)
CC900 (2018)
CC900S (2018)
CG2300 (2018)
CP142 (2015)
CP275 (2014)
Dynapac CA1500 (2017)
Dynapac CA2500 (2012)
Dynapac CA302D (2008)
Dynapac CA302D (2010)
Dynapac CA5000D (2017)
Dynapac CC142 (2009)
Dynapac CC2200C (2015)
Dynapac CC224HF (2012)
Dynapac CC322 (2008)
Dynapac CC422 (2010)
Dynapac CC5200 (2014)
Dynapac CC5200 (2017)
Dynapac CC5200 (2017)
Dynapac CC5200 VI (2017)
Dynapac CC800 (2013)
Dynapac CC800 (2014)
Dynapac F1200C/CS (2018)
Dynapac F1200CS/CS (2018)
Dynapac F1800C (2018)
Dynapac F181C (2010)
Dynapac PL2000LS (2010)
Dynapac PL2000LS (2010)
Dynapac PL2000S (2010)
Dynapac PL2000S (2010)
Dynapac SCC1300 (2014)
Dynapac SD2500C (ч. 1) (2018)
Dynapac SD2500C (ч. 2) (2018)
Dynapac SD2550C (ч. 1) (2018)
Dynapac SD2550C (ч. 2) (2018)
F2500C (2018)
SD2550CS (2015)
Схема
>
Не выбрано
DYNAPAC CP275 (II/T2) SN 10000508x0C002436 -
4812268992 Service kit 50 h
4812271623 Service kit 250 / 750 h
4812268993 Service kit 500 h
4812268994 Service kit 1000 h
4812269114 CP275 Service kit, 50 h plus (China kit)
4812269115 CP275 Service kit, 250/750 h plus (China kit)
4812269116 CP275 Service kit, 500 h plus (China kit)
4812269117 CP275 Service kit, 1000 h plus (China kit)
4812269118 CP275 Service kit, 50 h plus (EXCEPT China market)
4812269119 CP275 Service kit, 250/750 h plus (EXCEPT China market)
4812269120 CP275 Service kit, 500 h plus (EXCEPT China market)
4812269121 CP275 Service kit, 1000 h plus (EXCEPT China market)
4812155698 Sprinkler kit
4812270212 Scraper kit
4812269097 Suspension kit
4812269093 Brake kit
4812268159 Air on the run field kit
Frame
Rear cover assy
Sprinkling system
Sprinkler tank module
Water hoses assy
Sprinkler pipe module
Sprinkler pipe mount
Sprinkler pipe module
Sprinkler pipe mount
Sprinkler pipe module
Sprinkler pipe mount
Sprinkling pump module
Sprinkling pump mount
Sprinkler pipe module
Sprinkler pipe mount
Cab module
Cab ASSY
Rotating beacon
Electrical cpl.
Switch panel assy
4812265355 Lock assy, left door
Lock assy, right door
Windshield plate
Interior cover assy
Side working light
Canopy option
Canopy assy
Bracket
Instrument box module
Instrument panel cpl
Electrical cpl
Armrest component
Driver platform assy
Engine system
Cooling system
4812268790 Radiator
Air intake system
Exhaust system
Fuel system
Engine assy
Engine Cummins 4BTAA3.9-C125 93kw
Motor starter assy
Valve cover
Oil dipstick assy
Fuel filter
Parts kit
Fuel pipe assy
Air compressor assy
Performance parts
Engine hood assy
Engine hood To 0C003219
Engine hood From 0C003220
Locking device
Front suspension
4812266314 Brake
Hub
Sub-assembly
Wheel
4812266327 Tire
Hub-cap assy
Front suspension From 0C002472
Front suspension From 0C003220
Front scraper assy
Scraper bracket module To 0C003219
Bracket assy
Scraper mount To 0C002471
Scraper mount From 0C002472
Rear suspension
Inside Wheel
Rear scraper assy
Scraper bracket module From 0C003220
Rear chain cover
Left cover
Right cover
Adjusting mechanism
Cover
Hydraulic system
Oil tank
Steering system
Steering Valve Assy
Steering cylinder assy
Fan drive system
Fan drive motor assy
Fan drive motor assy
Return block assy
Fan drive control valve
Hydraulic system
Pump assy
4812266042 Pump
Flange
Propulsion motor assy
4812266043 Hydraulic motor
Flange
Brake relief valve
Brake system
Connection block
Air tank assy
Air cylinder assy
Brake valve assy
Brake valve assy
Brake valve assy
Shuttle valve assy
Holder assy
Electric cables, power supply
Battery disconnector kit
Battery cable From 0C002475
Frame cable harness
Back-up alarm module
Horn assembly
Bulb 21W
ECU module
Lightings
Driving lights, front RH
Driving lights, front LH
Driving lights, rear LH
Driving lights, rear RH
Electrical accessory
Decals
4812265895 Ballast assy, 27T
4812265932 Ballast assy, 30T
4812265855 Hollow ballast assy
4812266670 Air on the run
Oil spray system
Oil tank Assy
Oil pump assembly
Cover assembly
Front support assembly
Rear support assembly
Bracket assembly
Bracket assembly
Oil spray unit
Oil spray electric system (Kit)
Air conditioning
Compressor module To 0C004279
Compressor module From 0C004280
Condensor module
Evaporator module
Hose kit AC
Heater module
1
2
3
4
5
6
7
8
9
9
10
10
11

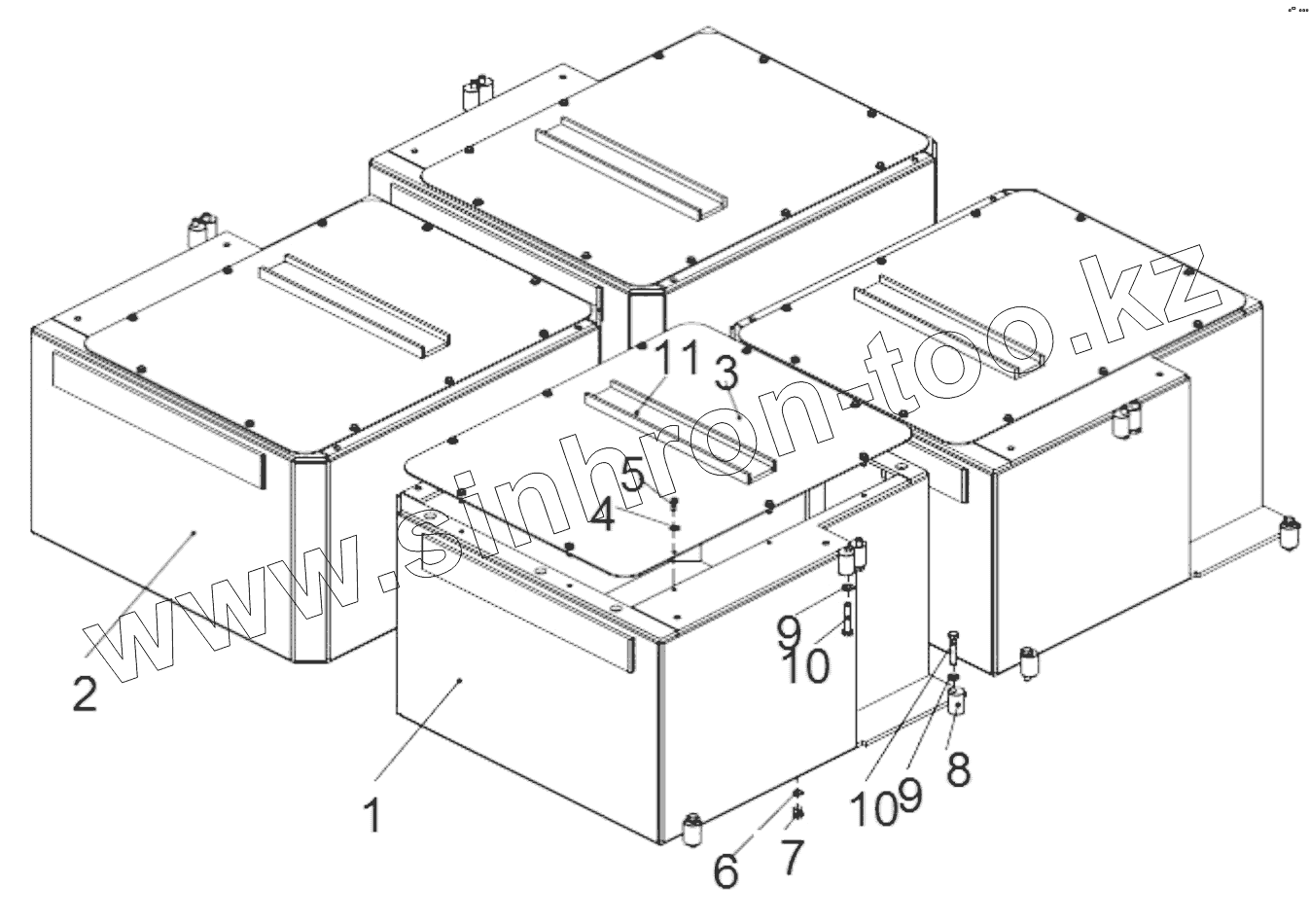

Позиция на иллюстрации
Заводской номер детали
Название детали
1
4812265856
Hollow ballast
2
4812265857
Hollow ballast
3
4812265858
Cover
4
4700904230
Washer
5
4700500028
Screw
6
4812268473
Stop pin
7
0686424100
Steel plug threaded
8
4812268473
Stop pin
9
4700904232
Steel plain washer
10
4700500135
Hex screw
11
4812265891
Stop blcok
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
