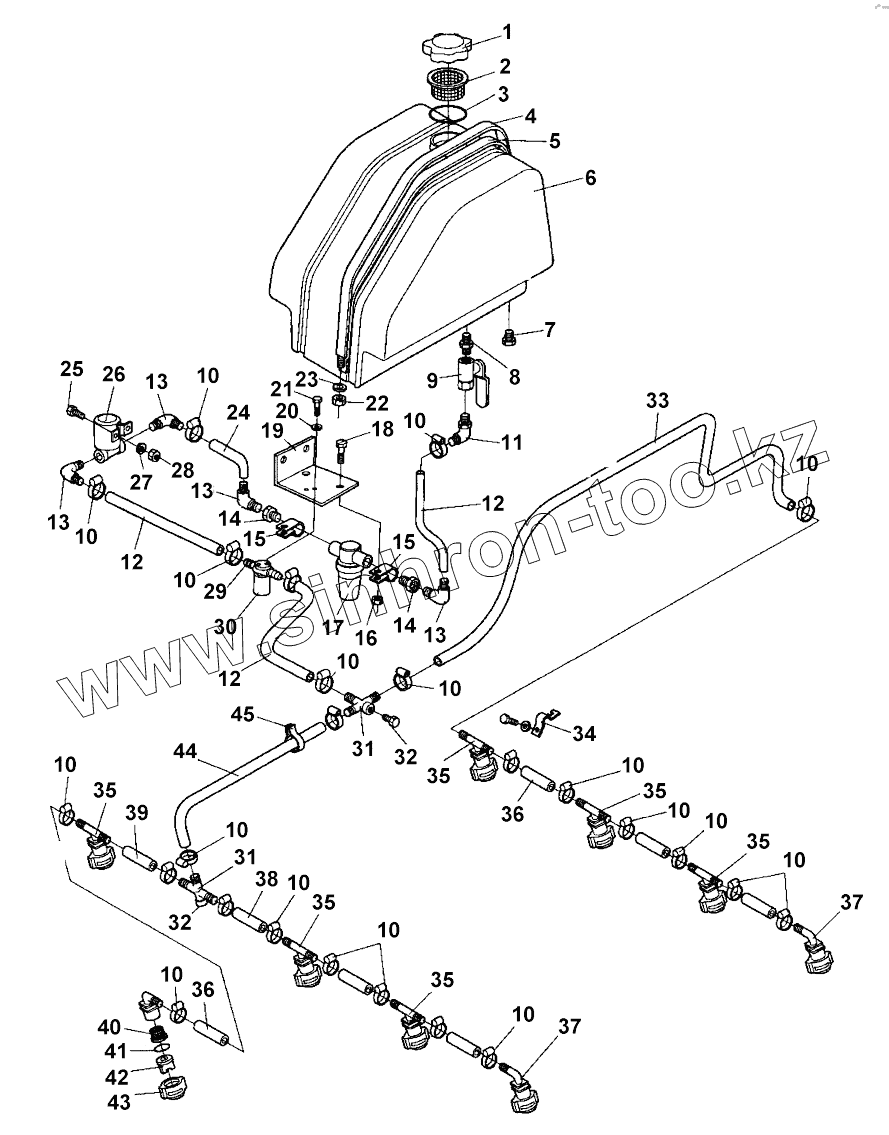

Каталог запасных частей к технике: DYNAPAC CP142. Sprinkler system one pump

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
11
12
12
12
13
13
13
13
13
13
13
13
13
13
14
14
15
15
15
15
15
15
16
17
17
17
17
17
17
17
17
17
18
19
19
19
19
20
21
22
23
24
25
26
27
28
29
30
31
31
32
32
33
34
35
35
35
35
35
35
36
36
37
37
38
39
40
41
42
43
44
45
Позиция на иллюстрации Заводской номер детали Название детали
1 4700333228 Cap
2 4700358846 Strainer
3 4700194093 O-ring
4 4700193571 Clamp
5 4700297018 Rubber strip
6 4700193472 Tank
7 4700813422 Plug
8 4700375569 Nipple
9 4700904501 Ball valve
10 4700313002 Hose clamp
11 4700904502 Connection
12 4700244054 Hose reinforced
13 4700923734 Hose connection
13 4700904926 Hose connector
14 4700248491 Reducing nipple
15 4700927568 Clamp
15 4700374584 Spacer
16 4700570004 Hex. nut
17 4700248513 Water filter
17 4700393272 Water filter
17 4700500189 Screw
18 4700500075 Screw,
19 4700380784 Bracket
19 4700199475 Bracket
20 4700904698 Steel plain washer
21 4700500002 Screw
22 4700506019 Lock nut
23 4700904231 Washer
24 4700244054 Hose reinforced
25 4700500075 Screw,
26 4700383697 Water pump
27 4700904228 Steel plain washer
28 4700570004 Hex. nut
29 4700901432 Hose connection
30 4700287713 Solenoid valve
31 4700194088 Tee-connector
32 4700194087 Plug
33 4700244054 Hose reinforced
34 4700194018 Bracket
35 4700194085 Sprinkler
36 4700244054 Hose reinforced
37 4700901175 Nozzle body
38 4700244054 Hose reinforced
39 4700244054 Hose reinforced
40 4700903541 Strainer with valve
41 4700904116 Gasket
42 4700923679 Nozzle
43 4700923681 Quick coupling, black
44 4700244054 Hose reinforced
45 4700313041 Cable tie
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
