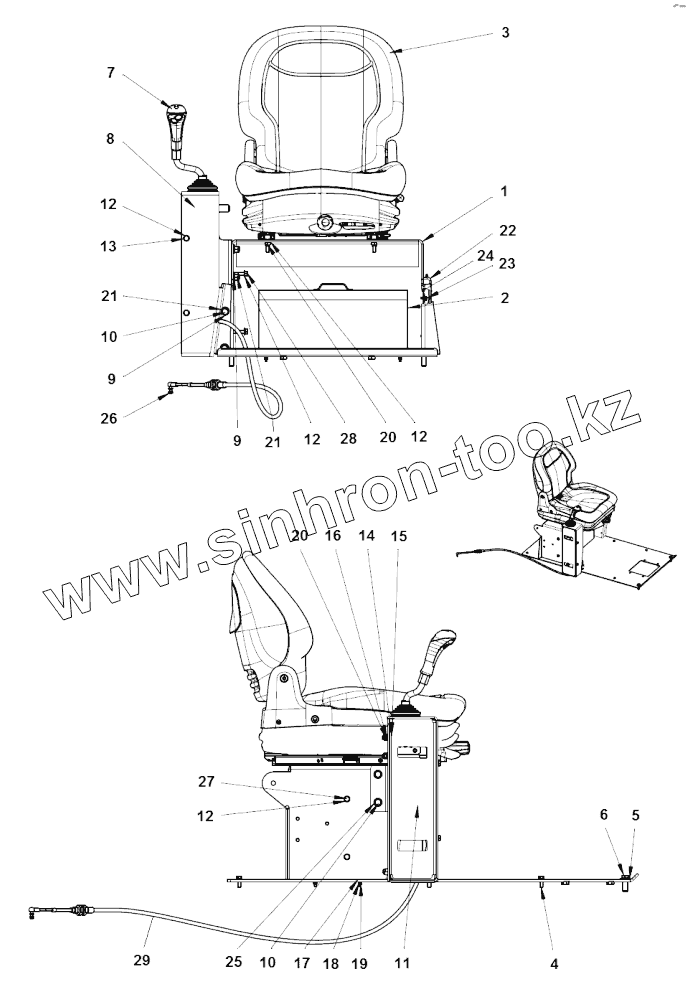

Каталог запасных частей к технике: DYNAPAC CP142. Drivers seat
1
2
3
4
5
6
7
8
9
9
10
10
11
12
12
12
12
13
14
15
16
17
18
19
20
20
21
21
22
23
24
25
26
27
28
29
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4700170591 | Floor assy | |
| 2 | 4700193736 | Tool box | |
| 3 | 4700377518 | Drivers seat, cpl | |
| 4 | 4700500505 | Screw | |
| 5 | 4700904231 | Washer | |
| 6 | 4700500037 | Hex. screw | |
| 7 | Controlhandle | Forward and reverse control handle | |
| 8 | 4700170657 | Bracket | |
| 9 | 4700904230 | Washer | |
| 10 | 4700500029 | Hex. screw | |
| 11 | 4700170601 | Cover | |
| 12 | 4700904229 | Washer | |
| 13 | 4700500021 | Hex. screw | |
| 14 | 4700904556 | Steel plain washer | |
| 15 | 4700508019 | Cylinder screw | |
| 16 | 4700904228 | Steel plain washer | |
| 17 | 4700904281 | Washer | |
| 18 | 4700500060 | Screw | |
| 19 | 4700586001 | Lock nut | |
| 20 | 4700586003 | Hexagon lock nut | |
| 21 | 4700586018 | Lock nut | |
| 22 | 4700383705 | Instruction manual box | |
| 23 | 4700791226 | Screw | |
| 24 | 4700357643 | Wire | |
| 25 | 4700904557 | Washer | |
| 26 | 4700573003 | Nut | |
| 27 | 4700500023 | Screw | |
| 28 | 4700570005 | Hex. nut | |
| 29 | 4700377024 | Cable Forward/Reverse |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
