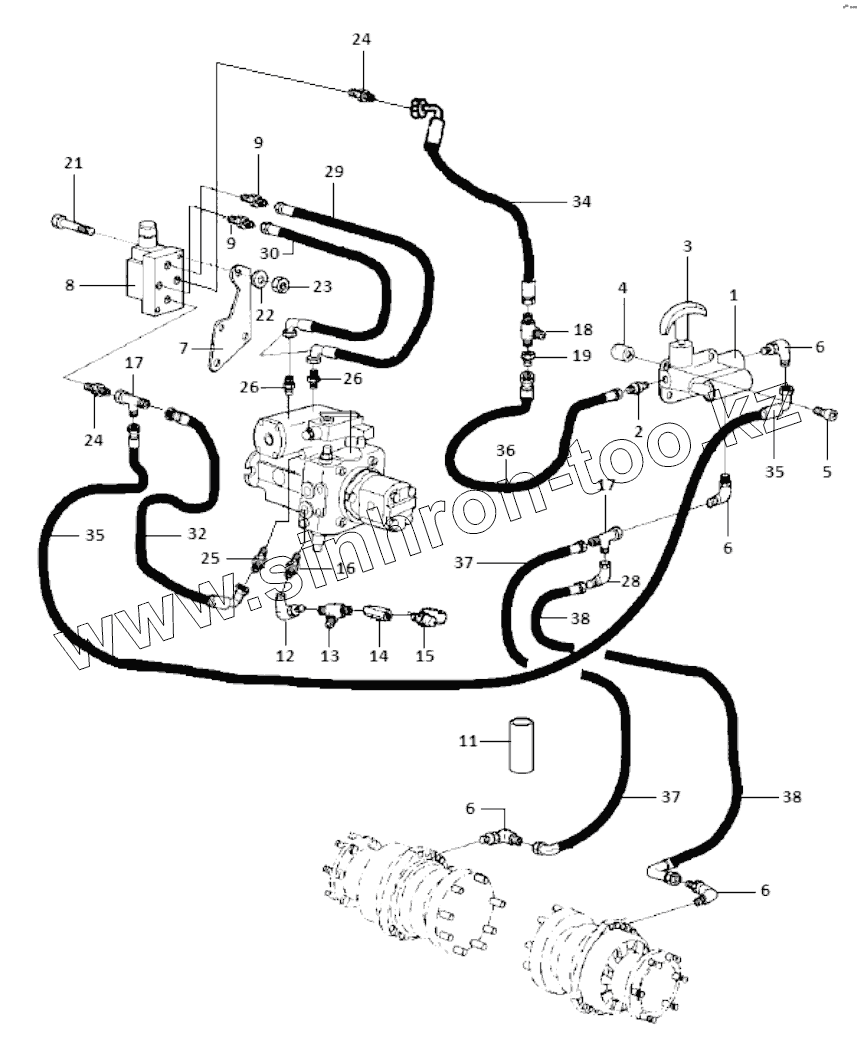

Каталог запасных частей к технике: DYNAPAC CP142. Brake system
1
2
3
4
5
6
6
6
6
7
8
9
9
11
12
13
14
15
16
17
17
18
19
21
22
23
24
24
25
26
26
28
29
30
32
34
35
35
36
37
37
38
38
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4700415329 | Hydraulic hand pump | |
| 2 | 4700334143 | Straight connector | |
| 3 | 4700193790 | Support | |
| 4 | 4700348659 | Spacer | |
| 5 | 4700508074 | Screw | |
| 6 | 4700334445 | Elbow | |
| 7 | 4700170600 | Bracket | |
| 8 | 4700260761 | Solenoid valve | |
| 9 | 4700234349 | Straight connector | |
| 11 | 4700903082 | Hose shield | |
| 12 | 4700334524 | Connector | |
| 13 | 4700334234 | Tee-connector | |
| 14 | 433830401 | Connector | |
| 15 | 4700910161 | Measuring nipple | |
| 16 | 4700924731 | Connector | |
| 17 | 4700334135 | Tee-connector | |
| 18 | 4700923294 | Tee-connector | |
| 19 | 4700334264 | Reducing | |
| 21 | 4700500079 | Screw | |
| 22 | 4700904228 | Steel plain washer | |
| 23 | 4700570004 | Hex. nut | |
| 24 | 4700234457 | Straight connector | |
| 25 | 4700234843 | Adapter | |
| 26 | 4700334232 | Straight connector | |
| 28 | 4700334197 | Connector elbow 90 JIC | |
| 29 | 4700482543 | Hydraulic hose | |
| 30 | 4700482399 | Hydraulic hose | |
| 32 | 4700482167 | Hydraulic hose | |
| 34 | 4700482306 | Hydraulic hose | |
| 35 | 4700482306 | Hydraulic hose | |
| 36 | 4700281628 | Hydraulic hose | |
| 37 | 4700482306 | Hydraulic hose | |
| 38 | 4700482306 | Hydraulic hose |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
