1
2
2
3
4
5
5
5
5
6
6
7
8

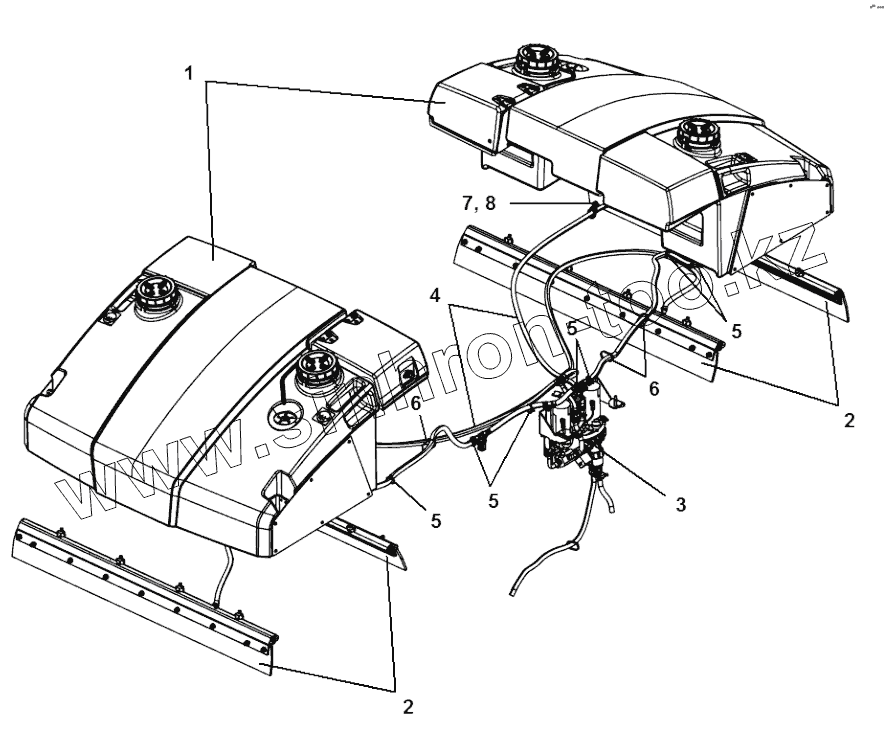

Позиция на иллюстрации
Заводской номер детали
Название детали
1
Sprinklertankmodule
Sprinkler tank module
2
Scrapermodule,withnozzles
Scraper module, with nozzles
3
Sprinklerpumpmodule
Sprinkler pump module, emulsion
4
Sprinklerhoses
Sprinkler hoses
5
4700792441
Cable tie with holder
6
4700313102
Cable ties
7
4700904229
Washer
8
4700500020
Hex. screw
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
