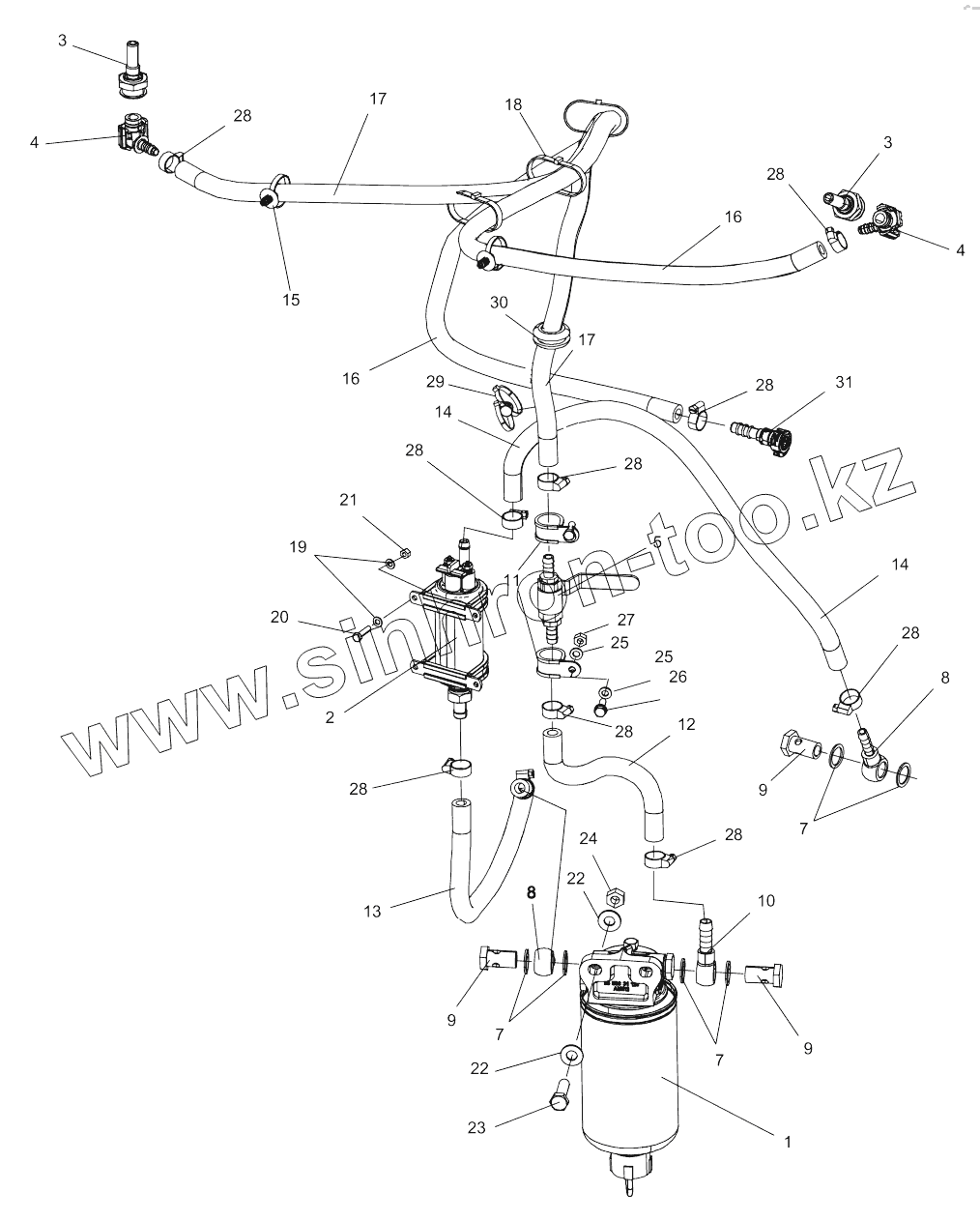

Каталог запасных частей к технике: DYNAPAC CG2300. Fuel hose system
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
CA1400 (2016)
CA2500D (2016)
CA2500D (2018)
CA2500D-PD (2018)
CA250D (2011)
CA252D (2008)
CA2800D (2017)
CA3500D (2016)
CA4000D (2017)
CA4000D (2020)
CA4600D (2019)
CA5500D (2015)
CA610PD (2014)
CA6500 (2018)
CC1000 (2019)
CC1100CC (2015)
CC1200C Plus (2015)
CC1200C VI (2018)
CC1200CC (2018)
CC125 (2015)
CC1250 (2015)
CC1300 (2018)
CC1300C (2015)
CC1300C (2016)
CC2200 (2018)
CC2200 (2020)
CC2300C (2018)
CC3300 (2018)
CC4000 VI (2018)
CC4200C VI (2020)
CC5200C (2018)
CC6200 VI (2020)
CC800 (2019)
CC900 (2018)
CC900S (2018)
CG2300 (2018)
CP142 (2015)
CP275 (2014)
Dynapac CA1500 (2017)
Dynapac CA2500 (2012)
Dynapac CA302D (2008)
Dynapac CA302D (2010)
Dynapac CA5000D (2017)
Dynapac CC142 (2009)
Dynapac CC2200C (2015)
Dynapac CC224HF (2012)
Dynapac CC322 (2008)
Dynapac CC422 (2010)
Dynapac CC5200 (2014)
Dynapac CC5200 (2017)
Dynapac CC5200 (2017)
Dynapac CC5200 VI (2017)
Dynapac CC800 (2013)
Dynapac CC800 (2014)
Dynapac F1200C/CS (2018)
Dynapac F1200CS/CS (2018)
Dynapac F1800C (2018)
Dynapac F181C (2010)
Dynapac PL2000LS (2010)
Dynapac PL2000LS (2010)
Dynapac PL2000S (2010)
Dynapac PL2000S (2010)
Dynapac SCC1300 (2014)
Dynapac SD2500C (ч. 1) (2018)
Dynapac SD2500C (ч. 2) (2018)
Dynapac SD2550C (ч. 1) (2018)
Dynapac SD2550C (ч. 2) (2018)
F2500C (2018)
SD2550CS (2015)
Схема
>
Не выбрано
Service kits
4812159980 Service kit,50h Plus
4812159381 Service kit, 500h
4812159382 Service kit, 500h Plus
4812159981 Service kit, 1000h
4812159982 Service kit, 1000h Plus
4812159983 Start up kit
Keys
Fuses
Frame module
4812119175 Holder
Engine structure module
Service cover
4812119462 Engine cover, left
4812119463 Engine cover, right
Front and Rear ending
Yoke module
Yoke assy
Yoke module, chip spreader rear
Yoke assy, chip spreader rear
Fork
Bracket module
4700394340 Scraper bracket, cpl
Grab handle, release
Scraper module, with nozzles
Scraper assy with nozzles
Scraper assy
Grab handle, lift
Step, vibration side
Sprinkler system
Sprinkler tank module
Sprinkler tank mount
Cover assembly
4812119100 Water tank, cpl
Sprinkler pump module
Sprinkler pump mounted
Sprinkler hoses
Drum
Split drum module
Propulsion motor module
Drive unit, cpl
4700392523 Gear box
4700395922 Hydraulic motor
Vibration motor module
Vibrating unit
4700390605 Hydraulic motor
Motor
Vibration motor module
Vibrating unit
Engine mount
Engine module
Diesel engine Deutz TD3.6 55kW
Clutch module
Exhaust pipe, mount
Combustion air system
Hose kit
Air cleaner module
Expansion tank system
Expansion tank assembly
Hose kit
Water cooler system
Water cooler module
Cooler package
Hose kit, water cooler
Fan module
4812116231 Hydraulic motor
Fuel system
Fuel hose system
Hydraulic drum drive and vibration front
Hydraulic drum drive and vibration rear
Hydraulic block
Propulsion and brake system
Hydraulic valve module
4812119701 Hydraulic valve
4812120841 Hydraulic valve
Flow divider module
Hydraulic pump module
Hydraulic block
Hydraulics fan drive and return system
Hydraulic vibration system
Steering system, main valve
Hydraulic cylinder module
Hydraulic cylinder module, with sensor
Steering valve module
Connector kit, hydraulic tank
Hydraulic filter, main valve
Electrical equipment
Sensors, Back-up alarm
Back-up alarm module
Back-up alarm assy
Power converter module
Standard ECU module
Standard ECU assembly
Horn module
Horn assy
Battery module
Battery disconnector module
Battery disconnector, cpl
Working lights
Rotating beacon, Working lights Cab
Rotating beacon module
Holder module, Rotating beacon
Driving lights
Driving lights, front
Driving lights, rear
Switch module
DCA/GPS, Asphalt temp meter
Cable harness kit, GPS
Cable and Gateway
GPS/DCA equipment assy
Temp sensor module
Computer with holder
Tachograph, Car stereo
Tachograph with holder
Car stereo module 12V
Cab module
Cab assembly
4812119363 Cab symmetric Comfort
Floor mat and right side panel
Screen front and rear
Corner screens left and AC hood
24V socket and air nozzels
Wipers front/rear and front ceiling
Cab frame harness
Interior Cab
Heating installation
Evaporator AC-ACC
4812113623 Evaporator, cpl
ACC kit
4812113624 ACC kit
Door and side sliding screens
Door cpl left
Door ass. left
Window ass. left
Window cpl right
Window ass. right
Corner screens right
Lower screen and water system, left
Manual box
Decals basic kit
Seat frame module
Seat frame assy
Seat frame adapter module
Floor cassette module
Carrier
Seat, fabric suspensioned
Arm rest module
Seat belt 2" with reminder
Seat belt 3" with reminder
Control module
Control mount
Forward reverse control module
Drive control
Steering wheel module
Steering wheel assy
Display unit
Cover module
Process mirror
Plain Dynapac decals, kit
Air conditioning
Condensor module
Condensor
AC-ACC, Hose kit
Hose kit
Compressor module
Compressor assembly
Chip spreader
Chip spreader, mount
Bracket module
Hydraulic valve module
Hydraulic hoses
Hydralic hoses
Driving lights assy
Edge cutter
Edge cutter, module
Right edge cutter, cpl
Left edge cutter, cpl
Pressing roller, module
Hydraulic valve, mount
Disc/Roller holder
Cutting disc, module
DynaLink module
4812013038 GPS module
Dyn@lyzer
DCM Compaction meter with Evib
1
1
2
3
3
4
4
5
7
7
7
8
8
9
9
9
10
11
12
13
14
14
15
16
16
17
17
18
19
20
21
22
22
23
24
25
25
26
27
28
28
28
28
28
28
28
28
28
29
30
31
Позиция на иллюстрации
Заводской номер детали
Название детали
1
4812159376
Fuel pre-filter element
1
4812114009
Fuel pre-filter
2
4812114065
Electrical fuel pump
3
4812119095
Quick coupling
4
4700792547
Quick connect coupling
5
4812119647
Ball valve
7
4700330331
Washer
8
4811000463
Banjo coupling
9
4700234928
Hollow screw
10
4700234927
Banjo coupling
11
4700921028
Pipe clamp
12
4700904985
Fuel hose, fire-resistant
13
4700904986
Fuel hose, fire-resistant
14
4700904985
Fuel hose, fire-resistant
15
4700792441
Cable tie with holder
16
4700904985
Fuel hose, fire-resistant
17
4700904985
Fuel hose, fire-resistant
18
4700313102
Cable ties
19
4700904281
Washer
20
4700500060
Screw
21
4700570003
Hex. nut
22
4700904230
Washer
23
4700500030
Hexagon head screw
24
4700570006
Hex. nut
25
4700904228
Steel plain washer
26
4700500040
Screw
27
4700570004
Hex. nut
28
4700313002
Hose clamp
29
4700792686
Cable tie with holder
30
4700903192
Grommet
31
4812121689
Quick coupling
