Каталог запасных частей к технике: DYNAPAC CG2300. Exhaust pipe, mount

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CA1400 (2016) CA2500D (2016) CA2500D (2018) CA2500D-PD (2018) CA250D (2011) CA252D (2008) CA2800D (2017) CA3500D (2016) CA4000D (2017) CA4000D (2020) CA4600D (2019) CA5500D (2015) CA610PD (2014) CA6500 (2018) CC1000 (2019) CC1100CC (2015) CC1200C Plus (2015) CC1200C VI (2018) CC1200CC (2018) CC125 (2015) CC1250 (2015) CC1300 (2018) CC1300C (2015) CC1300C (2016) CC2200 (2018) CC2200 (2020) CC2300C (2018) CC3300 (2018) CC4000 VI (2018) CC4200C VI (2020) CC5200C (2018) CC6200 VI (2020) CC800 (2019) CC900 (2018) CC900S (2018) CG2300 (2018) CP142 (2015) CP275 (2014) Dynapac CA1500 (2017) Dynapac CA2500 (2012) Dynapac CA302D (2008) Dynapac CA302D (2010) Dynapac CA5000D (2017) Dynapac CC142 (2009) Dynapac CC2200C (2015) Dynapac CC224HF (2012) Dynapac CC322 (2008) Dynapac CC422 (2010) Dynapac CC5200 (2014) Dynapac CC5200 (2017) Dynapac CC5200 (2017) Dynapac CC5200 VI (2017) Dynapac CC800 (2013) Dynapac CC800 (2014) Dynapac F1200C/CS (2018) Dynapac F1200CS/CS (2018) Dynapac F1800C (2018) Dynapac F181C (2010) Dynapac PL2000LS (2010) Dynapac PL2000LS (2010) Dynapac PL2000S (2010) Dynapac PL2000S (2010) Dynapac SCC1300 (2014) Dynapac SD2500C (ч. 1) (2018) Dynapac SD2500C (ч. 2) (2018) Dynapac SD2550C (ч. 1) (2018) Dynapac SD2550C (ч. 2) (2018) F2500C (2018) SD2550CS (2015)

Схема > Не выбрано Service kits 4812159980 Service kit,50h Plus 4812159381 Service kit, 500h 4812159382 Service kit, 500h Plus 4812159981 Service kit, 1000h 4812159982 Service kit, 1000h Plus 4812159983 Start up kit Keys Fuses Frame module 4812119175 Holder Engine structure module Service cover 4812119462 Engine cover, left 4812119463 Engine cover, right Front and Rear ending Yoke module Yoke assy Yoke module, chip spreader rear Yoke assy, chip spreader rear Fork Bracket module 4700394340 Scraper bracket, cpl Grab handle, release Scraper module, with nozzles Scraper assy with nozzles Scraper assy Grab handle, lift Step, vibration side Sprinkler system Sprinkler tank module Sprinkler tank mount Cover assembly 4812119100 Water tank, cpl Sprinkler pump module Sprinkler pump mounted Sprinkler hoses Drum Split drum module Propulsion motor module Drive unit, cpl 4700392523 Gear box 4700395922 Hydraulic motor Vibration motor module Vibrating unit 4700390605 Hydraulic motor Motor Vibration motor module Vibrating unit Engine mount Engine module Diesel engine Deutz TD3.6 55kW Clutch module Exhaust pipe, mount Combustion air system Hose kit Air cleaner module Expansion tank system Expansion tank assembly Hose kit Water cooler system Water cooler module Cooler package Hose kit, water cooler Fan module 4812116231 Hydraulic motor Fuel system Fuel hose system Hydraulic drum drive and vibration front Hydraulic drum drive and vibration rear Hydraulic block Propulsion and brake system Hydraulic valve module 4812119701 Hydraulic valve 4812120841 Hydraulic valve Flow divider module Hydraulic pump module Hydraulic block Hydraulics fan drive and return system Hydraulic vibration system Steering system, main valve Hydraulic cylinder module Hydraulic cylinder module, with sensor Steering valve module Connector kit, hydraulic tank Hydraulic filter, main valve Electrical equipment Sensors, Back-up alarm Back-up alarm module Back-up alarm assy Power converter module Standard ECU module Standard ECU assembly Horn module Horn assy Battery module Battery disconnector module Battery disconnector, cpl Working lights Rotating beacon, Working lights Cab Rotating beacon module Holder module, Rotating beacon Driving lights Driving lights, front Driving lights, rear Switch module DCA/GPS, Asphalt temp meter Cable harness kit, GPS Cable and Gateway GPS/DCA equipment assy Temp sensor module Computer with holder Tachograph, Car stereo Tachograph with holder Car stereo module 12V Cab module Cab assembly 4812119363 Cab symmetric Comfort Floor mat and right side panel Screen front and rear Corner screens left and AC hood 24V socket and air nozzels Wipers front/rear and front ceiling Cab frame harness Interior Cab Heating installation Evaporator AC-ACC 4812113623 Evaporator, cpl ACC kit 4812113624 ACC kit Door and side sliding screens Door cpl left Door ass. left Window ass. left Window cpl right Window ass. right Corner screens right Lower screen and water system, left Manual box Decals basic kit Seat frame module Seat frame assy Seat frame adapter module Floor cassette module Carrier Seat, fabric suspensioned Arm rest module Seat belt 2" with reminder Seat belt 3" with reminder Control module Control mount Forward reverse control module Drive control Steering wheel module Steering wheel assy Display unit Cover module Process mirror Plain Dynapac decals, kit Air conditioning Condensor module Condensor AC-ACC, Hose kit Hose kit Compressor module Compressor assembly Chip spreader Chip spreader, mount Bracket module Hydraulic valve module Hydraulic hoses Hydralic hoses Driving lights assy Edge cutter Edge cutter, module Right edge cutter, cpl Left edge cutter, cpl Pressing roller, module Hydraulic valve, mount Disc/Roller holder Cutting disc, module DynaLink module 4812013038 GPS module Dyn@lyzer DCM Compaction meter with Evib

1

2

3

4

5

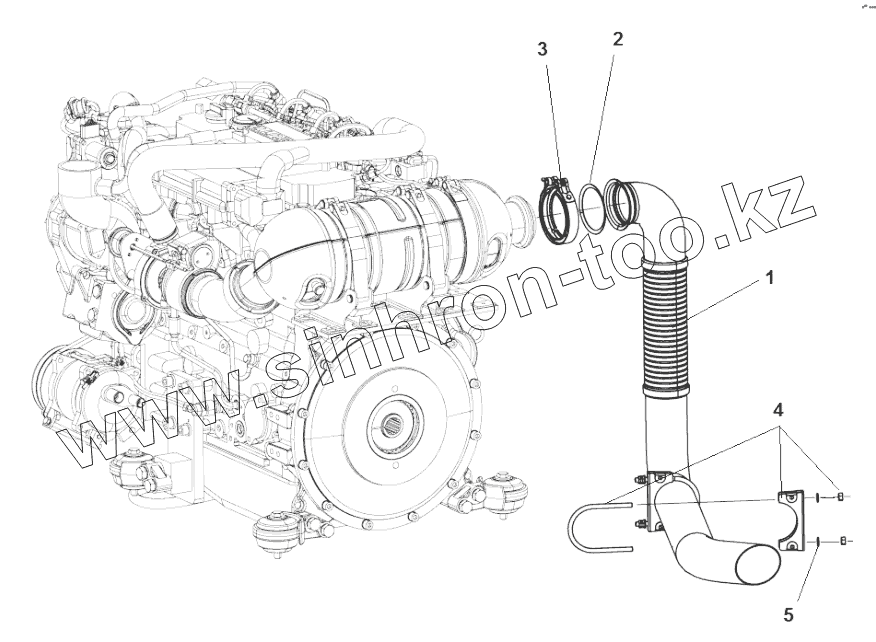

Позиция на иллюстрации	Заводской номер детали		Название детали
1	4812118979		Exhaust pipe
2	4812115600		Gasket
3	4812115908		V-band clamp
4	4811000481		Pipe clamp
5	4700904229		Washer

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
