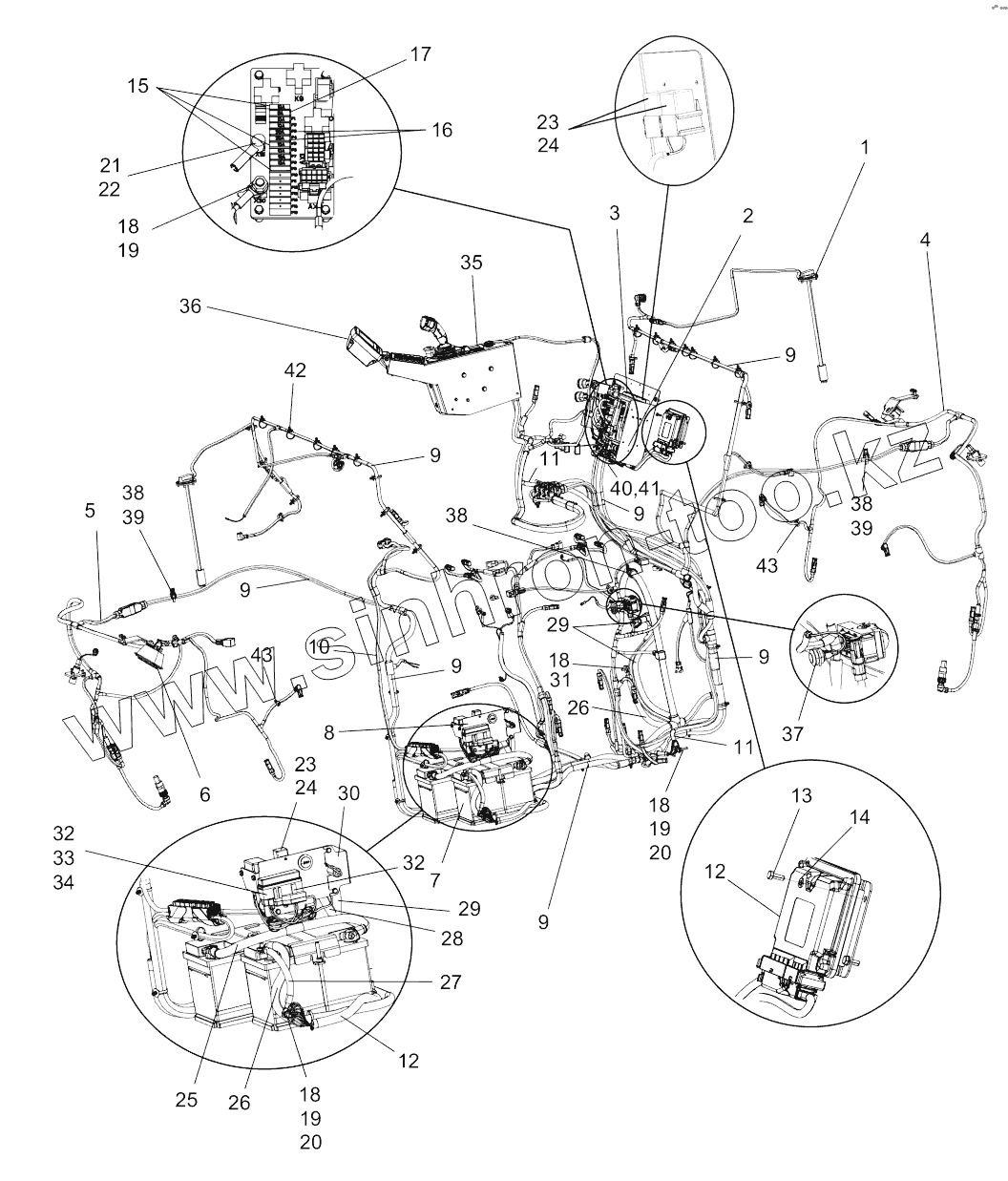

Каталог запасных частей к технике: DYNAPAC CG2300. Electrical equipment
1
2
3
4
5
6
7
8
9
9
9
9
9
9
9
10
11
11
12
12
13
14
15
16
17
18
18
18
18
19
19
19
20
20
21
22
23
23
24
24
25
26
26
27
28
29
29
30
31
32
32
33
34
35
36
37
38
38
38
39
39
40
41
42
43
43
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | Sensors,Back-upalarm | Sensors, Back-up alarm | |
| 2 | Powerconverter | Power converter module | |
| 3 | ECUstdmodule | ECU std module | |
| 4 | 4812119031 | Wiring harness, rear | |
| 5 | 4812119030 | Wiring harness, front | |
| 6 | Hornmodule | Horn module | |
| 7 | Batterymodule | Battery module | |
| 8 | Batterydisconnector,module | Battery disconnector, module | |
| 9 | 4812118898 | Wiring harness, main | |
| 10 | 4812111241 | Cable harness | |
| 11 | 4812119148 | Connection cable coarse | |
| 12 | 4812119355 | Control unit | |
| 13 | 4700904228 | Steel plain washer | |
| 14 | 4700500013 | Hex. screw | |
| 15 | 4700901227 | Fuse | |
| 16 | 4700903741 | Fuse | |
| 17 | 4700901225 | Fuse | |
| 18 | 4700904229 | Washer | |
| 19 | 4700570005 | Hex. nut | |
| 20 | 0248998073 | Threaded stud | |
| 21 | 4700904698 | Steel plain washer | |
| 22 | 4700570002 | Nut | |
| 23 | 4700792422 | Relay | |
| 24 | 4700792210 | Screw torx | |
| 25 | 4812119149 | Battery cable | |
| 26 | 4812119150 | Battery cable | |
| 27 | 4700791525 | Connection cable coarse | |
| 28 | 4812119151 | Battery cable | |
| 29 | 4812119152 | Connection cable coarse | |
| 30 | 4812120642 | Cover | |
| 31 | 4700500053 | Hex. screw | |
| 32 | 4700904037 | Fuse | |
| 33 | 4700904039 | Fuse | |
| 34 | 4700791450 | Fuse | |
| 35 | Drivecontrol | Drive control | |
| 36 | Displayunit | Display unit | |
| 37 | 4812120688 | Push button | |
| 38 | 4812117665 | Cable tie with holder | |
| 39 | 4700902989 | Hexagon screw with flange | |
| 40 | 4700791597 | Rubber strip | |
| 41 | 4700791597 | Rubber strip | |
| 42 | 4700792441 | Cable tie with holder | |
| 43 | 4812115911 | Cable tie with holder |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
