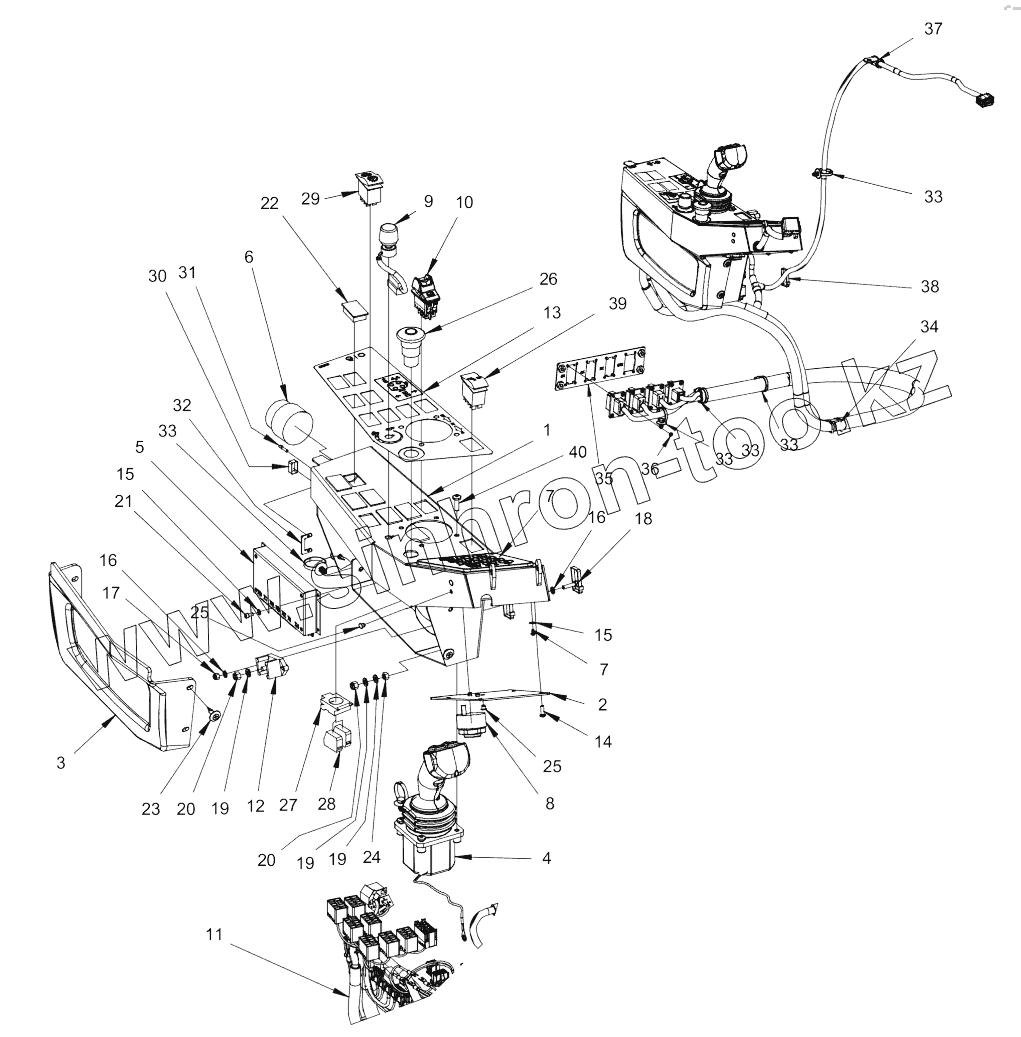

Каталог запасных частей к технике: DYNAPAC CG2300. Drive control
1
2
3
4
4
5
6
6
7
7
8
9
10
11
12
13
14
15
15
16
16
17
18
19
19
19
20
20
21
22
23
24
25
25
26
27
28
29
30
31
32
33
33
33
33
33
34
35
36
37
38
39
40
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4812120077 | Control box | |
| 2 | 4700391396 | Cover | |
| 3 | 4700396662 | Cover | |
| 4 | 4812126248 | Control handle, 4 switches | |
| 4 | 4812126247 | Control handle, 6 switches | |
| 5 | 4812113875 | Control unit | |
| 6 | 4812110901 | Ignition switch | |
| 6 | 4700940451 | Ignition key | |
| 7 | 4812121044 | Membrane switch panel | |
| 8 | 4700385599 | Buzzer | |
| 9 | 4700388737 | Potentiometer | |
| 10 | 4812118697 | Switch, parking brake | |
| 11 | 4812119013 | Wiring Harness | |
| 12 | 4700392930 | Junction box | |
| 13 | 4812126794 | Decal, Information | |
| 14 | 4700526010 | Thread rolling screw | |
| 15 | 4700904698 | Steel plain washer | |
| 16 | 4700904281 | Washer | |
| 17 | 4700586001 | Lock nut | |
| 18 | 4700500060 | Screw | |
| 19 | 4700904228 | Steel plain washer | |
| 20 | 4700586002 | Lock nut | |
| 21 | 4700508017 | Cylinder screw | |
| 22 | 4700791588 | Panel plug | |
| 23 | 4700395785 | Expansion rivet | |
| 24 | 4700570004 | Hex. nut | |
| 25 | 4700902804 | Plug | |
| 26 | 4700791739 | Emergency stop | |
| 27 | 4700791733 | Fixing collar | |
| 28 | 4700791723 | Connector N/C | |
| 29 | 4812115810 | Switch, displacement shift | |
| 30 | 4812114214 | Cover | |
| 31 | 4812114213 | Lock screw | |
| 32 | 4812119317 | Holder | |
| 33 | 4700792441 | Cable tie with holder | |
| 34 | 4700792609 | Cable ties | |
| 35 | 4812121460 | Connector.holder | |
| 36 | 4700791709 | Blind rivet | |
| 37 | 4700921072 | Clamp | |
| 38 | 4700313041 | Cable tie | |
| 39 | 4812117490 | Switch, green ECO | |
| 40 | 4700904650 | Button head socket screw |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
