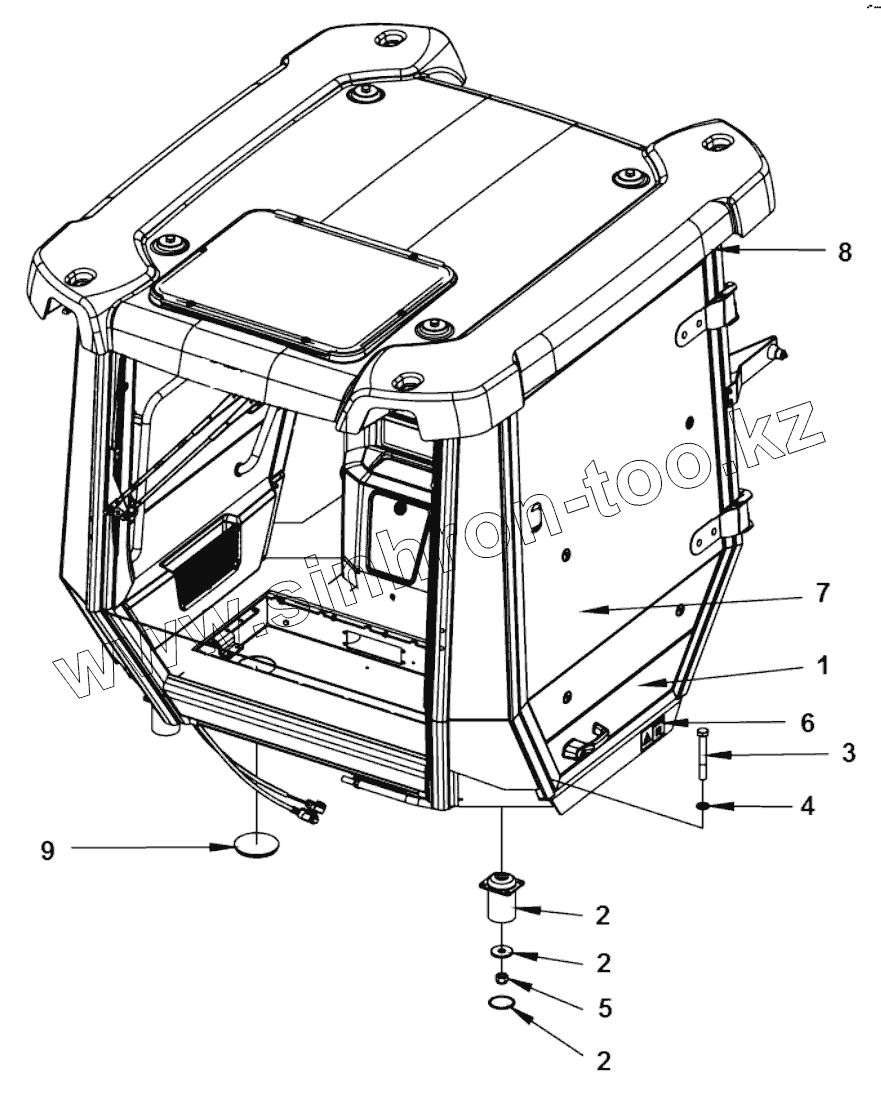

Позиция на иллюстрации
Заводской номер детали
Название детали
1
4812119363
Cab symmetric Comfort
2
4812121000
Shock absorber Green
3
4700903633
Screw
4
4700904233
Steel plain washer
5
4700901145
Lock nut
6
4700903459
Decal SAFETY
7
Manualbox
Manual box
8
Decalsbasickit
Decals basic kit
9
4700379992
Plug
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
