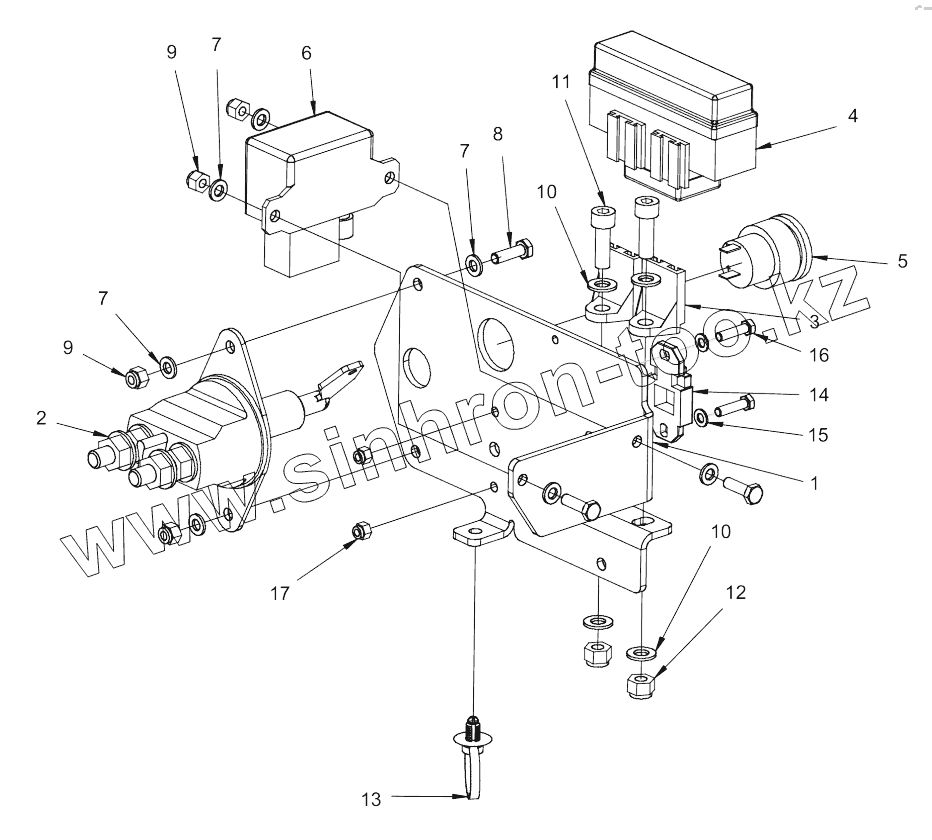

Позиция на иллюстрации
Заводской номер детали
Название детали
1
4812119080
Holder
2
4700903640
Battery switch
2
4700903641
Key
3
4812112000
Fuse holder
4
4812111981
Fuse holder
5
4700395816
Plug socket
6
4700792310
Relay
7
4700904228
Steel plain washer
8
4700500040
Screw
9
4700586002
Lock nut
10
4700904229
Washer
11
4700508019
Cylinder screw
12
4700586003
Hexagon lock nut
13
4700792441
Cable tie with holder
14
4700904036
Fuse holder
15
4700904281
Washer
16
4700500060
Screw
17
4700586001
Lock nut
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
