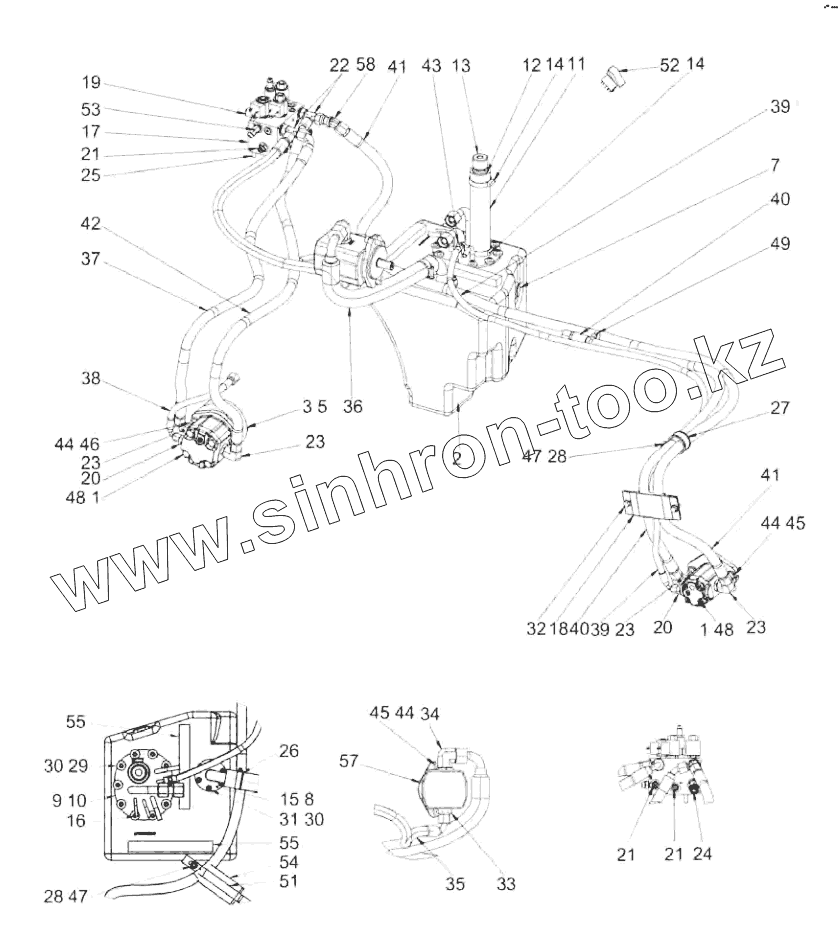

Каталог запасных частей к технике: DYNAPAC CC900S. Hydraulic vibration
1
1
2
3
5
7
8
9
10
11
12
13
14
14
15
16
17
18
19
20
20
21
21
21
22
23
23
23
23
24
25
26
27
28
28
29
30
30
31
32
33
34
35
36
37
38
39
39
40
40
41
41
42
43
44
44
44
45
45
46
47
47
48
48
49
51
52
53
54
55
55
57
58
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4812118170 | Hydraulic motor | |
| 2 | 4700387278 | Hydraulic oil tank | |
| 3 | 4700390176 | Adapter | |
| 5 | 4700379458 | Gasket | |
| 7 | 4700791395 | Sight plug | |
| 8 | 4700791794 | O-ring | |
| 9 | 4700792070 | O-ring | |
| 10 | 4700387713 | Return filler pipe | |
| 11 | 4700205067 | Rubber hose | |
| 12 | 4700357139 | Connector | |
| 13 | 4700357138 | Ventilating filter | |
| 14 | 4700313008 | Hose clamp | |
| 15 | 4700387758 | Suction pipe | |
| 16 | 4700389196 | Protective plug | |
| 17 | 4700387276 | Combination valve | |
| 18 | 4700388653 | Hose clamp | |
| 19 | 4700901157 | Measuring nipple | |
| 20 | 4700791541 | Straight connector | |
| 21 | 4700791538 | Straight connector | |
| 22 | 4700791700 | Tee-connector | |
| 23 | 4700791699 | Elbow 90° | |
| 24 | 4812121086 | Elbow 45 | |
| 25 | 4700508069 | Screw | |
| 26 | 4700313035 | Hose clamp | |
| 27 | 4700283711 | Hose clamp | |
| 28 | 4700904556 | Steel plain washer | |
| 29 | 4700904735 | Steel plain washer | |
| 30 | 4700508002 | Screw | |
| 31 | 4700904228 | Steel plain washer | |
| 32 | 4700500505 | Screw | |
| 33 | 4700791410 | Straight o-ring connector | |
| 34 | 4700791231 | Adapter | |
| 35 | 4812121431 | Hydraulic hose | |
| 36 | 4812121430 | Hydraulic hose | |
| 37 | 4812120211 | Hydraulic hose | |
| 38 | 4700483855 | Hydraulic hose | |
| 39 | 4700389401 | Hydraulic hose | |
| 40 | 4700483649 | Hydraulic hose | |
| 41 | 4700483668 | Hydraulic hose | |
| 42 | 4700483878 | Hydraulic hose | |
| 43 | 4700313108 | Hose clamp | |
| 44 | 4700904557 | Washer | |
| 45 | 4700508029 | Cylinder screw | |
| 46 | 4700508014 | Hexagon socket head cap screw | |
| 47 | 4700508019 | Cylinder screw | |
| 48 | 4700160032 | O-ring | |
| 49 | 4700313102 | Cable ties | |
| 51 | 4700379668 | Hose clamp | |
| 52 | 4700791581 | Switch | |
| 53 | 4700791543 | Elbow 45° | |
| 54 | 4700359606 | Rubber protection | |
| 55 | 4700202042 | Rubber strip | |
| 57 | 4812119959 | Hydraulic pump | |
| 57.1 | 4812161693 | Feather key | |
| 58 | 4700791837 | Elbow |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
