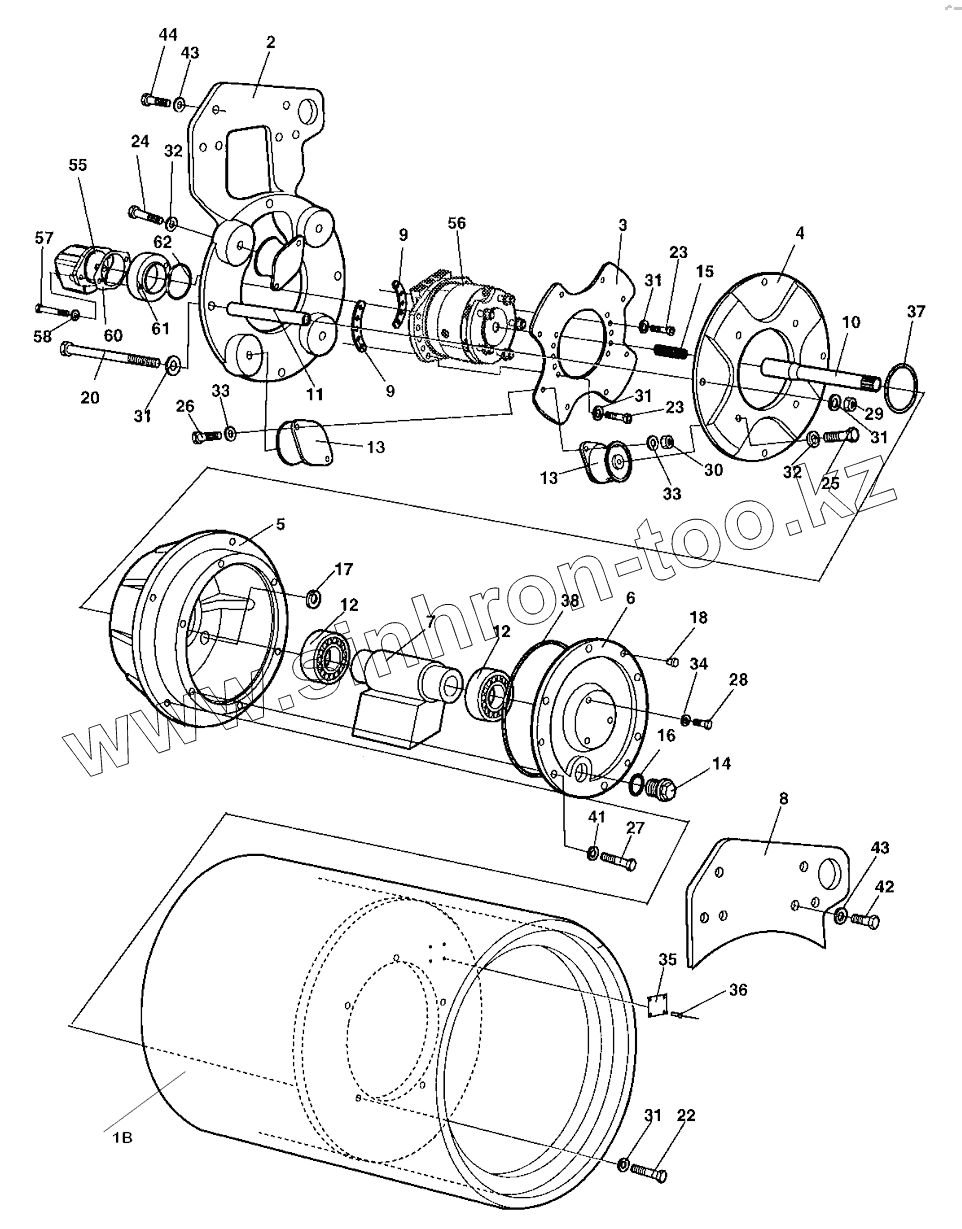

Каталог запасных частей к технике: DYNAPAC CC900S. Drum Single arm

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
9
10
10
10
10
10
10
10
10
10
11
12
12
13
13
14
15
16
17
18
20
22
23
23
24
25
26
27
28
29
30
31
31
31
31
31
32
32
33
33
34
35
36
37
38
41
42
43
43
44
55
55
55
55
56
57
58
60
61
62
Позиция на иллюстрации Заводской номер детали Название детали
1 4812121366 Drum, front
2 Fork Fork
3 4700389455 Motor bracket
4 4700389456 Drive disc
5 4700389132 Bearing housing
6 4700389134 Bearing housing
7 4700389136 Eccentric shaft
8 Signplate Sign plate
9 4700389462 Holder
10 4700390554 Splined shaft, kit
10 4700390175 Splined shaft
10 Instruction Instruction
11 4700389457 Spacer
12 4700791750 Cylinder roller bearing
13 4700394242 Shock absorber
14 4700343744 Magnetic plug
15 4700791922 Compression spring
16 4700162017 Seal ring
17 4700162024 Washer sealing
18 4700903374 Protective plug
20 4700791929 Screw
21 4700500175 Hex. screw
22 4700500195 Screw
23 4700508032 Screw
24 4812110668 Hexagon head screw
25 4812110670 Hexagon head screw
26 4812110669 Hexagon head screw
27 4700500022 Hex. screw
28 4700500012 Hex. screw
29 4700570007 Hex. nut
30 4700928847 Nut
31 4700904231 Washer
32 4700904703 Plain washer
33 4700904557 Washer
34 4700904228 Steel plain washer
35 Signplate Sign plate
36 4700527002 Drive screw
37 4700160111 O-ring
38 4700791923 O-ring
41 4700904556 Steel plain washer
42 Screw Screw
43 Washer Washer
44 Screw Screw
55 4700390854 Hydraulic motor
55 Sealkit Seal kit
56 Hydraulicmotor Hydraulic motor, Cpl
57 4700508014 Hexagon socket head cap screw
58 4700904557 Washer
60 4700379458 Gasket
61 4700390176 Adapter
62 4700160032 O-ring
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
