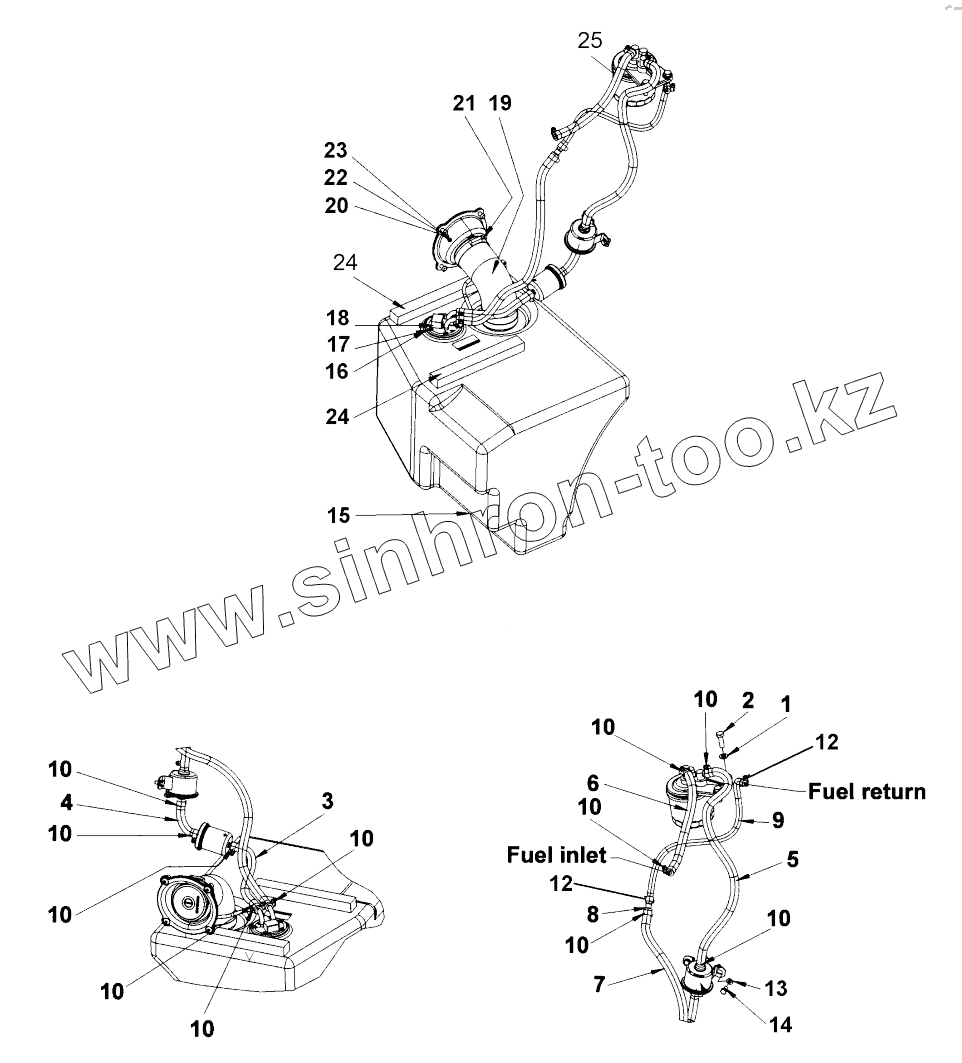

Каталог запасных частей к технике: DYNAPAC CC900. Fuel system
1
2
3
4
5
6
7
8
9
10
10
10
10
10
10
10
10
10
10
10
12
12
13
14
15
16
16
16
16
17
18
19
20
21
22
23
23
23
23
24
24
25
25
25
25
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4700904229 | Washer | |
| 2 | 4700947680 | Hexagon head screw m | |
| 3 | 4700904984 | Fuel hose | |
| 4 | 4700904984 | Fuel hose | |
| 5 | 4700904984 | Fuel hose | |
| 6 | 4700904984 | Fuel hose | |
| 7 | 4700904984 | Fuel hose | |
| 8 | 4700791774 | Hose connection | |
| 9 | 4700791422 | Hose | |
| 10 | 4700313001 | Clamp | |
| 12 | 4700313108 | Hose clamp | |
| 13 | 4700904228 | Steel plain washer | |
| 14 | 4700500012 | Hex. screw | |
| 15 | 4700387279 | Fuel tank | |
| 16 | 4700945777 | Gasket | |
| 16 | 4700387552 | Level gauge | |
| 17 | 4700904698 | Steel plain washer | |
| 18 | 4700903236 | Screw, Thread rolling | |
| 19 | 4700387695 | Fuel hose | |
| 20 | 4700387682 | Filler neck | |
| 21 | 4700313023 | Hose clamp | |
| 22 | 4700792180 | Blind rivet | |
| 23 | 4812118459 | Fuel cap | |
| 23 | 4812118885 | Key 2 pcs 044 | |
| 24 | 4700202042 | Rubber strip | |
| 25 | 4812156263 | Fuel filter element | |
| 25 | Filterhead | Filter head | |
| 27 | Waterseparator | Water separator, cpl | |
| 27 | FilterElement | Filter Element | |
| 27 | O-ring | O-ring | |
| 28 | 4812156389 | Fuel pump |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
