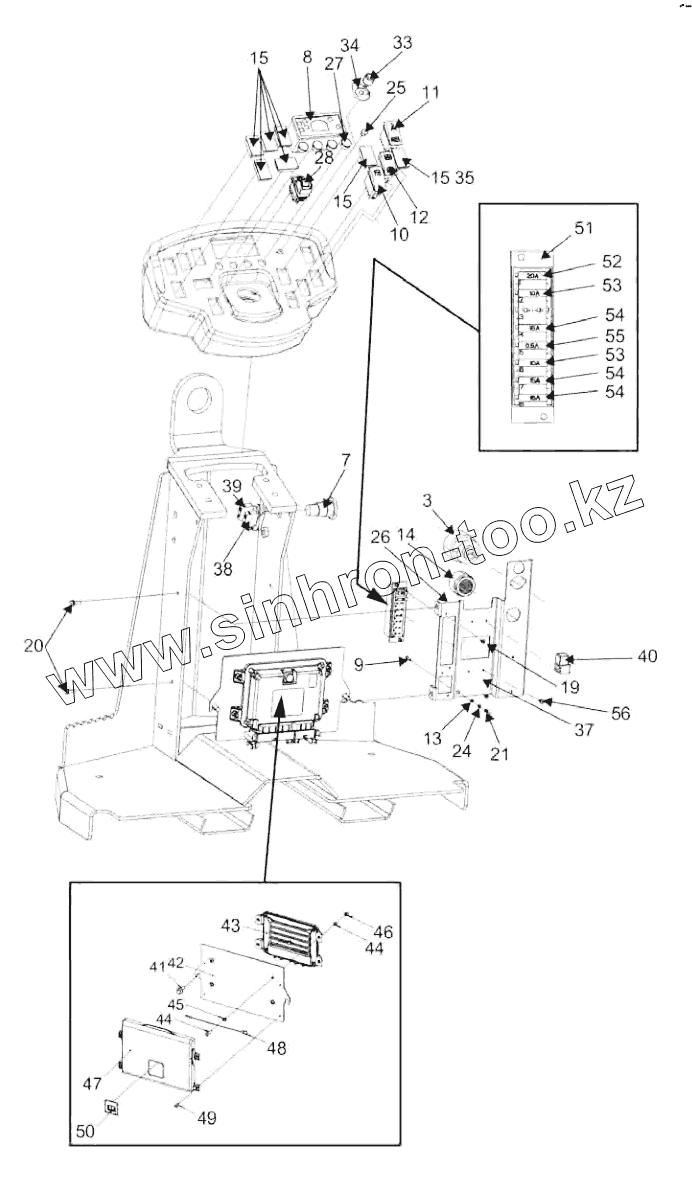

Каталог запасных частей к технике: DYNAPAC CC800. Control panel, relays
/42.gif)
3
3
7
8
9
10
11
12
13
14
15
15
15
19
20
21
24
25
26
27
28
33
34
35
37
38
39
40
41
42
43
44
44
45
46
47
48
49
50
51
52
53
53
54
54
54
55
56
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 3 | 4812110901 | Ignition switch | |
| 3 | 4700940451 | Ignition key | |
| 7 | 4700791739 | Emergency stop | |
| 8 | 4700395394 | Control panel | |
| 9 | 4700580075 | Screw | |
| 10 | 4700791578 | Switch, horn | |
| 11 | 4700791579 | Switch, sprinkler | |
| 12 | 4700791580 | Switch, vibration | |
| 13 | 4700570004 | Hex. nut | |
| 14 | 4700385599 | Buzzer | |
| 15 | 4700791588 | Panel plug | |
| 19 | 4700960725 | Screw | |
| 20 | 4812117868 | Screw | |
| 21 | 4700586002 | Lock nut | |
| 24 | 4700904228 | Steel plain washer | |
| 25 | 4700792083 | Plug | |
| 26 | 4700202042 | Rubber strip | |
| 27 | 4700792320 | Plug | |
| 28 | 4812118697 | Switch, parking brake | |
| 33 | 4700388737 | Potentiometer | |
| 34 | 4700377139 | Decal | |
| 35 | 4700791581 | Switch | |
| 37 | 4700387683 | Distribution control plate | |
| 38 | 4700389840 | Connector wFixing collar | |
| 39 | 4700791723 | Connector N/C | |
| 40 | 4700903956 | Relay | |
| 41 | 4700500505 | Screw | |
| 42 | 4812126298 | Cover plate | |
| 43 | 4812125677 | Control unit, ECU | |
| 44 | 4700500040 | Screw | |
| 44.1 | 4700791524 | Screw, | |
| 45 | 4700904228 | Steel plain washer | |
| 46 | 4700586002 | Lock nut | |
| 47 | 4700383705 | Instruction manual box | |
| 48 | 4700357643 | Wire | |
| 49 | 4700791226 | Screw | |
| 50 | 4700903425 | Safety decal READ SAFETY INSTRUCTIONS | |
| 51 | 4700791185 | Fuse box | |
| 52 | 4700903741 | Fuse | |
| 53 | 4700901227 | Fuse | |
| 54 | 4700901228 | Fuse | |
| 55 | 4700904140 | Fuse | |
| 56 | 4700791916 | Screw |
