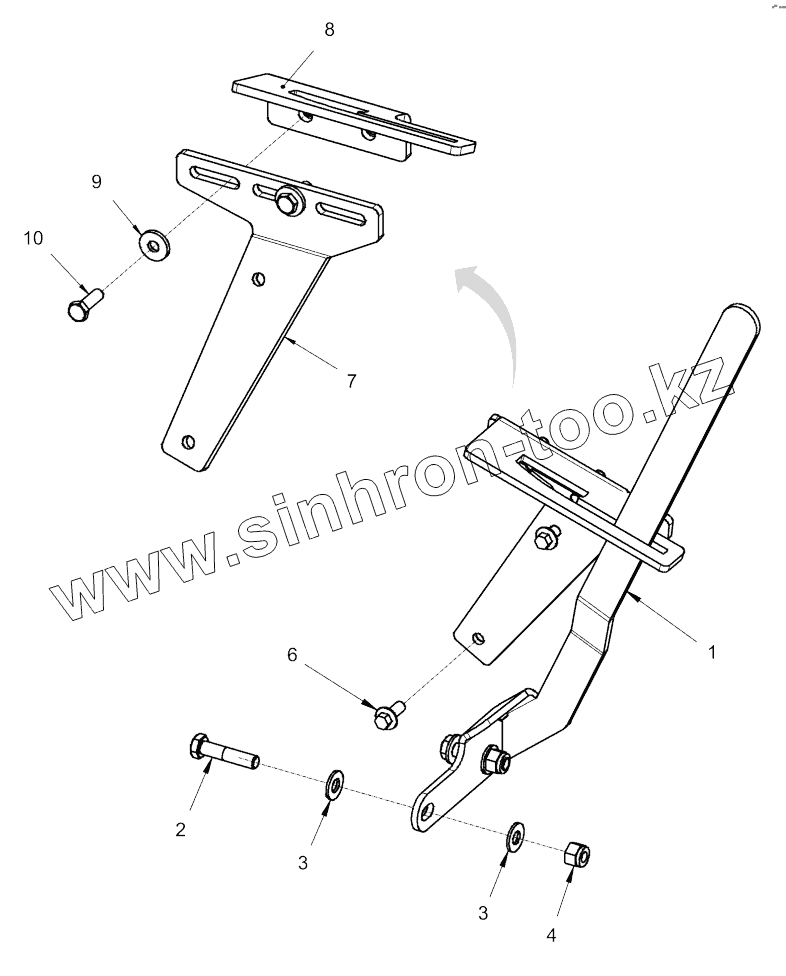

Каталог запасных частей к технике: DYNAPAC CC6200 VI. Grab handle module

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CA1400 (2016) CA2500D (2016) CA2500D (2018) CA2500D-PD (2018) CA250D (2011) CA252D (2008) CA2800D (2017) CA3500D (2016) CA4000D (2017) CA4000D (2020) CA4600D (2019) CA5500D (2015) CA610PD (2014) CA6500 (2018) CC1000 (2019) CC1100CC (2015) CC1200C Plus (2015) CC1200C VI (2018) CC1200CC (2018) CC125 (2015) CC1250 (2015) CC1300 (2018) CC1300C (2015) CC1300C (2016) CC2200 (2018) CC2200 (2020) CC2300C (2018) CC3300 (2018) CC4000 VI (2018) CC4200C VI (2020) CC5200C (2018) CC6200 VI (2020) CC800 (2019) CC900 (2018) CC900S (2018) CG2300 (2018) CP142 (2015) CP275 (2014) Dynapac CA1500 (2017) Dynapac CA2500 (2012) Dynapac CA302D (2008) Dynapac CA302D (2010) Dynapac CA5000D (2017) Dynapac CC142 (2009) Dynapac CC2200C (2015) Dynapac CC224HF (2012) Dynapac CC322 (2008) Dynapac CC422 (2010) Dynapac CC5200 (2014) Dynapac CC5200 (2017) Dynapac CC5200 (2017) Dynapac CC5200 VI (2017) Dynapac CC800 (2013) Dynapac CC800 (2014) Dynapac F1200C/CS (2018) Dynapac F1200CS/CS (2018) Dynapac F1800C (2018) Dynapac F181C (2010) Dynapac PL2000LS (2010) Dynapac PL2000LS (2010) Dynapac PL2000S (2010) Dynapac PL2000S (2010) Dynapac SCC1300 (2014) Dynapac SD2500C (ч. 1) (2018) Dynapac SD2500C (ч. 2) (2018) Dynapac SD2550C (ч. 1) (2018) Dynapac SD2550C (ч. 2) (2018) F2500C (2018) SD2550CS (2015)

Схема > Не выбрано 4812160752 Service kit, 50h 4812161474 Service kit, 500h 4812163270 Service kit, 500h Plus 4812161475 Service kit, 1000h 4812163272 Service kit, 1000h Plus 4812161476 Service kit, 2000h 4812163274 Service kit, 2000h Plus (not for machines with PANOLIN) 4700945903 Eccentric shaft kit 4700938891 Drum rotation kit 4812161597 Shock absorber kit, drum 4812161596 Scraper blade kit Frame and hitch Front frame module Cover assembly Drum cover module Hitch module 4812117737 Articulated joint Ballast module Rear frame module To A021377 Rear frame module From A021378 Front ending module Cover plates, front ending Step and handle, front right Rear ending module Cover plates, rear ending Towing eyelet Scrapers Scraper module 4700394340 Scraper bracket, cpl Bracket module Bracket module Bracket module Grab handle, lift Grab handle module Grab handle, release Sprinkler system Sprinkler pump module Water tank module Filling pipe module Locking device Sprinkler hoses Scraper module, with nozzles Sprinkler tank module, rear Sprinkler tank, rear Sprinkler hose module, extra tank rear Drum Drum drive 4812123057, 4812123058 Hydraulic motor Drum bearing Drum suspension Weight module 40kg Engine assembly Engine bracket module Belt guard module 4812124294 Engine Cummins QSF 3.8 T4 Air filter module Exhaust system module Cooling system Cooler stand module Cooling air casing Charge air cooler mounted Water cooler system Expansion tank module Fuel system std Fuel tank module Bracket kit Fuel hose assembly Draining module DEF/Urea system DEF Equipment module Urea pump module Hose kit, urea To A022735 Hose kit, urea From A022736 Engine hoods Engine hood module right Engine hood module left Engine hood module center Rear frame cover module, right Rear frame cover module, left Expansion tank cover module Engine hoods Engine hood module right Engine hood module left Engine hood module center Rear frame cover module, left Rear frame cover module, right Hydraulic system, filter, oil and leak - Std To 022079, Eco To 021550 Hydraulic system, filter, oil and leak - Std From 022080, Eco From 021551 Main hydraulic valve, cpl 4812128092 Hydraulic valve 4812123244 Hydraulic valve Hydraulic pump & connectors Std To 022079, Eco To 021550 4700390602 Hydraulic pump 4812155785 Hydraulic pump Rotating group, cpl Valve block, cpl Control module Flushing valve 4812155786 Hydraulic pump Rotary group, cpl Valve block, cpl 4812155787 Hydraulic pump Rotary group, cpl Valve block, cpl Hydraulic pump & connectors Std From 022080, Eco From 021551 Hydraulic tank mounted Propulsion system Vibration system 4700395915 Hydraulic motor Vibration Hydraulic system, fan & steering Fan module Hose bracket, cross sliding Brake system Electric system, main harness Fuse and relay central module Ecu module Back-up alarm module Cable harnesses, speed and frequency Power supply, std Battery shelf module Battery holder Power supply, cab Driving-, direction- & Licence plate lights Driving lights module Turn signals Registration plate light Steering column switch module Driving lights module, left rear Driving lights module, right rear Rotating beacon Drum edge lights Working lights Rops/Cab Dyn@Link Dyn@lyzer Holder module, Computer Holder module Tachograph DCM Compaction meter with Evib Cab module 4812122868 Cab asymmetric comfort Roof edges Windscreen and wipers, front Ceiling, lower panels Screens, wipers and switches, cab right side 4812125328 Sliding window Interior, celing (lights, nozzles, hammer, hook, switch 2&3) Ventilation hoses, rear washer/wiper, power sockets Interior, front (air channel, loud speakers, antenna, relays, switch 1) AC Box Air condition installation (ACC) 4812125276 ACC Unit Door, left 4812122883 Door 4812125321 Sliding window, left Horn, power converter, protections Rear screen 4812127299 Cab asymmetric comfort Door, left Door assembly Door window openable 4812122869 Cab asymmetric std Heater installation 4812126358 Heater unit Rear screen 4812127300 Cab asymmetric std Door, left Door assembly Sliding window ROPS module 4812122870 ROPS Handrails, harness, power sockets Handrail assembly Roof edges Rear covers, storage Manual box Mirrors Seat frame module Seat frame adapter module Control module, sliding/turning Floor cassette module Seat, galon suspensioned Seat comfort, fabric suspensioned Seat comfort, galon suspensioned Seat belt 2" Seat belt 2" with reminder Seat belt 3" Seat belt 3" with reminder Control module, 4 buttons Forward-reverse control module Display module Instrument panel cover module SMV sign Fire extinguisher, Cab Fire extinguisher, ROPS Plain Dynapac decals, kit Color Air conditioning Condensor module Drying filter module 4812114257 Drying filter assy Compressor module Refrigerant hose kit Car stereo module 12V Asphalt temp meter Edge cutter, front right Edge cutter, right Holder, edge cutter 4812120738 Hydraulic cylinder Bearing unit Edge cutter, left Holder, edge cutter Holder module Pressing roller, module Cutting disc module

1

2

3

3

4

6

7

8

9

10

Позиция на иллюстрации	Заводской номер детали		Название детали
1	4812126997		Grab handle
2	4700500161		Screw
3	4700904230		Washer
4	4700586018		Lock nut
6	4700500505		Screw
7	4812126995		Bracket
8	4812126996		Bracket
9	4700904640		Washer
10	4700500021		Hex. screw

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
