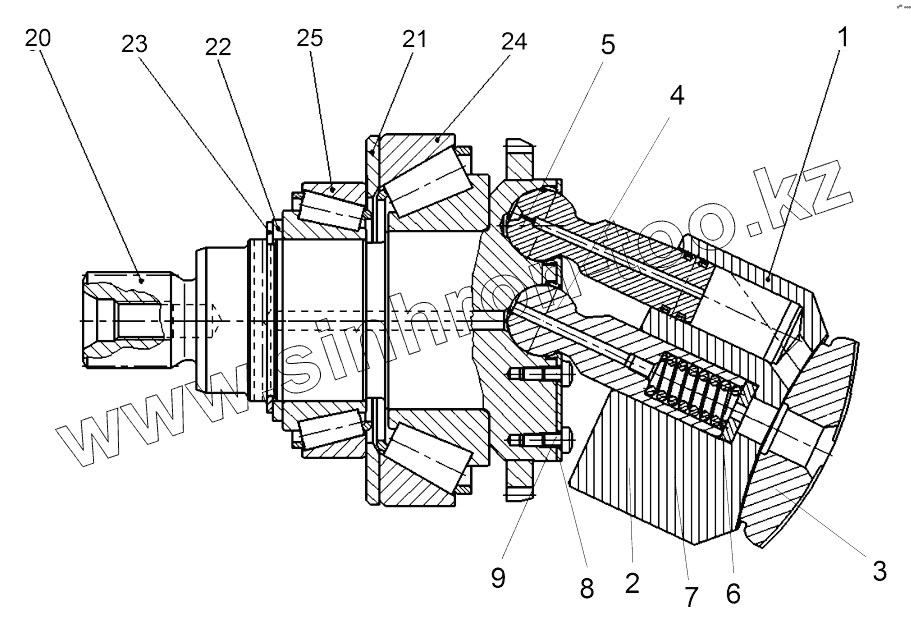

Каталог запасных частей к технике: DYNAPAC CC5200C. Rotary group, From A014207

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
20
21
22
22
22
22
22
22
22
22
23
24
25
Позиция на иллюстрации Заводской номер детали Название детали
1 4812157166 Engine hydraulic part
2 Cylinder Cylinder
3 Controllens Control lens
4 Centerpin Center pin
5 Pistonwithrings Piston with rings
6 Adjustmentshim Adjustment shim
7 Pressurespring Pressure spring
8 Retainingplate Retaining plate
9 Pan-headscrew Pan-head screw
20 Driveshaft Drive shaft
21 Shim Shim
22 Back-upplate Back-up plate
22 Back-upplate Back-up plate
22 Back-upplate Back-up plate
22 Back-upplate Back-up plate
22 Back-upplate Back-up plate
22 Back-upplate Back-up plate
22 Back-upplate Back-up plate
22 Back-upplate Back-up plate
23 Retainingring Retaining ring
24 4812157167 Tapered roller bearing
25 4812157168 Tapered roller bearing
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
