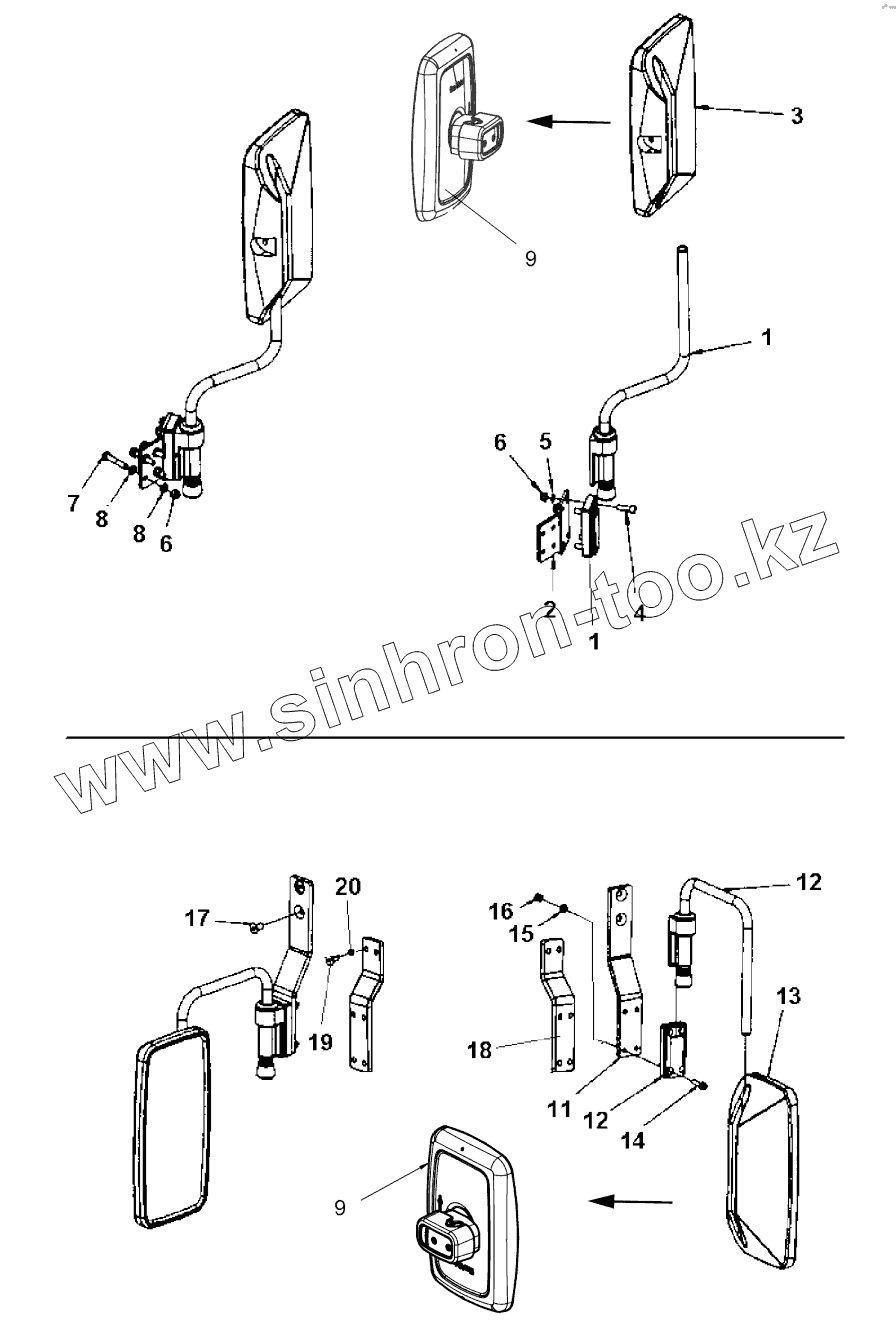

Rear view mirror
Drivers seat
Seat frame structure
4700391163 Steering column
Seat, galon suspensioned
Seat comfort, galon suspensioned
Seat comfort, fabric suspensioned
Seat belt 2"
Seat belt 2" with reminder
Seat belt 3"
Seat belt 3" with reminder
Controls, slidable and turning
Cross sliding
Carrier
Drive control To A015392
Drive control To A015392
Drive control From A01539
Drive control From A01539
Control handle From A01539
Display unit
Control panel cover
Seat frame adapter module, rotating
Decals
Plain Dynapac decals, kit
Air conditioning
Compressor module
Condensor module
Condensor
4812113623 Evaporator, cpl
Hose kit Compressor
Hose kit AC
Radio and cd player
Radio and cd player module
Power supply module
Tachograph
Tachograph holder module
Tachograph holder
Cable harness kit
Tachograph, Car stereo
Tachograph with holder
Car stereo module 12V
Edge cutter
Edge cutter, module
4700390998 Edge cutter, cpl
4700390999 Holder
4700391009 Bearing unit
4700387275 Hydraulic cylinder
Cutting disc module
Pressing roller, module
Hydraulic valve module
Hydraulic valve
4700391018 Hydraulic valve
Disc/Roller holder
Fire extinguisher/First Aid Cushion
Fire extinguisher assembly
Asphalt temperature meter
Dyn@Link module
4812013038 GPS module
Dyn@lyzer
11
20
19
18
17
16
15
14
13
13
12
12
1
1
9
9
8
8
7
6
6
5
4
3
2
Позиция на иллюстрации
Заводской номер детали
Название детали
11
4812110334
Bracket
20
4700904229
Washer
19
4700500053
Hex. screw
18
4812115053
Bracket
17
4811000096
Hex. socket countersunk screw
16
4700586003
Hexagon lock nut
15
4700904229
Washer
14
4700508019
Cylinder screw
13
4812161276
Mirror glass
13
4700381943
Mirror
12
4812110367
Bracket
1
4700381944
Holder
9.1
Mirrorglass
Mirror glass
9
4812125407
Mirror
8
4700904556
Steel plain washer
7
4700500024
Screw
6
4700586003
Hexagon lock nut
5
4700904229
Washer
4
4700508019
Cylinder screw
3.1
4812161276
Mirror glass
3
4700381943
Mirror
2
4700392316
Bracket
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
