Hydraulic system, front drum
Hydralic system, wheels
Hydraulic valve module, offset/combi
Hydraulic valve
4700391017 Hydraulic valve
Hydraulic hoses, frame
Hydraulic hoses, engine room
Fan module
Hydraulic pump module
Oil cooler
Hydraulic valve module
Hydraulic valve
4700395924 Hydraulic valve
Pump bracket
Hydraulic pump module
Hydraulic pump
Hydraulic system, steering Std
Hose bracket
Hydraulic steering, sliding seat
Carrier
Steering, slideable
4700372424 Pilot valve, steering
Electric cables, power supply
Battery disconnector
Battery disconnector
Electric cables, power supply cab
Electric cables, engine - ECU
Standard ECU module
Standard ECU assembly
Electric cables, engine - ECU
Standard ECU module
Standard ECU assembly
Driving & side direction lights
Driving lights, front RH
Driving lights, front LH
Steering column switch module
Cable harness and switch module
Registration plate light module
Registration plate light
Driving lights, rear
Turn signals
Rotating beacon, working light
Rotating beacon module
Working light module H3
Drum edge lights
Bracket
Bracket
GPS/DCA, Asphalt temp meter
Cable harness kit, GPS
Cable and Gateway
GPS/DCA equipment assy
Temp sensor module
Temp sensor module
Computer with holder
Platform, no cab
Platform with 4-post ROPS
4812119369 Platform with 4-post ROPS
Roof
ROPS interior
Decals basic kit
Manual box
Hand rail, left
Hand rail
Hand rail, right
Hand rail
Hand rail
Lunch box module
Cab, asymmetric
4812119361 Cab, cpl
Screens front/rear and ceiling
Corner screens left and AC hood
24V socket and air nozzels
Wipers front/rear and front ceiling
Cab frame harness
Heating installation
Heater cover plate
AC-kit
Switch kit
Door sliding screens
Door complete
Screens asymmetric right
Lower screens front/rear and rear cover
Lower screen and water system, left
Lower screens and water system, right
4812119360 Cab comfort, cpl
Interior Cab
Evaporator kit
ACC kit
4812113624 ACC kit
Decals basic kit
Cab noise cover
Rear view mirror
Drivers seat
Seat frame structure
4700391163 Steering column
Seat, galon suspensioned
Seat comfort, galon suspensioned
Seat comfort, fabric suspensioned
Seat belt 2"
Seat belt 2" with reminder
Seat belt 3"
Seat belt 3" with reminder
Controls, slidable and turning
Cross sliding
Carrier
Drive control To A015392
Drive control To A015392
Drive control From A01539
Drive control From A01539
Control handle From A01539
Display unit
Control panel cover
Seat frame adapter module, rotating
Decals
Plain Dynapac decals, kit
Air conditioning
Compressor module
Condensor module
Condensor
4812113623 Evaporator, cpl
Hose kit Compressor
Hose kit AC
Radio and cd player
Radio and cd player module
Power supply module
Tachograph
Tachograph holder module
Tachograph holder
Cable harness kit
Tachograph, Car stereo
Tachograph with holder
Car stereo module 12V
Edge cutter
Edge cutter, module
4700390998 Edge cutter, cpl
4700390999 Holder
4700391009 Bearing unit
4700387275 Hydraulic cylinder
Cutting disc module
Pressing roller, module
Hydraulic valve module
Hydraulic valve
4700391018 Hydraulic valve
Disc/Roller holder
Fire extinguisher/First Aid Cushion
Fire extinguisher assembly
Asphalt temperature meter
Dyn@Link module
4812013038 GPS module
Dyn@lyzer
1
1
2
2
3
3
4
4
5
5
6
6
7
7
20
20
21
22

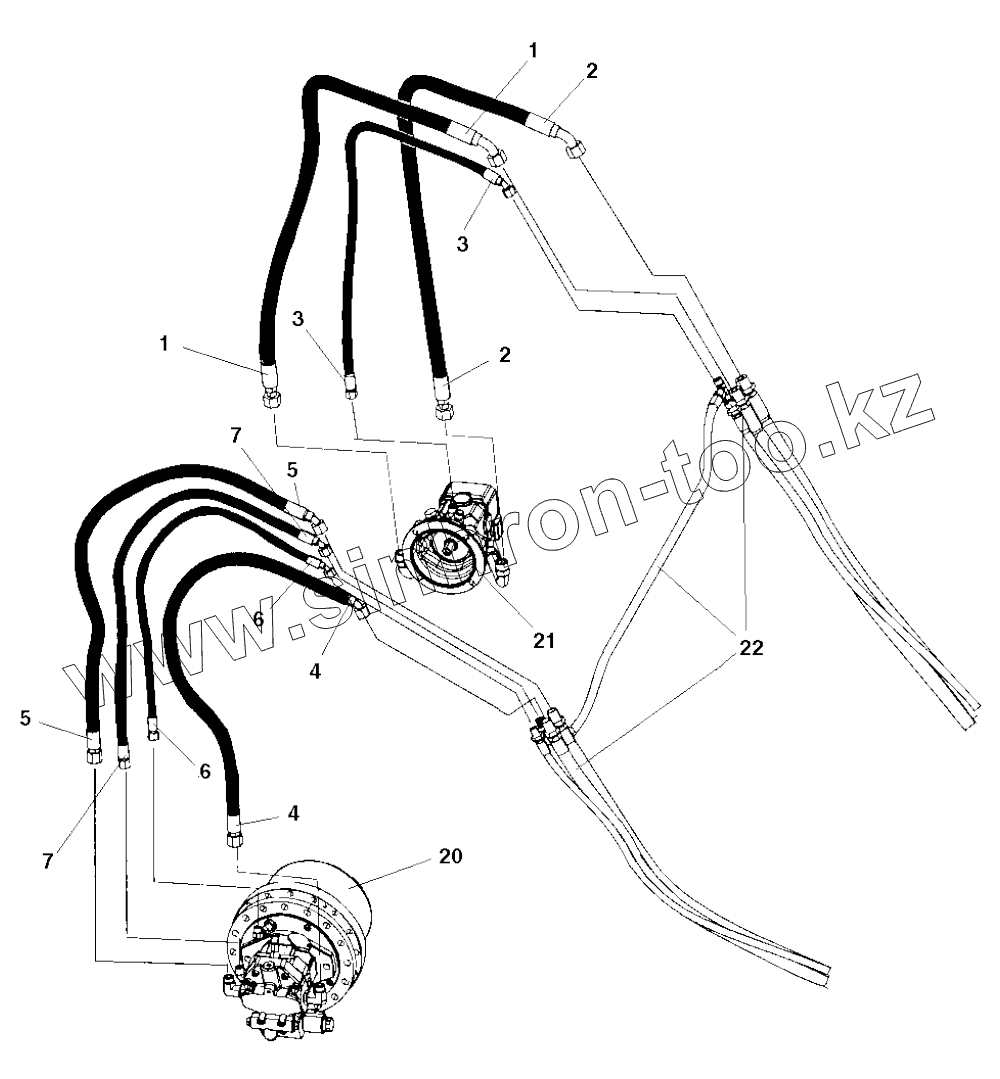

Позиция на иллюстрации
Заводской номер детали
Название детали
1
4700484075
Hydraulic hose
2
4700484076
Hydraulic hose
3
4700484077
Hydraulic hose
4
4700484078
Hydraulic hose
5
4700484079
Hydraulic hose
6
4700484080
Hydraulic hose
7
4700484081
Hydraulic hose
20
Driveunit
Drive unit
20
Driveunit
Drive unit
21
VibratingunitSauer
Vibrating unit Sauer
22
Hydraulichoses,frame
Hydraulic hoses, frame
