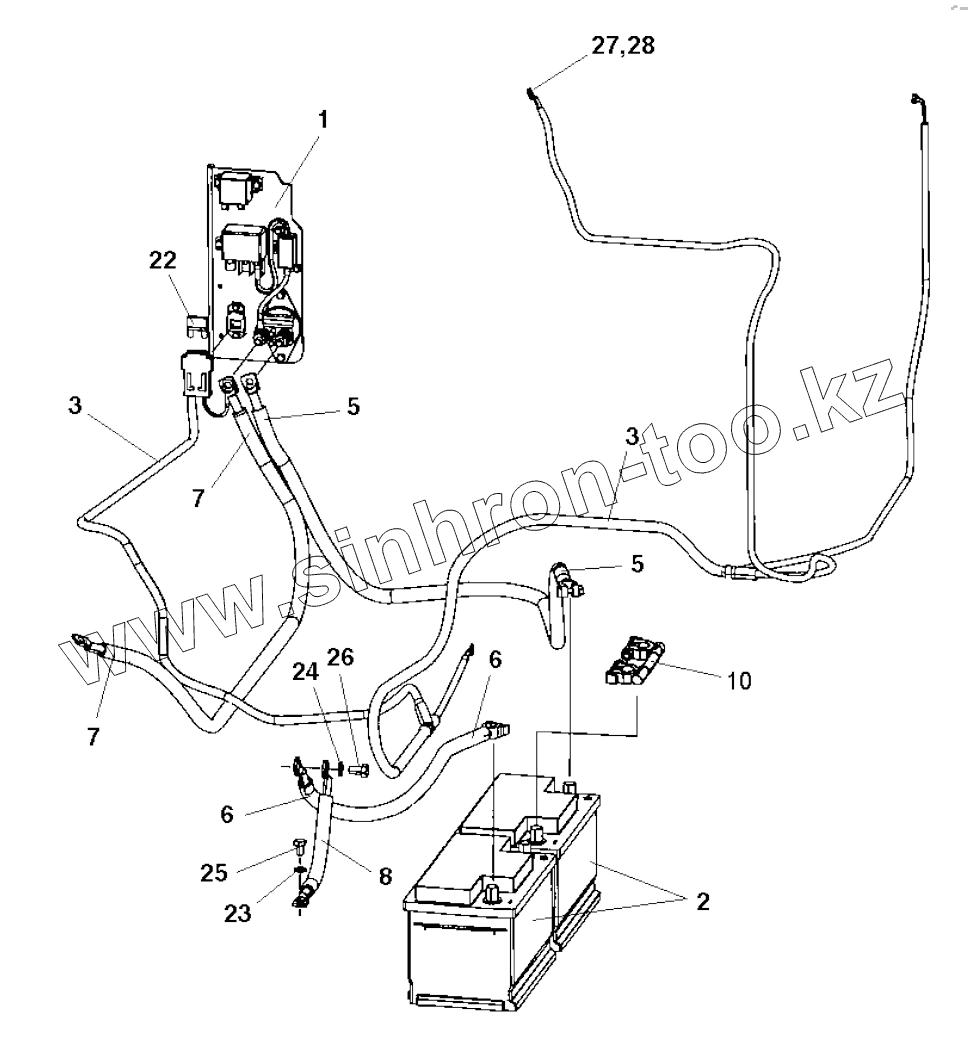

1
2
3
3
5
5
6
6
7
7
8
10
22
23
24
25
26
27
28
Позиция на иллюстрации
Заводской номер детали
Название детали
1
Batterydisconnector
Battery disconnector module
2
Battery
Battery module
3
4700391584
Cable harness, power supply
5
4700792364
Battery cable +
6
4700792328
Battery cable
7
4812118387
Connection cable
8
4700335607
Connection cable, coarse
10
4700792684
Battery union cable
22
4700904039
Fuse
23
4700904637
Washer
24
4700904638
Washer
25
4700500043
Hex. screw
26
4700500035
Hex. screw
27
4700904229
Washer
28
4700570005
Hex. nut
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
