Каталог запасных частей к технике: DYNAPAC CC5200C. Driving lights, front LH

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CA1400 (2016) CA2500D (2016) CA2500D (2018) CA2500D-PD (2018) CA250D (2011) CA252D (2008) CA2800D (2017) CA3500D (2016) CA4000D (2017) CA4000D (2020) CA4600D (2019) CA5500D (2015) CA610PD (2014) CA6500 (2018) CC1000 (2019) CC1100CC (2015) CC1200C Plus (2015) CC1200C VI (2018) CC1200CC (2018) CC125 (2015) CC1250 (2015) CC1300 (2018) CC1300C (2015) CC1300C (2016) CC2200 (2018) CC2200 (2020) CC2300C (2018) CC3300 (2018) CC4000 VI (2018) CC4200C VI (2020) CC5200C (2018) CC6200 VI (2020) CC800 (2019) CC900 (2018) CC900S (2018) CG2300 (2018) CP142 (2015) CP275 (2014) Dynapac CA1500 (2017) Dynapac CA2500 (2012) Dynapac CA302D (2008) Dynapac CA302D (2010) Dynapac CA5000D (2017) Dynapac CC142 (2009) Dynapac CC2200C (2015) Dynapac CC224HF (2012) Dynapac CC322 (2008) Dynapac CC422 (2010) Dynapac CC5200 (2014) Dynapac CC5200 (2017) Dynapac CC5200 (2017) Dynapac CC5200 VI (2017) Dynapac CC800 (2013) Dynapac CC800 (2014) Dynapac F1200C/CS (2018) Dynapac F1200CS/CS (2018) Dynapac F1800C (2018) Dynapac F181C (2010) Dynapac PL2000LS (2010) Dynapac PL2000LS (2010) Dynapac PL2000S (2010) Dynapac PL2000S (2010) Dynapac SCC1300 (2014) Dynapac SD2500C (ч. 1) (2018) Dynapac SD2500C (ч. 2) (2018) Dynapac SD2550C (ч. 1) (2018) Dynapac SD2550C (ч. 2) (2018) F2500C (2018) SD2550CS (2015)

Схема > Не выбрано 4812160580 Service kit, 50h Plus 4700945806 Service kit 500 h, Cummins QSB 4.5 T3 4812160269 Service kit 1000 h, Cummins QSB 4.5 T3 4700945903 Eccentric shaft kit 4700938891 Drum rotation kit 4700945904 Shock absorber kit, drum 4812155698 Sprinkler kit Keys Fuses Front frame Front frame 4700391023 Steering cylinder Tank structure module Tank structure module 4700391307 Cover Hose support Hitch module 4812117737 Articulated joint Filling pipe Locking device module Grab handle module Rear frame Frame, rear Cover, cpl Engine structure, module Engine structure 4812121586 Cover left, cpl 4812121583 Cover right, cpl Noise suppression plates Noise suppression, covers Grab handle module Sprinkler system Sprinkler pump module Sprinkler pump Water hoses Emulsion tank module Emulsion tank mount Sprinkler pump module, emulsion Sprinkler pump mounted Sprinkler box cpl Sprinkler pipe module, wheel Sprinkler pipe Sprinkler pump, backup End frame, front End frame, front Frame End frame, extra tank Frame assy Fork, vibration side Fork, propulsion side Cover plate Hose clamp, propulsion side Hose clamp, vibration side Step, vibration side Step, propulsion side Scraper module, without nozzles Scraper assy Scraper module, with nozzles Scraper assy with nozzles 4700394340 Scraper bracket, cpl Grab handle, release Grab handle, release Grab handle, release Grab handle, lift Grab handle, lift offset/cocoa mat Cocoa mat module Cocoa mat assembly Cocoa mat bracket module Cocoa mat bracket Cocoa mat bracket module Cocoa mat bracket Process mirrors End frame, rear End frame, rear Frame assy Combi unit, additional kit Combi unit, basic kit 4700394922 Gear Hydraulic motor Connection block Micro switch 4700391024 Steering cylinder Wheel module Wheel Wheel spacer module Scraper bracket Scraper module Scraper assy Step assy SMV-sign Protecting covers Drum Drum bearing Drive unit, To A014206 4700390604 Drum gear, To A014206 4700390603 Hydraulic motor, To A014206 Engine hydraulic part, To A014206 End plate, To A014206 Drive unit, From A014207 4812269526 Gear, From A014207 4812120567 Hydraulic motor, From A014207 Housing, cpl, From A014207 Rotary group, From A014207 Connection plate, cpl, From A014207 Sensor, From A014207 Vibration unit To A016644 Vibrating unit Sauer 4700395915 Hydraulic motor Vibration. To A016644, From A016645 Vibration unit From A016645 Vibrating unit Sauer Engine room Engine Engine module Diesel engine Cummins QSB4.5 T3 - 93kW Air cooler hoses Air cleaner module Air cleaner hose module Muffler Exhaust pipe module Fuel hose module Charge air cooler Water cooler, To A014202 Water cooler hoses, To A014202 Water cooler, From A014203 Water cooler hoses, From A014203 Coolant hoses Expansion tank assembly Hydraulic system, front drum Hydralic system, wheels Hydraulic valve module, offset/combi Hydraulic valve 4700391017 Hydraulic valve Hydraulic hoses, frame Hydraulic hoses, engine room Fan module Hydraulic pump module Oil cooler Hydraulic valve module Hydraulic valve 4700395924 Hydraulic valve Pump bracket Hydraulic pump module Hydraulic pump Hydraulic system, steering Std Hose bracket Hydraulic steering, sliding seat Carrier Steering, slideable 4700372424 Pilot valve, steering Electric cables, power supply Battery disconnector Battery disconnector Electric cables, power supply cab Electric cables, engine - ECU Standard ECU module Standard ECU assembly Electric cables, engine - ECU Standard ECU module Standard ECU assembly Driving & side direction lights Driving lights, front RH Driving lights, front LH Steering column switch module Cable harness and switch module Registration plate light module Registration plate light Driving lights, rear Turn signals Rotating beacon, working light Rotating beacon module Working light module H3 Drum edge lights Bracket Bracket GPS/DCA, Asphalt temp meter Cable harness kit, GPS Cable and Gateway GPS/DCA equipment assy Temp sensor module Temp sensor module Computer with holder Platform, no cab Platform with 4-post ROPS 4812119369 Platform with 4-post ROPS Roof ROPS interior Decals basic kit Manual box Hand rail, left Hand rail Hand rail, right Hand rail Hand rail Lunch box module Cab, asymmetric 4812119361 Cab, cpl Screens front/rear and ceiling Corner screens left and AC hood 24V socket and air nozzels Wipers front/rear and front ceiling Cab frame harness Heating installation Heater cover plate AC-kit Switch kit Door sliding screens Door complete Screens asymmetric right Lower screens front/rear and rear cover Lower screen and water system, left Lower screens and water system, right 4812119360 Cab comfort, cpl Interior Cab Evaporator kit ACC kit 4812113624 ACC kit Decals basic kit Cab noise cover Rear view mirror Drivers seat Seat frame structure 4700391163 Steering column Seat, galon suspensioned Seat comfort, galon suspensioned Seat comfort, fabric suspensioned Seat belt 2" Seat belt 2" with reminder Seat belt 3" Seat belt 3" with reminder Controls, slidable and turning Cross sliding Carrier Drive control To A015392 Drive control To A015392 Drive control From A01539 Drive control From A01539 Control handle From A01539 Display unit Control panel cover Seat frame adapter module, rotating Decals Plain Dynapac decals, kit Air conditioning Compressor module Condensor module Condensor 4812113623 Evaporator, cpl Hose kit Compressor Hose kit AC Radio and cd player Radio and cd player module Power supply module Tachograph Tachograph holder module Tachograph holder Cable harness kit Tachograph, Car stereo Tachograph with holder Car stereo module 12V Edge cutter Edge cutter, module 4700390998 Edge cutter, cpl 4700390999 Holder 4700391009 Bearing unit 4700387275 Hydraulic cylinder Cutting disc module Pressing roller, module Hydraulic valve module Hydraulic valve 4700391018 Hydraulic valve Disc/Roller holder Fire extinguisher/First Aid Cushion Fire extinguisher assembly Asphalt temperature meter Dyn@Link module 4812013038 GPS module Dyn@lyzer

1

2

3

4

5

6

7

8

9

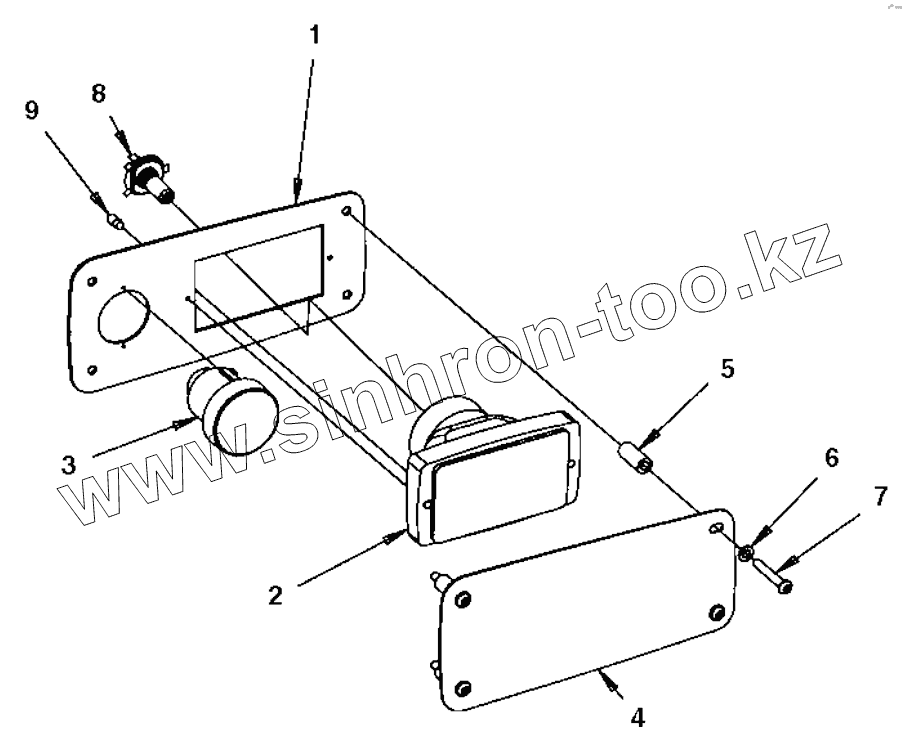

Позиция на иллюстрации	Заводской номер детали		Название детали
1	4700390434		Lights bracket
2	4700792059		Headlight left hand asym. with parking light
3	4700792521		Direction indicator
4	4700390436		Protecting cover
5	4700391115		Spacer sleeve
6	4700904229		Washer
7	4700792361		Hexagon socket head cap screw
8	4700792353		Bulb
9	4700792350		Bulb
