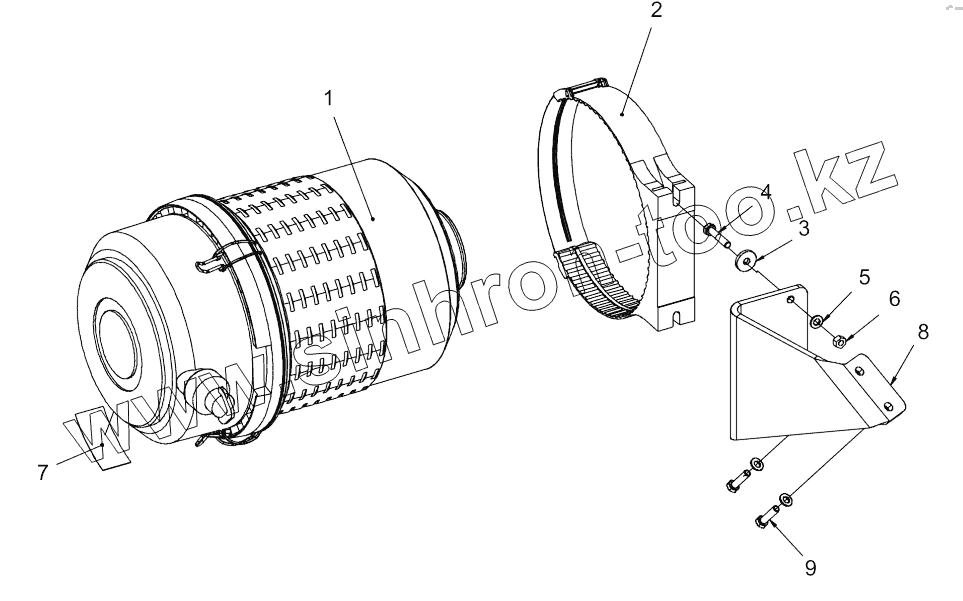

1
1
1
1
1
3
4
5
6
7
8
9
Позиция на иллюстрации
Заводской номер детали
Название детали
1
4700390820
Air cleaner
1
4700390995
Air filter element, outside
1
4700390994
Air filter element, inside
1
4700390992
Cover
1
4700390993
Vacuator valve
2
4700390811
Bracket
3
4700904734
Washer
4
4700500023
Screw
5
4700904229
Washer
6
4700570005
Hex. nut
7
4700791642
Decal WARNING Use of starting fluid prohib.
8
4812115733
Bracket
9
4700500022
Hex. screw
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
