33
17
19
20
21
22
23
29
30
16
44
60
120
213
213
214
216
218
224
8
1
2
3
4
5
6
7
9
10
11
12
13
14
15

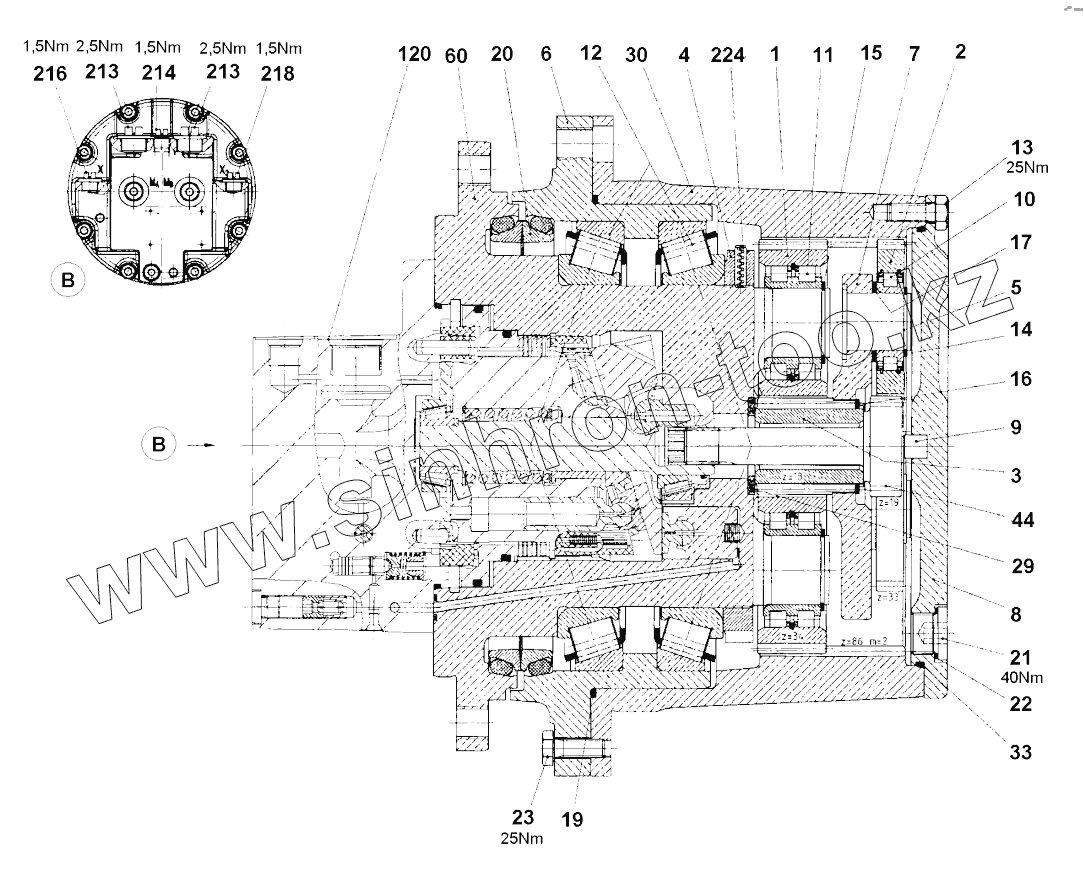

Позиция на иллюстрации
Заводской номер детали
Название детали
33
Sealscrew
Seal screw
17
Supportdisc
Support disc
19
O-ring
O-ring
20
Faceseal
Face seal
21
Plugthreaded
Plug threaded
22
4700950492
Seal ring
23
Hexagonheadscrew
Hexagon head screw
29
Housingwasher
Housing washer
30
Ringgear
Ring gear
16
Snapring
Snap ring
44
Sungearshaft
Sun gear shaft
60
Spindle
Spindle
120
Hydraulicmotor
Hydraulic motor, Cpl
213
Sealscrew
Seal screw
214
Sealscrew
Seal screw
216
Sealscrew
Seal screw
218
Sealscrew
Seal screw
224
Springdowelsleeve
Spring dowel sleeve
8
Cover
Cover
0-A
4812156651
Seal kit
1
Planetgear
Planet gear
2
Planetgear
Planet gear
3
Sungear
Sun gear
4
Shaftnut
Shaft nut
5
Planetbolt
Planet bolt
6
Supportingring
Supporting ring
7
Planetcarrier
Planet carrier
4700394922
4700394922
Gear
9
Cylindricalroller
Cylindrical roller
10
4700950498
Cylinder roller bearing
11
4700950483
Cylinder roller bearing
12
4700950481
Tapered roller bearing
13
Hexagonscrew
Hexagon screw
14
Snapring
Snap ring
15
Snapring
Snap ring
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
