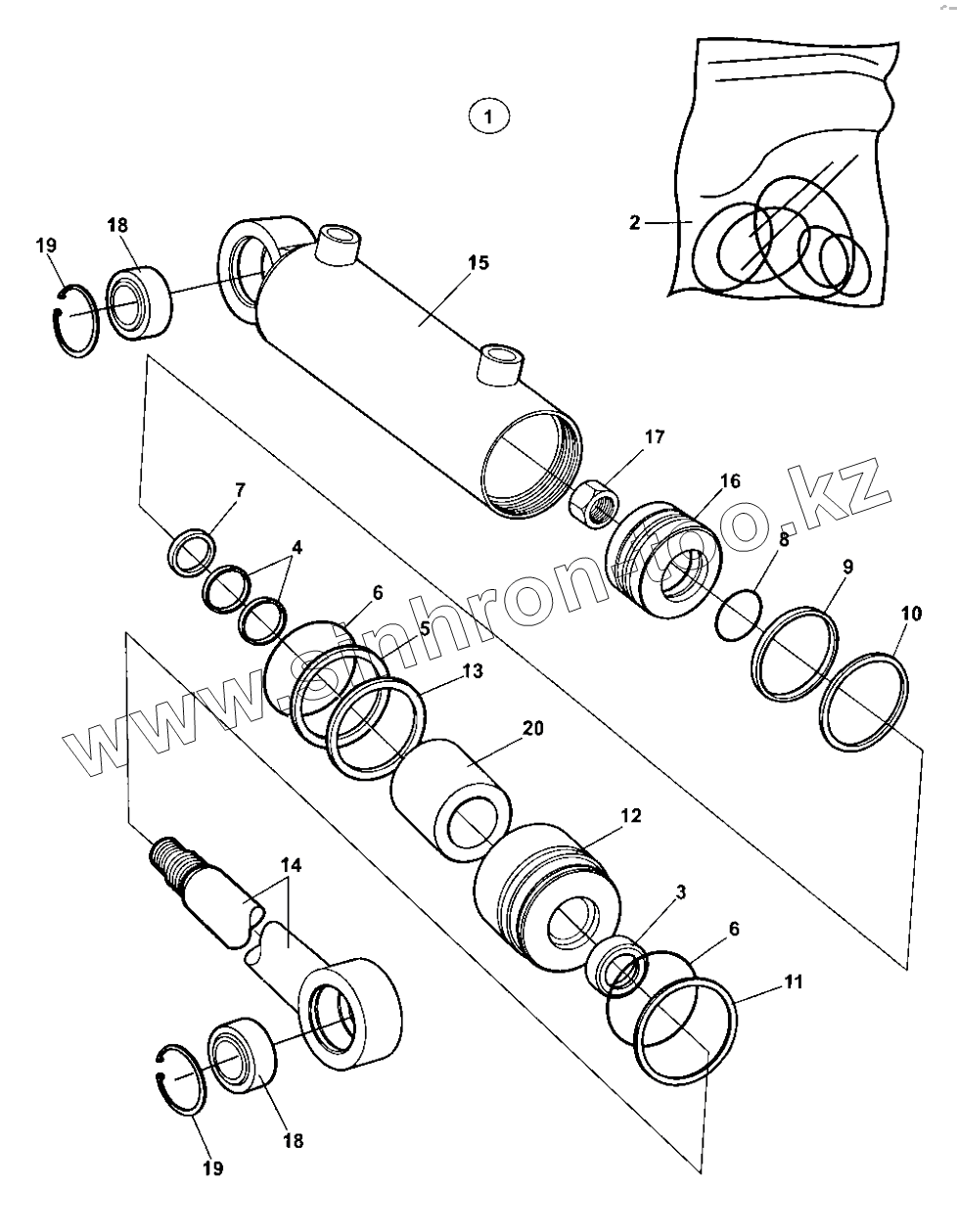

4700387275 Hydraulic cylinder
Cutting disc module
Pressing roller, module
Hydraulic valve module
Hydraulic valve
4700391018 Hydraulic valve
Disc/Roller holder
Fire extinguisher/First Aid Cushion
Fire extinguisher assembly
Asphalt temperature meter
Dyn@Link module
4812013038 GPS module
Dyn@lyzer
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
19
20
Позиция на иллюстрации
Заводской номер детали
Название детали
1
4700387275
Hydraulic cylinder
2
4700945668
Seal kit
3
Seal
Seal
4
Seal
Seal
5
Back-upring
Back-up ring
6
O-ring
O-ring
7
Seal
Seal
8
O-ring
O-ring
9
Seal
Seal
10
Seal
Seal
11
Retainingring
Retaining ring
12
Steering
Steering
13
Retainingring
Retaining ring
14
Rodseal
Rod seal
15
Cylinder
Cylinder
16
Pistonblock
Piston block
17
Cylindernut
Cylinder nut
18
4700945526
Bearing
19
4812159771
Retaining ring
20
Spacer
Spacer
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
