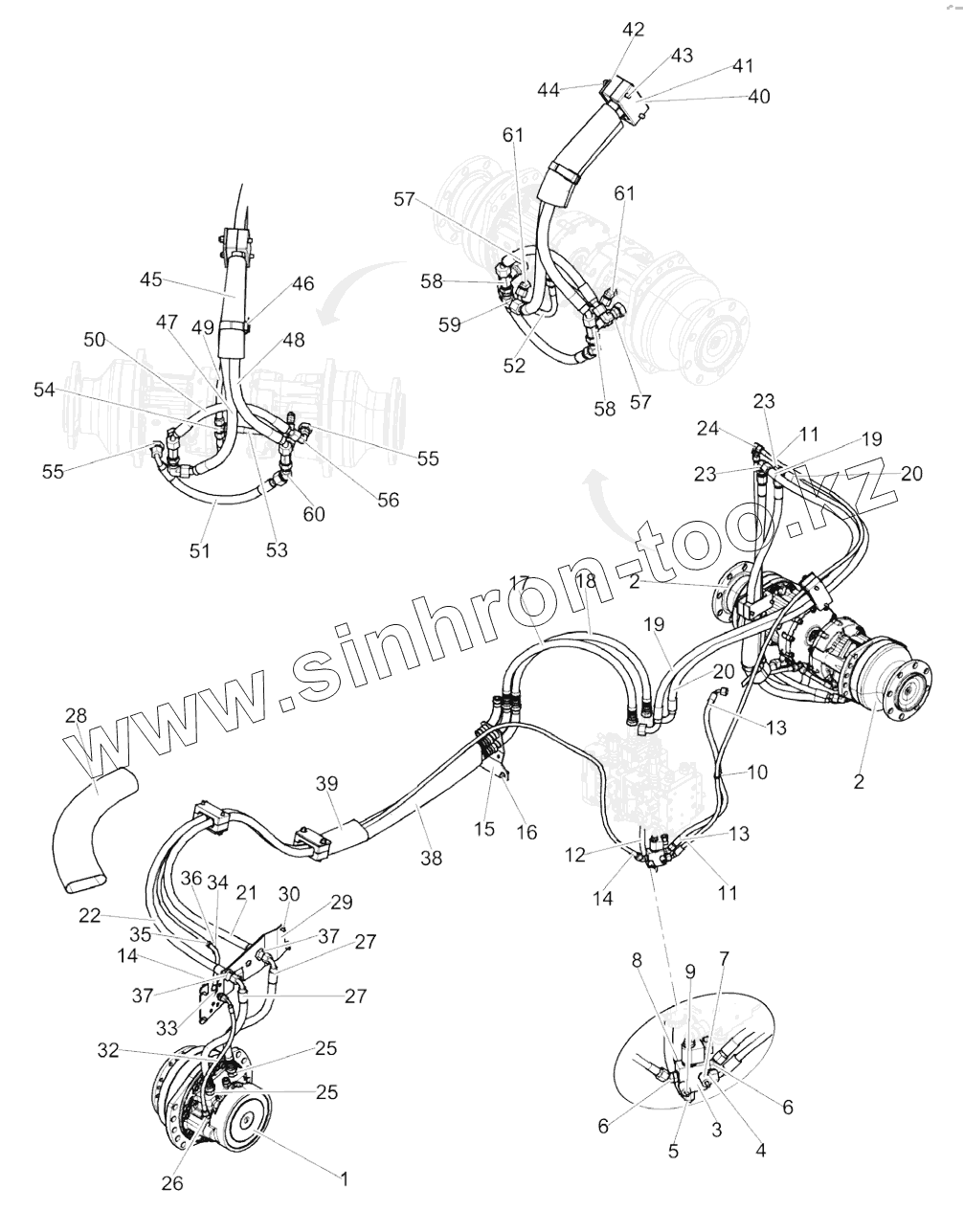

Каталог запасных частей к технике: DYNAPAC CC4200C VI. Propulsion system
1
2
2
3
4
5
6
6
7
8
9
10
11
11
12
13
13
14
14
15
16
17
18
19
19
20
20
21
22
23
23
24
25
25
26
27
27
28
29
30
32
33
34
35
36
37
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
55
56
57
57
58
58
59
60
61
61
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4812123057 | Hydraulic motor | |
| 2 | 4812123246 | Hydraulic motor | |
| 3 | 4812123055 | Hydraulic valve | |
| 4 | 4700791409 | Straight connector orfs | |
| 5 | 4700791846 | Adapter | |
| 6 | 4700792658 | Elbow 45° | |
| 7 | 4700355704 | Spacer sleeve | |
| 8 | 4700904228 | Steel plain washer | |
| 9 | 4700500089 | Screw | |
| 10 | 4700313041 | Cable tie | |
| 11 | 4812126611 | Hydraulic hose | |
| 12 | 4812127665 | Hydraulic hose | |
| 13 | 4812123966 | Hydraulic hose | |
| 14 | 4812125081 | Hydraulic hose | |
| 15 | 4812124527 | Pipe assembly | |
| 16 | 4700500509 | Screw | |
| 17 | 4812124480 | Hydraulic hose | |
| 18 | 4812124481 | Hydraulic hose | |
| 19 | 4812126612 | Hydraulic hose | |
| 20 | 4812126613 | Hydraulic hose | |
| 21 | 4812125084 | Hydraulic hose | |
| 22 | 4812125085 | Hydraulic hose | |
| 23 | 4812123395 | Bulkhead union elbow 90 ORFS | |
| 24 | 4700792744 | Bulkhead union elbow | |
| 25 | 4700791823 | Adapter | |
| 26 | 4700791547 | Straight connector orfs | |
| 27 | 4812123982 | Hydraulic hose | |
| 28 | 4700792702 | Hose guard | |
| 29 | 4812124823 | Holder | |
| 30 | 4700500505 | Screw | |
| 32 | 4812124762 | Hydraulic hose | |
| 33 | 4812122416 | Elbow | |
| 34 | 4812115581 | Spacer sleeve | |
| 35 | 4700921046 | Clamp | |
| 36 | 4700500504 | Hexagon screw with flange | |
| 37 | 4700792453 | Nut | |
| 38 | 4812110272 | Hose guard | |
| 39 | 4700792701 | Hose guard | |
| 40 | 4700343872 | Hose clamp | |
| 41 | 4700343732 | Hose clamp | |
| 42 | 4700335914 | Cover plate | |
| 43 | 4700904056 | Stud | |
| 44 | 4700792817 | Hexagon nut with flange | |
| 45 | 4700792701 | Hose guard | |
| 46 | 4700792061 | Strap | |
| 47 | 4812126618 | Hydraulic hose | |
| 48 | 4812126619 | Hydraulic hose | |
| 49 | 4812126621 | Hydraulic hose | |
| 50 | 4812126622 | Hydraulic hose | |
| 51 | 4812126623 | Hydraulic hose | |
| 52 | 4812126625 | Hydraulic hose | |
| 53 | 4812126626 | Hydraulic hose | |
| 54 | 4700791546 | T-connector | |
| 55 | 4700791850 | Adapter | |
| 56 | 4700791745 | Elbow 90, O-ring with swivel | |
| 57 | 4700904578 | Straight connector | |
| 58 | 4811000341 | Tee-connector | |
| 59 | 4700904766 | Elbow connector | |
| 60 | 4700904781 | Adapter | |
| 61 | 4700792658 | Elbow 45° |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
