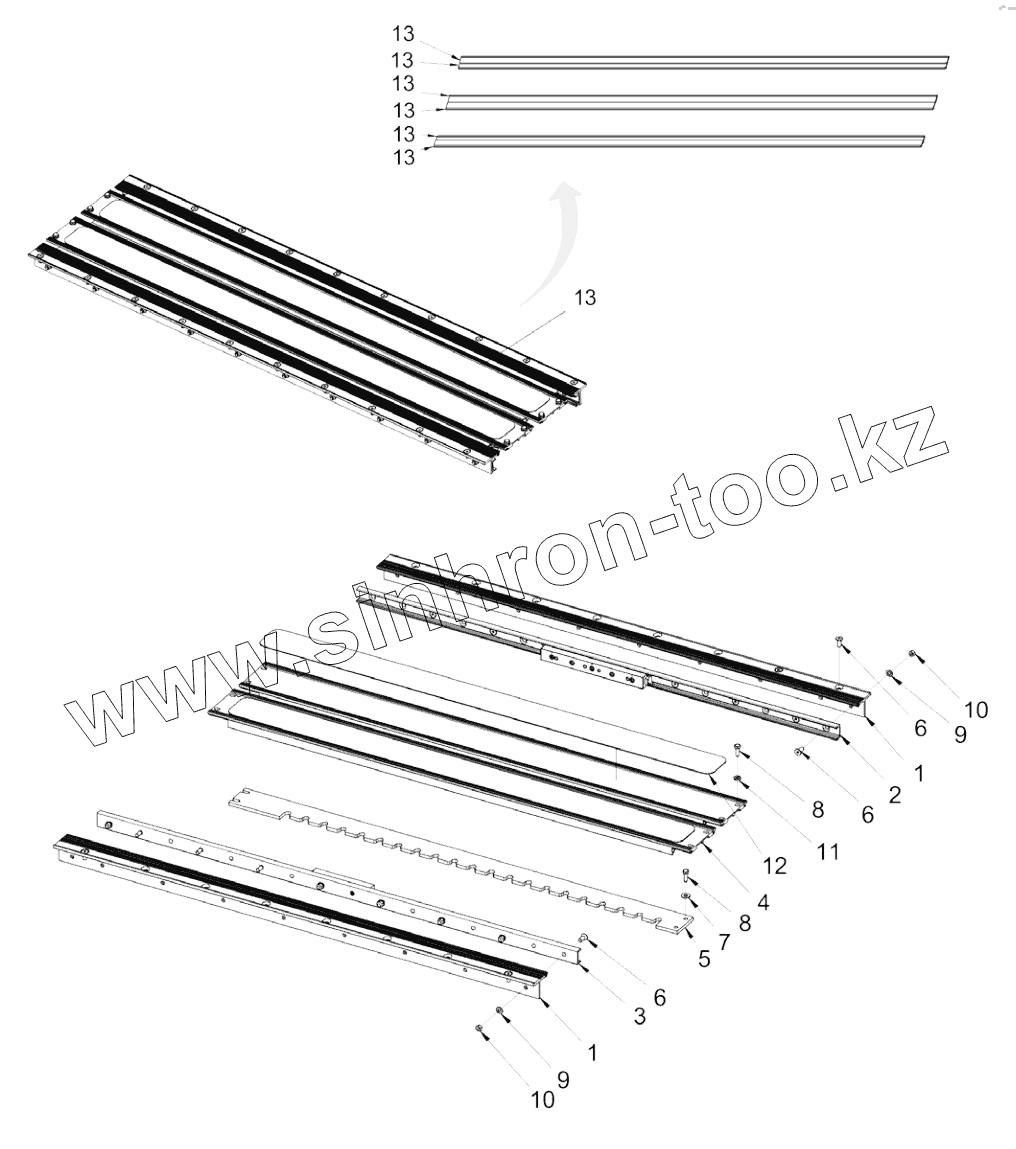

Позиция на иллюстрации
Заводской номер детали
Название детали
1
4812122834
Holder
2
4812122839
Linear bearing
3
4812122838
Linear bearing
4
4812122843
Cover
5
4812122846
Locking rail
6
4700513003
Screw
7
4700791304
Steel plain washer
8
4700500021
Hex. screw
9
4700904229
Washer
10
4700570005
Hex. nut
11
4700904556
Steel plain washer
12
4812123721
Slip protection
13
4812120557
Sealing brush
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
