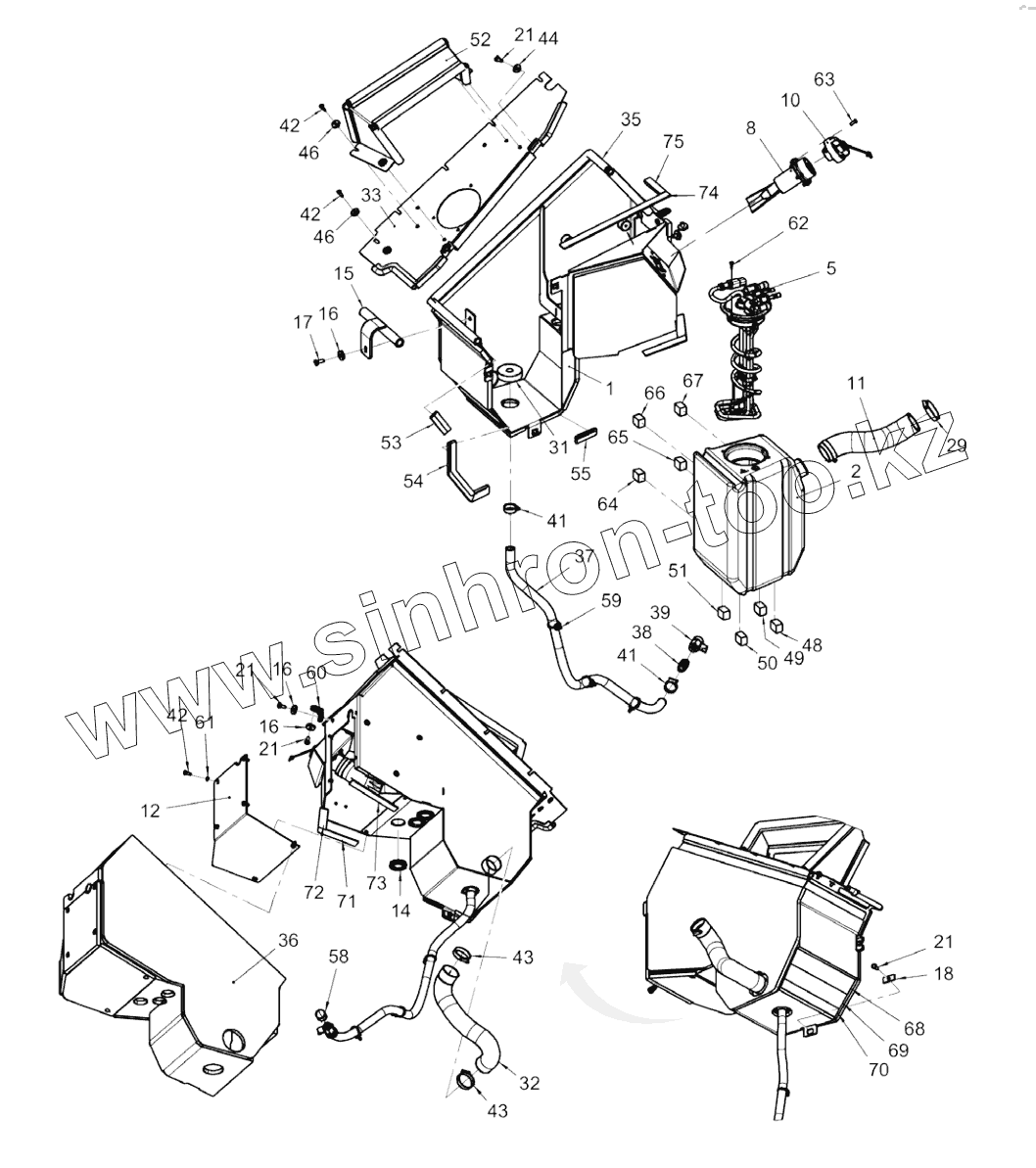

Каталог запасных частей к технике: DYNAPAC CC4200C VI. DEF Equipment module
62
46
46
48
49
50
51
52
53
54
55
58
59
60
61
44
63
64
65
66
67
68
69
70
71
72
73
74
75
18
2
5
8
10
11
12
14
15
16
16
16
17
1
21
21
21
21
29
31
32
33
35
36
37
38
39
41
41
42
42
42
43
43
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 62 | 4700904653 | Screw | |
| 46 | 4700904735 | Steel plain washer | |
| 47 | Aluminiumtape | Aluminium tape | |
| 48 | 4700202042 | Rubber strip | |
| 49 | 4700202042 | Rubber strip | |
| 50 | 4700202042 | Rubber strip | |
| 51 | 4700202042 | Rubber strip | |
| 52 | 4812126429 | Cover | |
| 53 | 4700791597 | Rubber strip | |
| 54 | 4700791597 | Rubber strip | |
| 55 | 4700791597 | Rubber strip | |
| 58 | 4700331109 | Cap | |
| 59 | 4700792441 | Cable tie with holder | |
| 60 | 4812126909 | Bracket | |
| 61 | 4700904228 | Steel plain washer | |
| 44 | 4700904640 | Washer | |
| 63 | 4700904206 | Screw | |
| 64 | 4700202042 | Rubber strip | |
| 65 | 4700202042 | Rubber strip | |
| 66 | 4700202042 | Rubber strip | |
| 67 | 4700202042 | Rubber strip | |
| 68 | 4812130763 | Insulation | |
| 69 | 4812130763 | Insulation | |
| 70 | 4812130763 | Insulation | |
| 71 | 4700297018 | Rubber strip | |
| 72 | 4700297018 | Rubber strip | |
| 73 | 4700297018 | Rubber strip | |
| 74 | 4700297018 | Rubber strip | |
| 75 | 4700202046 | Rubber strip | |
| 18 | 4812126705 | Washer | |
| 2 | 4812123460 | Tank | |
| 5 | 4812124315 | Multi function tank head unit | |
| 5.1 | 4812163187 | Sensor kit | |
| 5.2 | 4812160953 | O-ring | |
| 5.3 | 4812160954 | Suction filter | |
| 8 | 4812123459 | Adapter | |
| 10 | 4812123512 | Cap | |
| 11 | 4812123529 | Urea hose | |
| 12 | 4812125980 | Cover | |
| 14 | 4812114465 | Grommet with membrane | |
| 15 | 4812125981 | Bracket | |
| 16 | 4700904734 | Washer | |
| 17 | 4700500053 | Hex. screw | |
| 1 | 4812125979 | DEF Box | |
| 21 | 4700500019 | Hex. screw | |
| 29 | 4700313010 | Hose clamp | |
| 31 | 4812128785 | Insulation | |
| 32 | 4812126062 | Aluminium flex tube | |
| 33 | 4812126327 | Cover | |
| 35 | 4700288129 | Rubber edge trim | |
| 36 | 4812129651 | Heat protection, Kit | |
| 37 | 4812122243 | Coolant hose | |
| 38 | 4700903885 | Adapter, plastic | |
| 39 | 4700924986 | Valve | |
| 41 | 4700313006 | Hose clamp | |
| 42 | 4700500013 | Hex. screw | |
| 43 | 4700313009 | Hose clamp |
