Каталог запасных частей к технике: DYNAPAC CC4000 VI. Fan module

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CA1400 (2016) CA2500D (2016) CA2500D (2018) CA2500D-PD (2018) CA250D (2011) CA252D (2008) CA2800D (2017) CA3500D (2016) CA4000D (2017) CA4000D (2020) CA4600D (2019) CA5500D (2015) CA610PD (2014) CA6500 (2018) CC1000 (2019) CC1100CC (2015) CC1200C Plus (2015) CC1200C VI (2018) CC1200CC (2018) CC125 (2015) CC1250 (2015) CC1300 (2018) CC1300C (2015) CC1300C (2016) CC2200 (2018) CC2200 (2020) CC2300C (2018) CC3300 (2018) CC4000 VI (2018) CC4200C VI (2020) CC5200C (2018) CC6200 VI (2020) CC800 (2019) CC900 (2018) CC900S (2018) CG2300 (2018) CP142 (2015) CP275 (2014) Dynapac CA1500 (2017) Dynapac CA2500 (2012) Dynapac CA302D (2008) Dynapac CA302D (2010) Dynapac CA5000D (2017) Dynapac CC142 (2009) Dynapac CC2200C (2015) Dynapac CC224HF (2012) Dynapac CC322 (2008) Dynapac CC422 (2010) Dynapac CC5200 (2014) Dynapac CC5200 (2017) Dynapac CC5200 (2017) Dynapac CC5200 VI (2017) Dynapac CC800 (2013) Dynapac CC800 (2014) Dynapac F1200C/CS (2018) Dynapac F1200CS/CS (2018) Dynapac F1800C (2018) Dynapac F181C (2010) Dynapac PL2000LS (2010) Dynapac PL2000LS (2010) Dynapac PL2000S (2010) Dynapac PL2000S (2010) Dynapac SCC1300 (2014) Dynapac SD2500C (ч. 1) (2018) Dynapac SD2500C (ч. 2) (2018) Dynapac SD2550C (ч. 1) (2018) Dynapac SD2550C (ч. 2) (2018) F2500C (2018) SD2550CS (2015)

Схема > Не выбрано 4812160752 Service kit, 50h 4812161474 Service kit, 500h 4812161475 Service kit, 1000h 4812161476 Service kit, 2000h 4812155792 Eccentric shaft kit 4700938891 Drum rotation kit 4812161597 Shock absorber kit, drum 4812161594 Scraper blade kit Frame and hitch Front frame module Cover assembly Drum cover module Hitch module 4812117737 Articulated joint Rear frame module Front ending module, offset Cover plates, front ending Step and handle, front right Rear ending module Cover plates, rear ending Scrapers Scraper module 4700394340 Scraper bracket, cpl Grab handle, lift Bracket module Bracket module Grab handle, lift Grab handle module Grab handle, release Bracket module Bracket module Sprinkler system Sprinkler pump module Water tank module, offset Filling pipe module Locking device Sprinkler hoses Scraper module, with nozzles Sprinkler tank module, rear Sprinkler tank, rear Sprinkler hose module, extra tank rear Drum Drum drive Drum bearing Drum suspension Engine assembly Engine bracket module Belt guard module 4812124294 Engine QSF 3.8 T4 Air filter module Exhaust system module Cooling system Cooler stand module Cooling air casing Charge air cooler mounted Water cooler system Expansion tank module Fuel system Fuel tank module Fuel hose assembly DEF/Urea system DEF Equipment module Urea pump module Hose kit, urea Engine hoods Engine hood module right Engine hood module left Engine hood module center Rear frame cover module, right Rear frame cover module, left Expansion tank cover module Engine hoods Engine hood module right Engine hood module left Engine hood module center Rear frame cover module, left Rear frame cover module, right Hydraulic system, filter, oil and leak - Std To 022079, Eco To 021550 Hydraulic system, filter, oil and leak - Std From 022080, Eco From 021551 Main hydraulic valve, cpl 4812123244 Hydraulic valve Hydraulic pump & connectors To 022079, Eco To 021550 4700390602 Hydraulic pump 4812155785 Hydraulic pump Rotating group, cpl Valve block, cpl Control module Flushing valve 4812155786 Hydraulic pump Rotary group, cpl Valve block, cpl 4812155787 Hydraulic pump Rotary group, cpl Valve block, cpl Hydraulic pump & connectors From 022080, Eco From 021551 Hydraulic tank mounted Propulsion system Vibration system 4700395915 Hydraulic motor Vibration Hydraulic offset steering 4812123052 Hydraulic cylinder Hydraulic system, fan & steering Fan module Hose bracket, cross sliding Brake system Electric system, main harness Fuse and relay central module Ecu module Back-up alarm module Cable harnesses, speed, frequency and offset Swith module, 0-position Power supply, std Battery shelf module Battery holder Power supply, cab Driving-, direction- & Licence plate lights Steering column switch module Driving lights module Turn signals Registration plate light Driving lights module, left rear Driving lights module, right rear Rotating beacon Drum edge lights Working lights Rops/Cab Cab module 4812122865 Cab asymmetric comfort Roof edges Windscreen and wipers, front Ceiling, lower panels Screens, wipers and switches, cab right side 4812125328 Sliding window Interior, celing (lights, nozzles, hammer, hook, switch 2&3) Ventilation hoses, rear washer/wiper, power sockets Interior, front (air channel, loud speakers, antenna, relays, switch 1) AC Box Air condition installation (ACC) Door, left 4812122883 Door 4812125321 Sliding window, left Horn, power converter, protections Rear screen 4812122866 Cab asymmetric std Heater installation Rear screen ROPS module 4812122867 ROPS Handrails, harness, power sockets Handrail assembly Roof edges Rear covers, storage Manual box Mirrors Mirrors Seat frame module Seat frame adapter module Control module, sliding/turning Floor cassette module Seat, galon suspensioned Seat comfort, fabric suspensioned Seat comfort, galon suspensioned Seat belt 2" Seat belt 2" with reminder Seat belt 3" Seat belt 3" with reminder Control module, 6 buttons Forward-reverse control module Display module Instrument panel cover module SMV sign Fire extinguisher Plain Dynapac decals, kit Color Dynapac Air conditioning Condensor module Drying filter module 4812114257 Drying filter assy Compressor module Refrigerant hose kit Car stereo module 12V Asphalt temp meter

1

2

3

4

5

6

7

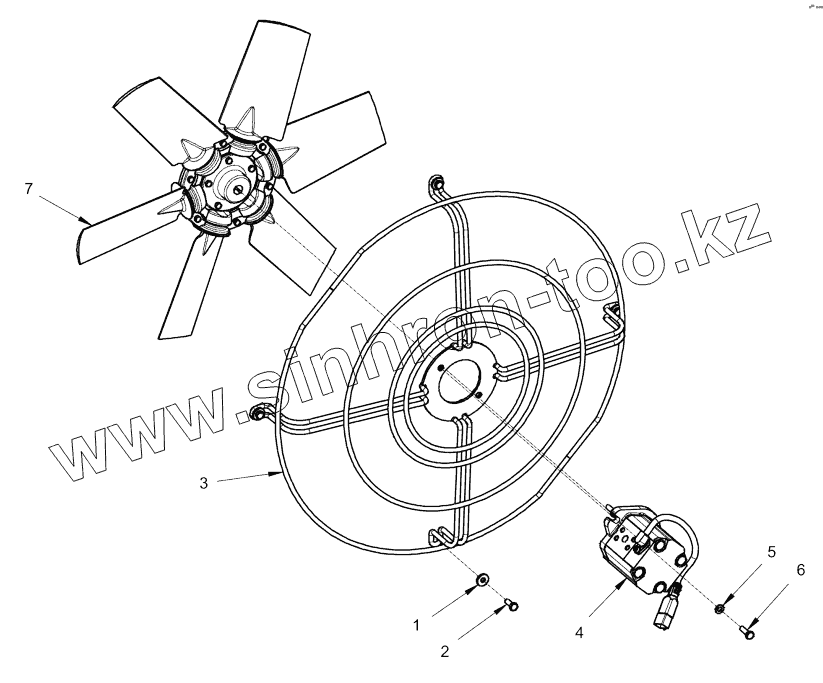

Позиция на иллюстрации	Заводской номер детали		Название детали
1	4700904640		Washer
2	4700500053		Hex. screw
3	4812127221		Bracket
4	4812121764		Hydraulic motor
5	4700904229		Washer
6	4700500021		Hex. screw
7	4812113679		Fan

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
