Каталог запасных частей к технике: DYNAPAC CC3300. Platform with 4-post ROPS

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CA1400 (2016) CA2500D (2016) CA2500D (2018) CA2500D-PD (2018) CA250D (2011) CA252D (2008) CA2800D (2017) CA3500D (2016) CA4000D (2017) CA4000D (2020) CA4600D (2019) CA5500D (2015) CA610PD (2014) CA6500 (2018) CC1000 (2019) CC1100CC (2015) CC1200C Plus (2015) CC1200C VI (2018) CC1200CC (2018) CC125 (2015) CC1250 (2015) CC1300 (2018) CC1300C (2015) CC1300C (2016) CC2200 (2018) CC2200 (2020) CC2300C (2018) CC3300 (2018) CC4000 VI (2018) CC4200C VI (2020) CC5200C (2018) CC6200 VI (2020) CC800 (2019) CC900 (2018) CC900S (2018) CG2300 (2018) CP142 (2015) CP275 (2014) Dynapac CA1500 (2017) Dynapac CA2500 (2012) Dynapac CA302D (2008) Dynapac CA302D (2010) Dynapac CA5000D (2017) Dynapac CC142 (2009) Dynapac CC2200C (2015) Dynapac CC224HF (2012) Dynapac CC322 (2008) Dynapac CC422 (2010) Dynapac CC5200 (2014) Dynapac CC5200 (2017) Dynapac CC5200 (2017) Dynapac CC5200 VI (2017) Dynapac CC800 (2013) Dynapac CC800 (2014) Dynapac F1200C/CS (2018) Dynapac F1200CS/CS (2018) Dynapac F1800C (2018) Dynapac F181C (2010) Dynapac PL2000LS (2010) Dynapac PL2000LS (2010) Dynapac PL2000S (2010) Dynapac PL2000S (2010) Dynapac SCC1300 (2014) Dynapac SD2500C (ч. 1) (2018) Dynapac SD2500C (ч. 2) (2018) Dynapac SD2550C (ч. 1) (2018) Dynapac SD2550C (ч. 2) (2018) F2500C (2018) SD2550CS (2015)

Схема > Не выбрано 4812159352 Service kit, 50h Plus 4812159381 Service kit, 500h 4812159382 Service kit, 500h Plus 4812159383 Service kit, 1000h 4700945722 Eccentric shaft kit 4700945908 Scraper kit 4812156382 Shock absorber kit, split drum Front frame Front frame module 4700391023 Steering cylinder Tank structure module Sprinkler tank structure mount 4700391307 Cover Hose support Hitch module 4812119139 Steering hitch Filling pipe Locking device module Grab handle module Rear frame Rear frame Cover Engine structure, module Engine structure 4812121575 Engine cover, left 4812121578 Engine cover, right Noise suppression plates 4700396638 Noise suppression kit, covers Sprinkler system, To A021232 Sprinkler pump module Sprinkler pump Sprinkler pump, backup Sprinkler pump module (2 pumps) Sprinkler pump mounted (2 pumps) Water hoses Sprinkler system, From A021233 Sprinkler pump module Sprinkler pump Sprinkler pump, backup Sprinkler pump module (2 pumps) Sprinkler pump mounted (2 pumps) End frame, front End frame, front Frame assy Fork Cover plate Hose clamp Step, vibration side Scraper module, without nozzles Scraper assy Scraper module, with nozzles Scraper assy with nozzles Scraper assy 4700394340 Scraper bracket, cpl Grab handle, release Grab handle, release Grab handle, lift Grab handle, lift offset/cocoa mat Eyelet module Cocoa mat module Cocoa mat assembly Cocoa mat bracket module Cocoa mat bracket Process mirrors End frame, rear End frame, rear End frame, rear offset Frame Connection block Micro switch Weight module SMV-sign Drum Split drum module Propulsion motor module Drive unit, cpl 4700392523 Gear box 4700395922 Hydraulic motor Vibration motor module Vibrating unit 4700390605 Hydraulic motor Motor Vibration motor module Vibrating unit Engine Engine 4812114075 Diesel engine TCD3.6 L04 IIIB/T4i Clutch module Air cooler hoses Water cooler hoses Air cleaner module Air cleaner hoses Exhaust pipe module Fuel hose module Charge air cooler Water cooler Expansion tank assembly Coolant hoses Belt guard module Hydraulic hoses, front drum Hydraulic hoses, rear drum Std Hydraulic hoses, rear drum Offset Hydraulic valve module, offset/combi Hydraulic valve 4700391017 Hydraulic valve Hydraulic system, frame Hydraulic system, engine room Fan assembly Hydraulic pump module Hydraulic pump assembly Hydraulic pump module Hydraulic pump 4700392521 Hydraulic pump 4812156655 Hydraulic pump Rotating group, cpl Valve block, cpl Control module Flushing valve 4812156656 Hydraulic pump Rotary group, cpl Valve block, cpl 4812155787 Hydraulic pump Rotary group, cpl Valve block, cpl Hydraulic valve module Hydraulic valve 4700395924 Hydraulic valve Radiator assembly Flow divider module Flow divider assy Hydraulic system, steering Std Hose bracket Hydraulic steering, sliding seat Carrier Steering, slideable Electric cables, power supply Battery disconnector Battery disconnector Holder module, battery Electric cables, power supply cab Electric cables, engine - ECU Standard ECU module Standard ECU assembly Electric cables, sensors/ horn/ back-up alarm Horn module Horn Back-up alarm module Back-up alarm Driving & side direction lights Driving lights, front Steering column switch module Cable harness and switch module Registration plate light module Registration plate light Driving lights, rear Turn signals Rotating beacon, working light Rotating beacon module Working light module H3 Drum edge lights Bracket Bracket Asphalt temp meter Temp sensor module Platform, no cab Platform with 4-post ROPS 4812119368 Platform with 4-post ROPS Roof ROPS interior Decals basic kit Manual box Hand rail, left Hand rail Hand rail, right Hand rail Hand rail Lunch box module Cab, asymmetric 4812119359 Cab, cpl Screen front and rear Corner screens left and AC hood 24V socket and air nozzels Wipers front/rear and front ceiling Cab frame harness Heating installation Heater cover plate AC-kit Switch kit Door sliding screens Door complete Screens asymmetric right Lower screen and water system, left Lower screens and water system, right 4812119358 Cab comfort, cpl Interior Cab Evaporator AC-ACC 4812113623 Evaporator, cpl ACC kit 4812113624 ACC kit Decals basic kit Cab noise cover Rear view mirror Drivers seat Seat frame structure 4700391163 Steering column Seat, galon suspensioned Seat comfort, galon suspensioned Seat comfort, fabric suspensioned Seat belt 2" Seat belt 2" with reminder Seat belt 3" Seat belt 3" with reminder Controls, slidable and turning Display unit Drive control module Drive control Control handle Cross sliding Control panel cover Seat frame adapter module, rotating Decals Plain Dynapac decals, kit Air conditioning Compressor module Condensor module Condensor AC-ACC, Hose kit Hose kit Hose kit Compressor Tachograph, Car stereo Tachograph with holder Car stereo module 12V Fire extinguisher/First Aid Cushion Fire extinguisher assembly Edge cutter Edge cutter, module 4700390998 Edge cutter, cpl 4700390999 Holder 4700391009 Bearing unit 4700387275 Hydraulic cylinder Cutting disc module Pressing roller, module Hydraulic valve module Hydraulic valve 4700391018 Hydraulic valve Disc/Roller holder Dyn@Link module 4812013038 GPS module Dyn@lyzer

1

2

3

4

5

6

7

8

9

11

12

13

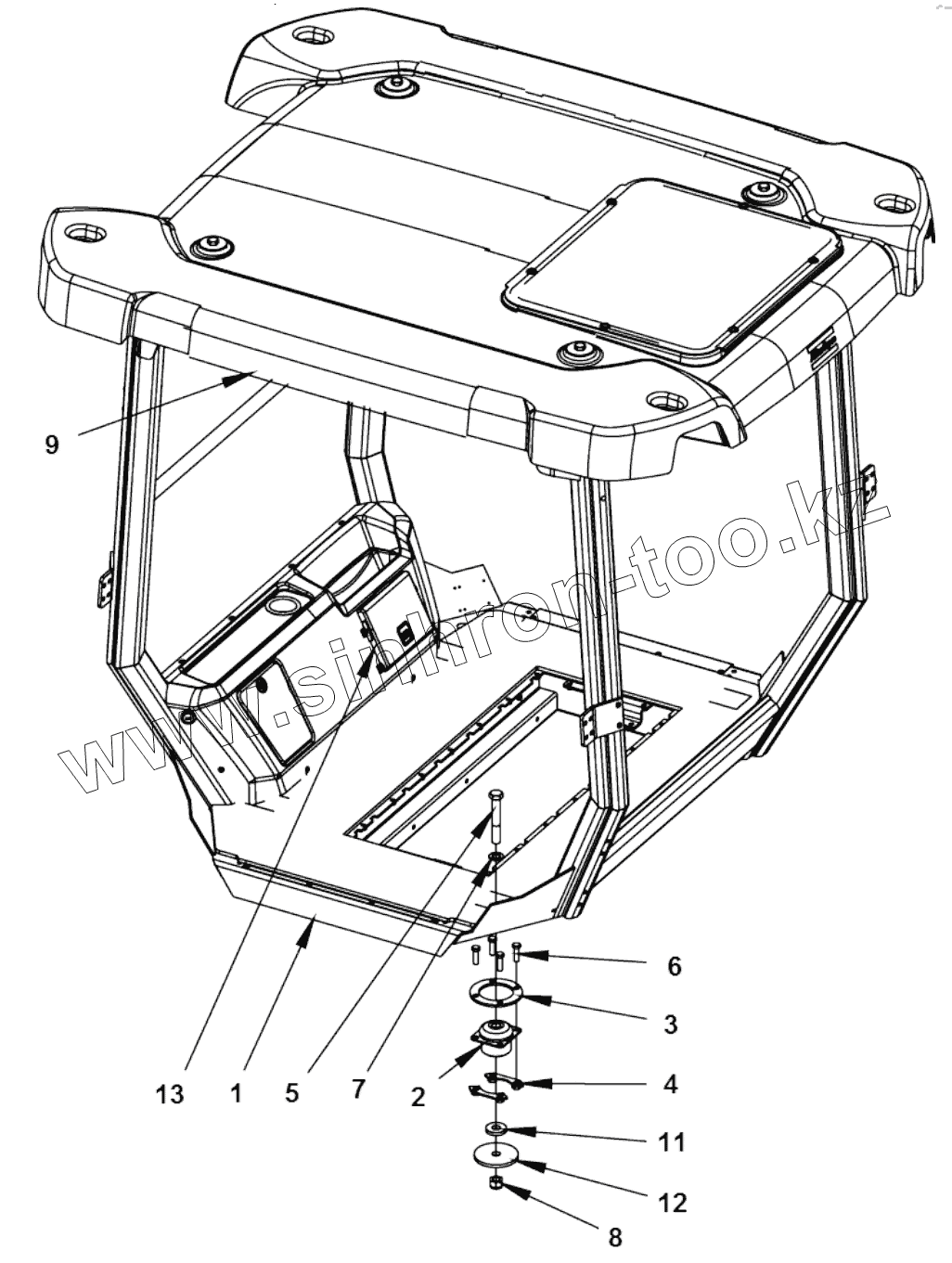

Позиция на иллюстрации	Заводской номер детали		Название детали
1	4812119368		Platform with 4-post ROPS
2	4812116884		Shock absorber
3	4700359998		Back-up ring
4	4700393525		Holder
5	4700902282		Screw
6	4700500194		Hex. screw
7	4700904233		Steel plain washer
8	4700901145		Lock nut
9	Decals basic kit		Decals basic kit
11	4700927410		Washer
12	4812116867		Spacer
13	Manual box		Manual box
