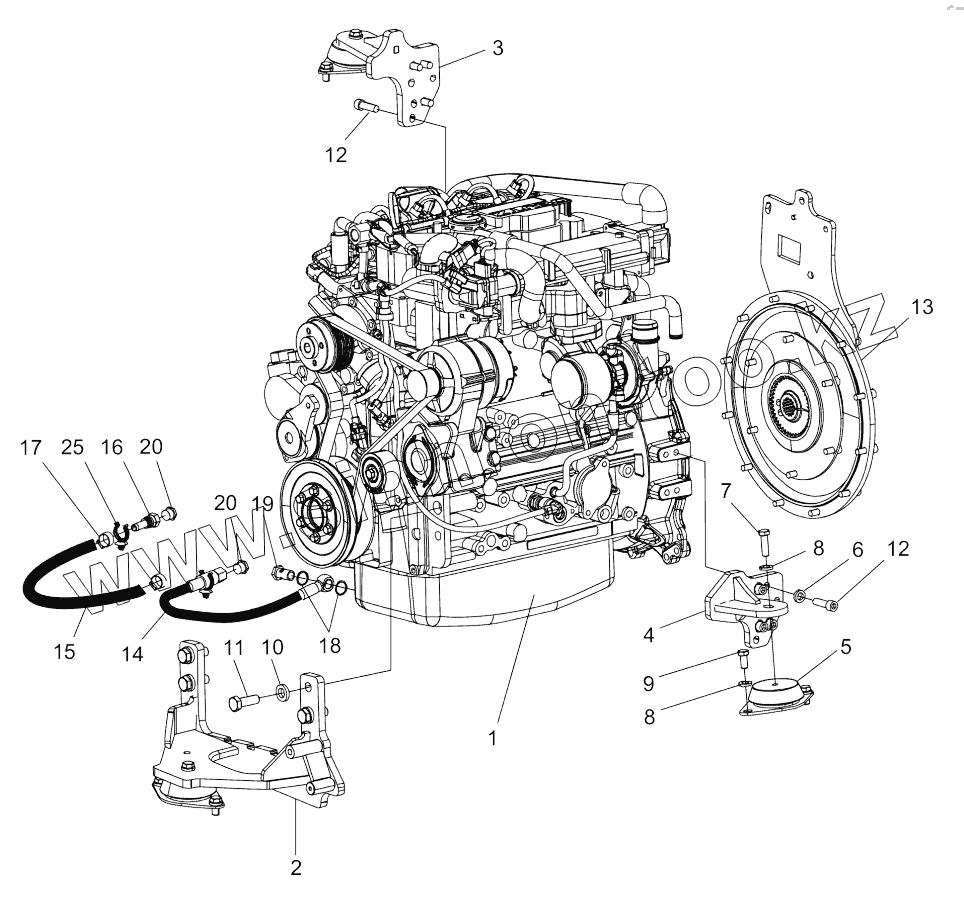

Позиция на иллюстрации
Заводской номер детали
Название детали
1
4812114075
Diesel engine
2
4812114627
Bracket
3
4812114073
Bracket
4
4812114072
Bracket
5
4812114631
Shock absorber
6
4700358230
Spacer sleeve
7
4700500194
Hex. screw
8
4700904703
Plain washer
9
4700500051
Hex. screw
10
4700904558
Washer
11
4700500102
Hex. screw
12
4700508063
Screw
13
Clutch module
Clutch module
14
4812117693
Hydraulic hose
15
4812118968
Coolant hose
16
4812118501
Hose connection
17
4700313003
Hose clamp
18
4700330333
Copper washer
19
4700904292
Hollow screw
20
4700232095
Plug
25
4700394701
Wiring clip
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
