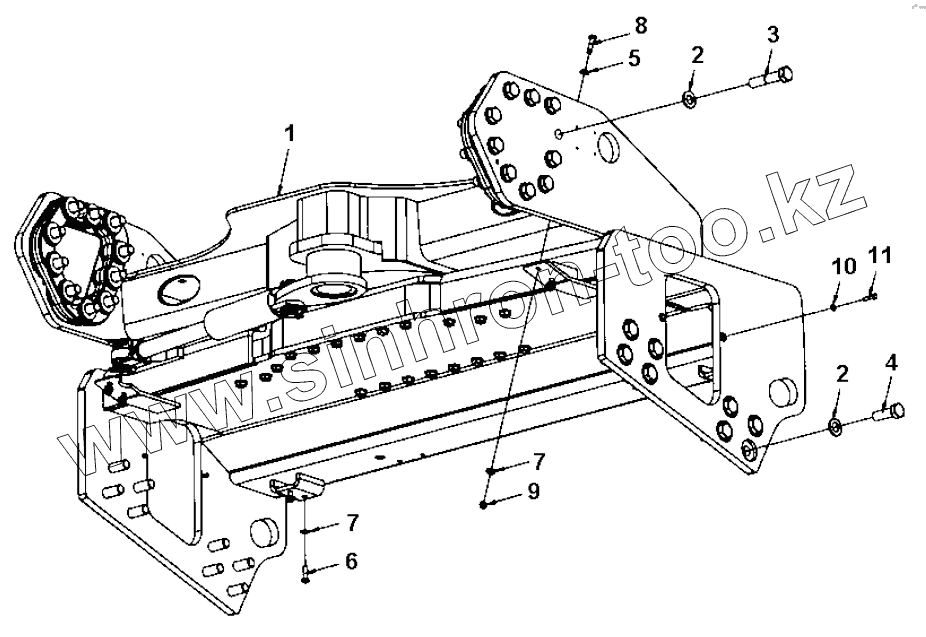

Позиция на иллюстрации
Заводской номер детали
Название детали
1
Operator platform
Operator platform
2
4700904234
Steel plain washer
3
4700500146
Hex. screw
4
4700500289
Hex. screw
5
4700904230
Washer
6
4700500030
Hexagon head screw
7
4700904557
Washer
8
4700500161
Screw
9
4700791172
Lock nut
10
4700904556
Steel plain washer
11
4700500047
Hexagon head screw
