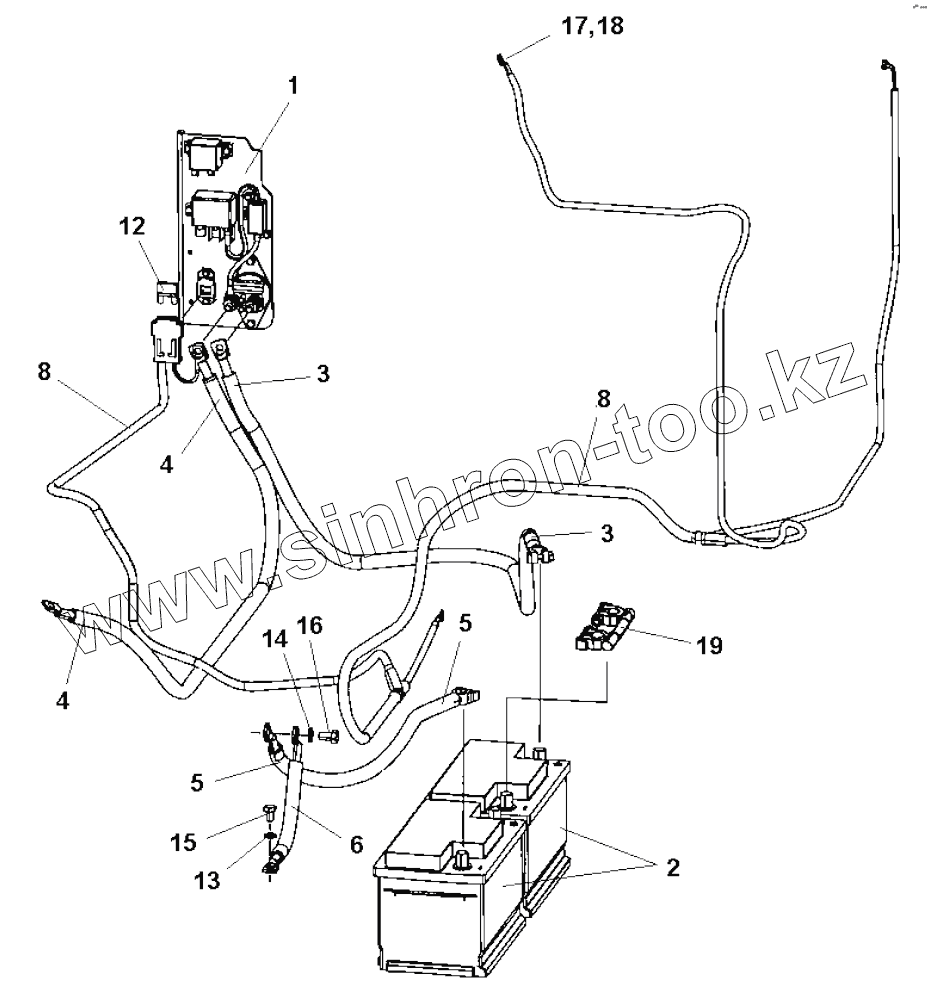

1
2
3
3
4
4
5
5
6
8
8
12
13
14
15
16
17
18
19
Позиция на иллюстрации
Заводской номер детали
Название детали
1
Battery disconnector
Battery disconnector, 2-pole
2
Battery
Battery module
3
4700792610
Battery cable +
4
4700792606
Connection cable, coarse
5
4700792328
Battery cable
6
4700335607
Connection cable, coarse
8
4700394821
Cable harness, power supply
12
4700904039
Fuse
13
4700904637
Washer
14
4700904638
Washer
15
4700500043
Hex. screw
16
4700500035
Hex. screw
17
4700904229
Washer
18
4700570005
Hex. nut
19
4700792684
Battery union cable
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
