  5. 4700395922 Hydraulic motor

Каталог запасных частей к технике: DYNAPAC CC3300. 4700395922 Hydraulic motor

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
2
3
5
6
7
8
9
12
13
14
15
16
17
20
21
23
25
27
30
33
35
36
41
50
51
52
53
54
55
56
57
58
59
60
61

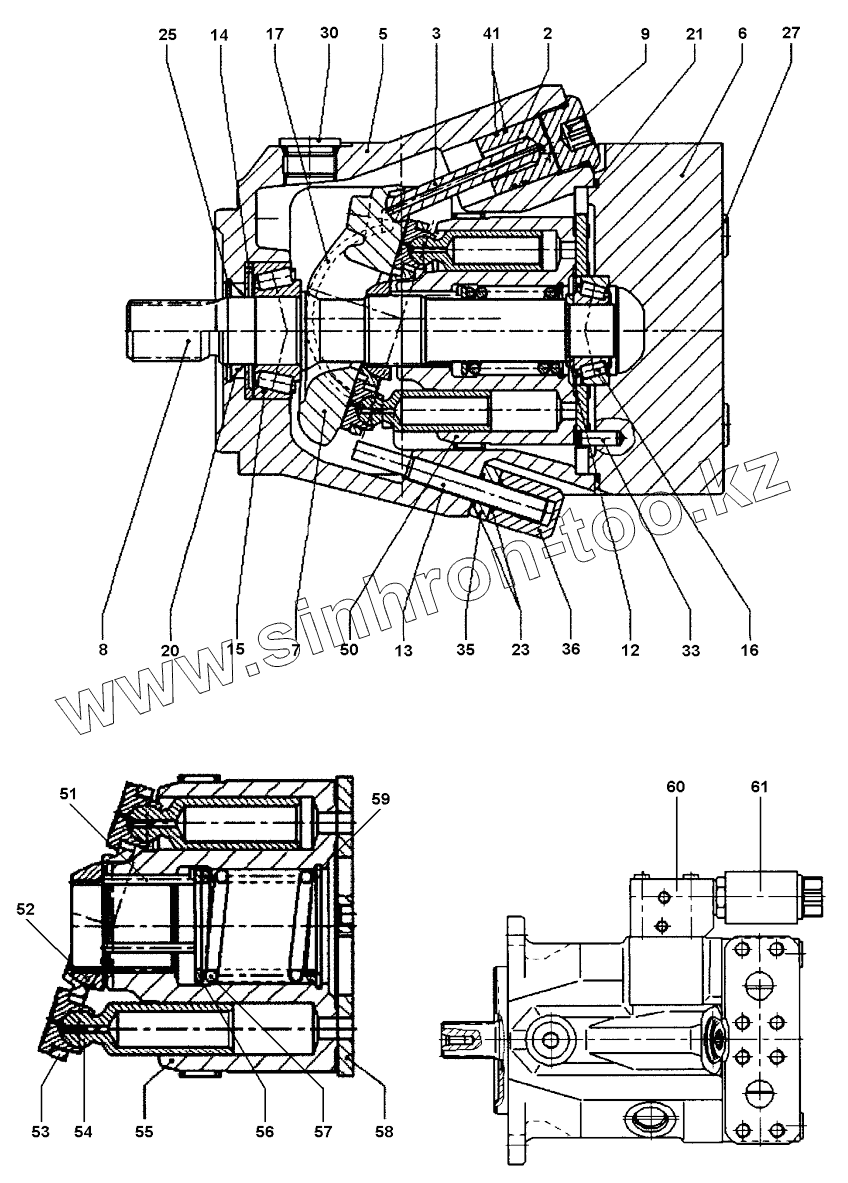

Позиция на иллюстрации Заводской номер детали Название детали
1 Hydraulic motor Hydraulic motor, Cpl
2 Control piston Control piston
3 Piston rod Piston rod
5 Motor housing Motor housing
6 4812156969 Subplate
7 4812156970 Swashplate
8 Drive shaft Drive shaft
9 Locking screw Locking screw
12 Adjustment shim Adjustment shim
13 Stop screw Stop screw
14 Stop ring Stop ring
15 4812156971 Tapered roller bearing
16 4812156972 Tapered roller bearing
17 4812156973 Bearing liner
20 4812156974 Shaft seal ring
21 4812156975 O-ring
23 4812156976 O-ring
25 Retaining ring Retaining ring
27 Socket head screw Socket head screw
30 Locking screw Locking screw
31 Double break-off plug Double break-off plug
33 Cylinder pin Cylinder pin
35 Nut Nut
36 Cap nut Cap nut
41 R-ring R-ring
50 4812156968 Rotary group
51 Pressure pin Pressure pin
52 Retaining ball Retaining ball
53 Retaining plate Retaining plate
54 Piston Piston
55 Cylinder Cylinder
56 Back-up plate Back-up plate
57 Spring Spring
58 Control plate Control plate
59 Seeger v-ring Seeger v-ring
60 4812157352 Valve housing
61 4812156153 Solenoid
