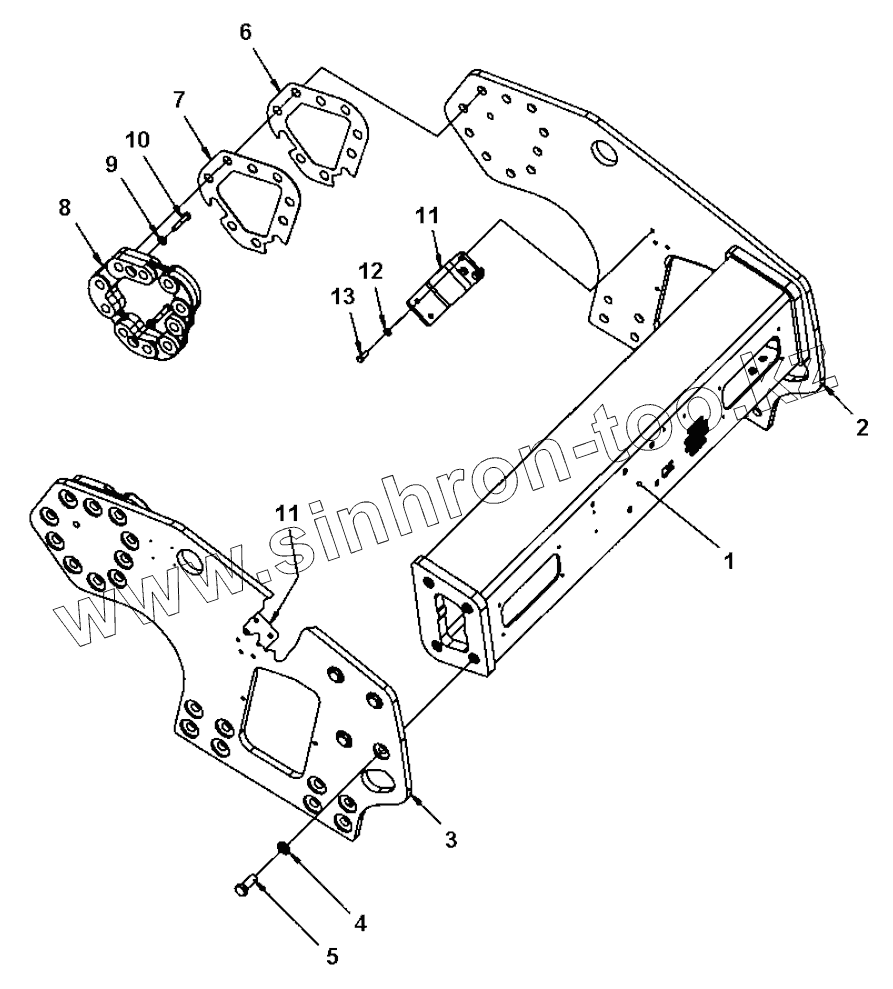

1
2
3
4
5
6
7
8
9
10
11
11
12
13
Позиция на иллюстрации
Заводской номер детали
Название детали
1
4700393112
Crossbeam
2
4700393100
Side plate
3
4700393101
Side plate
4
4700904233
Steel plain washer
5
4700500265
Screw
6
4700392916
Shim
7
4700392917
Shim
8
4700392843
Spacer
9
4700904231
Washer
10
4700500049
Screw
11
4700394787
Holder
12
4700904557
Washer
13
4700500029
Hex. screw
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
