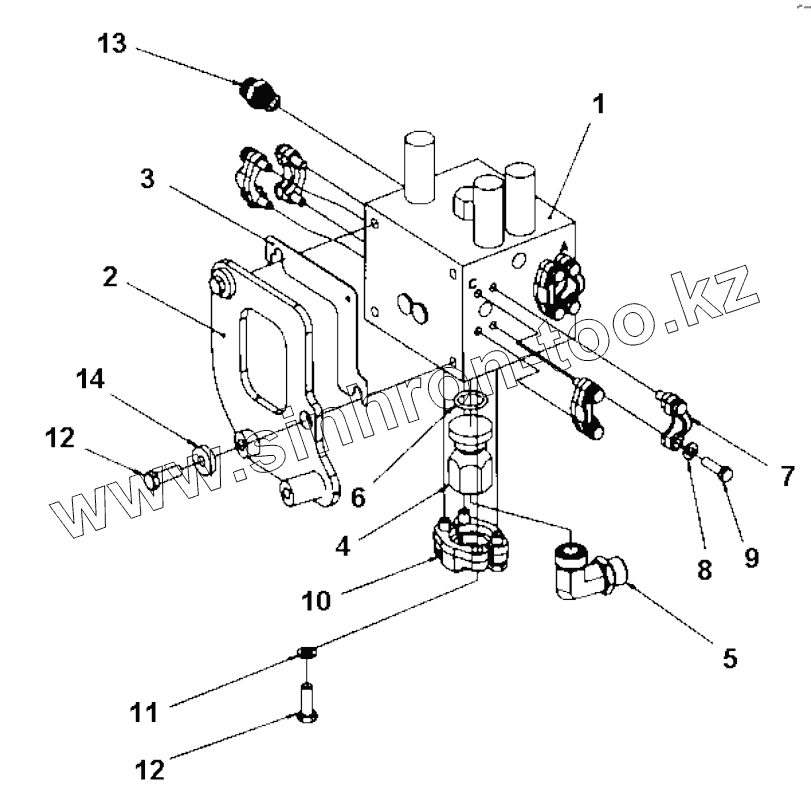

Позиция на иллюстрации
Заводской номер детали
Название детали
1
4700395925
Flow divider
2
4812110328
Bracket
3
4812110329
Shim
4
4700792651
Straight flange connector
5
4700792330
Elbow 90 orfs
6
4700904004
O-ring 90
7
4700900430
Flange half
8
4700904229
Washer
9
4700500022
Hex. screw
10
4700929226
Flange half
11
4700904637
Washer
12
4700500029
Hex. screw
13
4811000119
Straight connector orfs
14
4700904567
Washer
