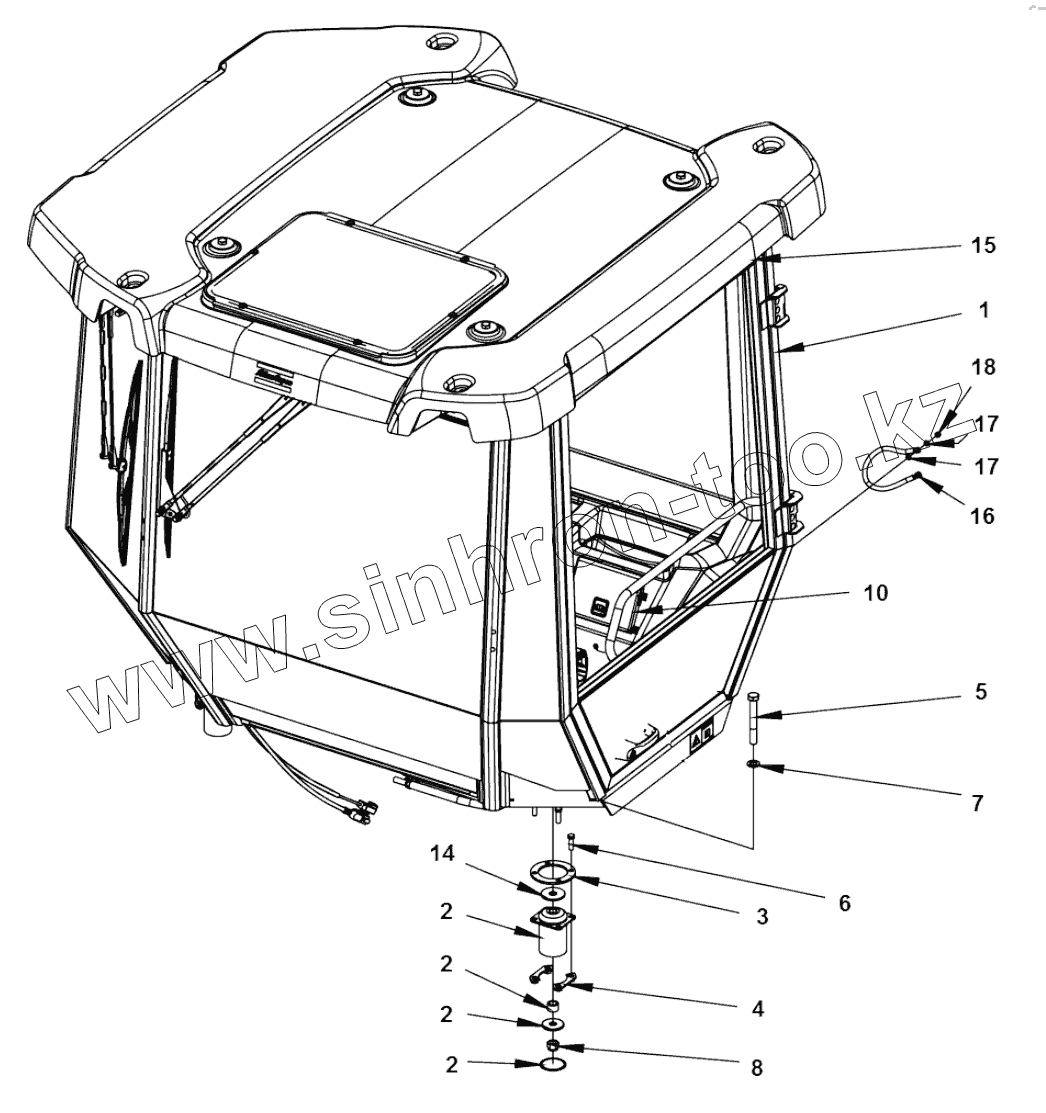

Cab, asymmetric
4812119359 Cab, cpl
Screen front and rear
Corner screens left and AC hood
24V socket and air nozzels
Wipers front/rear and front ceiling
Cab frame harness
Heating installation
Heater cover plate
AC-kit
Switch kit
Door sliding screens
Door complete
Screens asymmetric right
Lower screen and water system, left
Lower screens and water system, right
4812119358 Cab comfort, cpl
Interior Cab
Evaporator AC-ACC
4812113623 Evaporator, cpl
ACC kit
4812113624 ACC kit
Decals basic kit
Cab noise cover
Rear view mirror
Drivers seat
Seat frame structure
4700391163 Steering column
Seat, galon suspensioned
Seat comfort, galon suspensioned
Seat comfort, fabric suspensioned
Seat belt 2"
Seat belt 2" with reminder
Seat belt 3"
Seat belt 3" with reminder
Controls, slidable and turning
Cross sliding
Drive control, cpl (Drive control To A015621)
Drive control To A015621
Drive control module (Drive control From A015622)
Drive control From A015622
Control handle (Drive control From A015622)
Display unit
Control panel cover
Seat frame adapter module, rotating
Decals
Plain Dynapac decals, kit
Air conditioning
Compressor module
Condensor module
Condensor
AC-ACC, Hose kit
Hose kit
Hose kit Compressor
Radio and cd player
Radio and cd player module
Power supply module
Tachograph, Car stereo
Tachograph with holder
Car stereo module 12V
Fire extinguisher/First Aid Cushion
Fire extinguisher assembly
Edge cutter
Edge cutter, module
4700390998 Edge cutter, cpl
4700390999 Holder
4700391009 Bearing unit
4700387275 Hydraulic cylinder
Cutting disc module
Pressing roller, module
Hydraulic valve module
Hydraulic valve
4700391018 Hydraulic valve
Disc/Roller holder
DynaLink module
4812013038 GPS module
Dynalyzer
1
1
2
2
2
2
3
4
5
6
7
8
10
14
15
16
17
17
18
Позиция на иллюстрации
Заводской номер детали
Название детали
1
4812119359
Cab, cpl
1
4812119358
Cab comfort, cpl
2
4812121000
Shock absorber Green
3
4700359998
Back-up ring
4
4700393525
Holder
5
4700903633
Screw
6
4700500194
Hex. screw
7
4700904233
Steel plain washer
8
4700901145
Lock nut
10
Manualbox
Manual box
14
4700345712
Spacer washer
15
Decalsbasickit
Decals basic kit
16
4812120736
Connection cable, coarse
17
4700904229
Washer
18
4700586003
Hexagon lock nut
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
