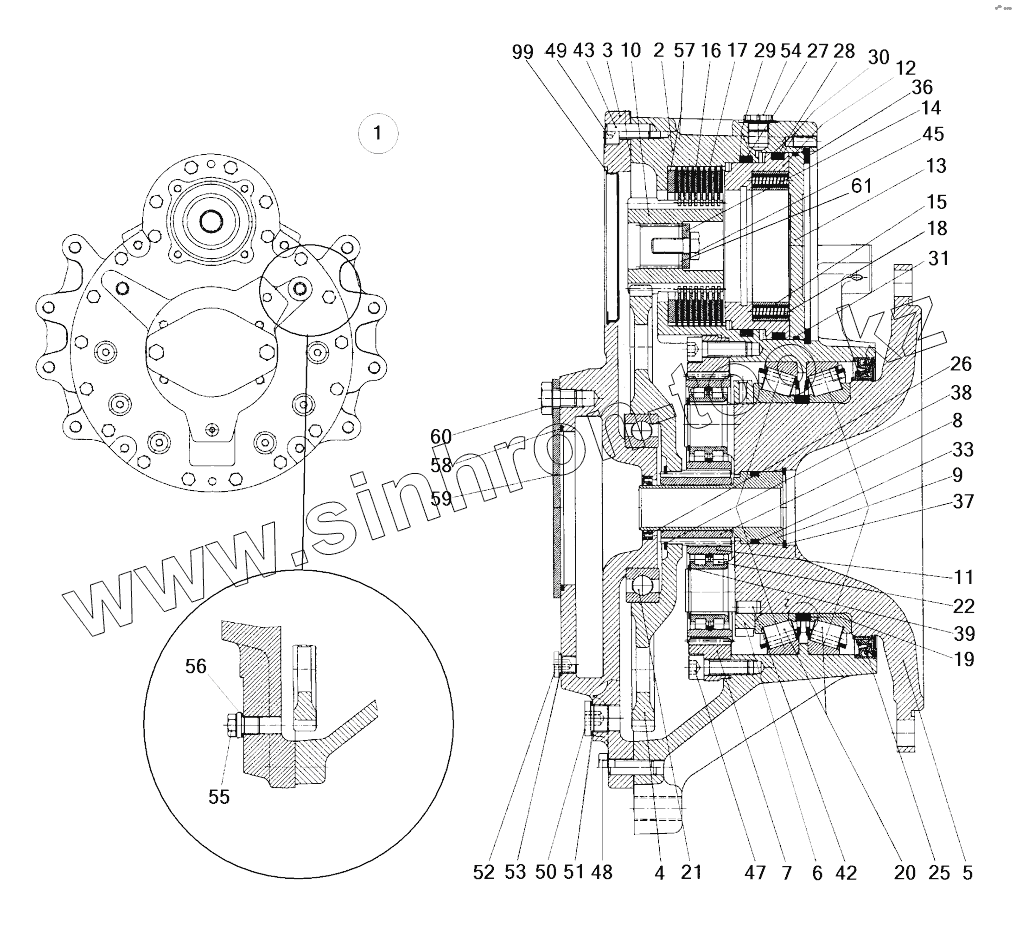

Каталог запасных частей к технике: DYNAPAC CC2300C. 4700392523 Gear box

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
25
26
27
28
29
30
31
33
36
37
38
39
42
43
45
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
99
Позиция на иллюстрации Заводской номер детали Название детали
1 4700392523 Gear box
2 Housing Housing
3 Housing Housing
4 Spurwheel Spur wheel
5 Sealscrew Seal screw
6 Shaftnut Shaft nut
7 Gear Conveyor gear
8 Gear Conveyor gear
9 Bushing Bushing
10 4812161071 Input shaft
11 Planetgear Planet gear
12 4812163171 Piston
13 Cover Cover
14 Disc Limited slip disc
15 Spacerring Spacer ring
16 4812161275 Inner disc
17 4700950480 Outer disc
18 Pressurespring Pressure spring
19 Spacerring Spacer ring
20 4700950481 Tapered roller bearing
21 4700950482 Ball bearing
22 4700950483 Cylinder roller bearing
25 4700950484 Lip seal
26 4700950485 Seal ring
27 4700950486 Piston seal
28 4700950486 Piston seal
29 4700950487 Supporting ring
30 4700950488 Supporting ring
31 4700950489 O-ring
33 4700950490 O-ring
36 Snapring Snap ring
37 Snapring Snap ring
38 Snapring Snap ring
39 Snapring Snap ring
42 Pin Pin
43 Pin Pin
45 Screw Screw
47 Screw Screw
48 Screw Screw
49 Screw Screw
50 4700950491 Plug
51 4700950492 Seal ring
52 4700950493 Plug
53 4700950494 Seal ring
54 4700950495 Plug
55 4700950496 Plug
56 4700950494 Seal ring
57 Cover Cover
58 4700950497 O-ring
59 Motorplate Motor plate
60 Screw Screw
61 4812161796 Snap ring
99 Plug Plug connector see engine Gr. 9
100 4812156091 Seal kit
100_27 4700950486 Piston seal
100_28 4700950486 Piston seal
100_29 4700950487 Supporting ring
100_30 4700950488 Supporting ring
100_31 4700950489 O-ring
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
