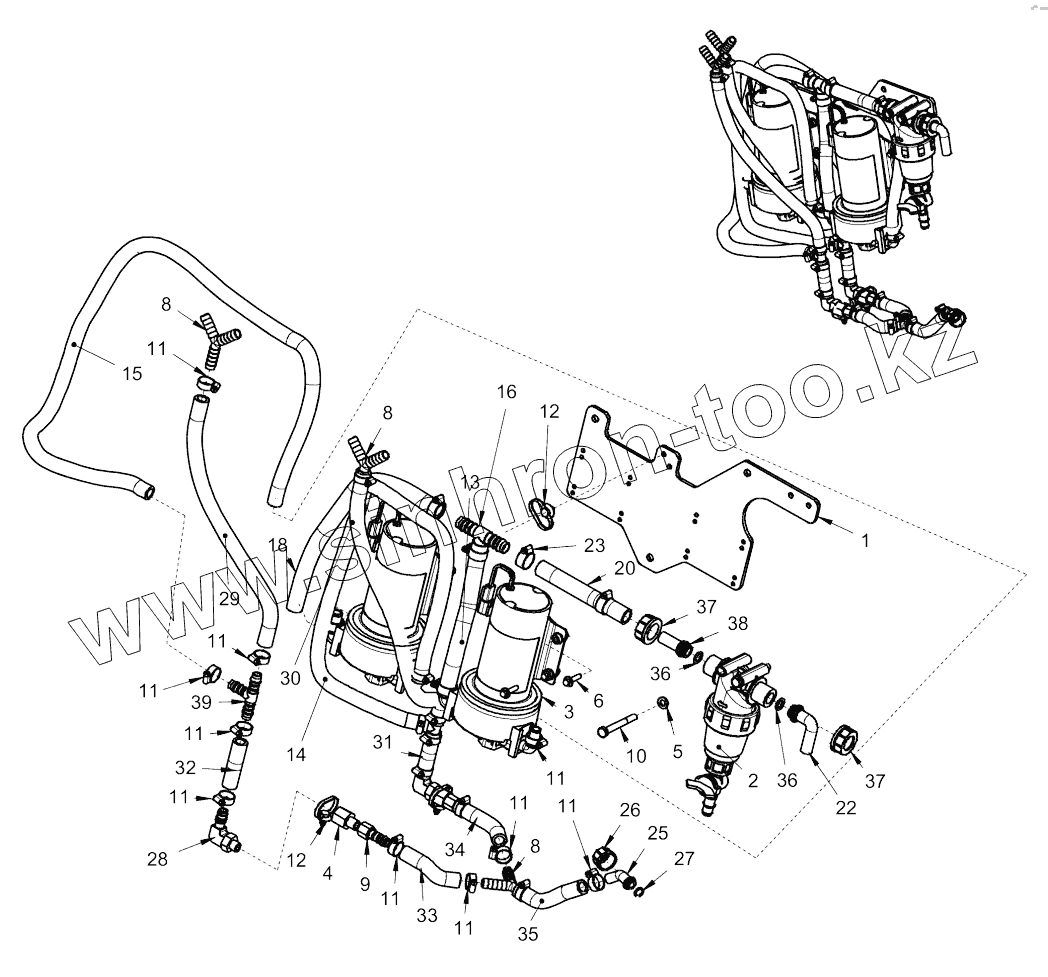

Каталог запасных частей к технике: DYNAPAC CC2200. Sprinkler pump mounted (2 pumps)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
8
8
8
9
10
11
11
11
11
11
11
11
11
11
11
12
12
13
14
15
16
18
20
22
23
25
26
27
28
29
30
31
32
33
34
35
36
36
37
37
38
39
Позиция на иллюстрации Заводской номер детали Название детали
1 4812121292 Sprinkler plate
2 4812111325 Water filter
2.1 4700791959 O-ring
2.2 4700791949 Filter element
2.3 4700791568 Gasket
2.4 4700379009 Valve
3 4812126685 Sprinkler pump
4 4700792813 Bypass valve
5 4700904229 Washer
6 4700500502 Hexagon screw with flange
8 4811000107 Hose connection
9 4811000085 Hose connection
10 4700500189 Screw
11 4700313002 Hose clamp
12 4700792441 Cable tie with holder
13 4700792073 Hose reinforced
14 4812112074 Plastic hose
15 4812112074 Plastic hose
16 4700792065 Hose connection
18 4700792073 Hose reinforced
20 4700792073 Hose reinforced
22 4812111332 Hose connection swivel
23 4700313003 Hose clamp
25 4700393542 Hose connection
26 4700392227 Swivel nut
27 4700792600 O-ring 70
28 4700901431 Hose connection
29 4812112074 Plastic hose
30 4812112074 Plastic hose
31 4812112074 Plastic hose
32 4812112074 Plastic hose
33 4812112074 Plastic hose
34 4812112074 Plastic hose
35 4812112074 Plastic hose
36 4700480852 O-ring 70
37 4700792779 Swivel nut
38 4700792780 Hose connection swivel
39 4700923735 Hose connection
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
