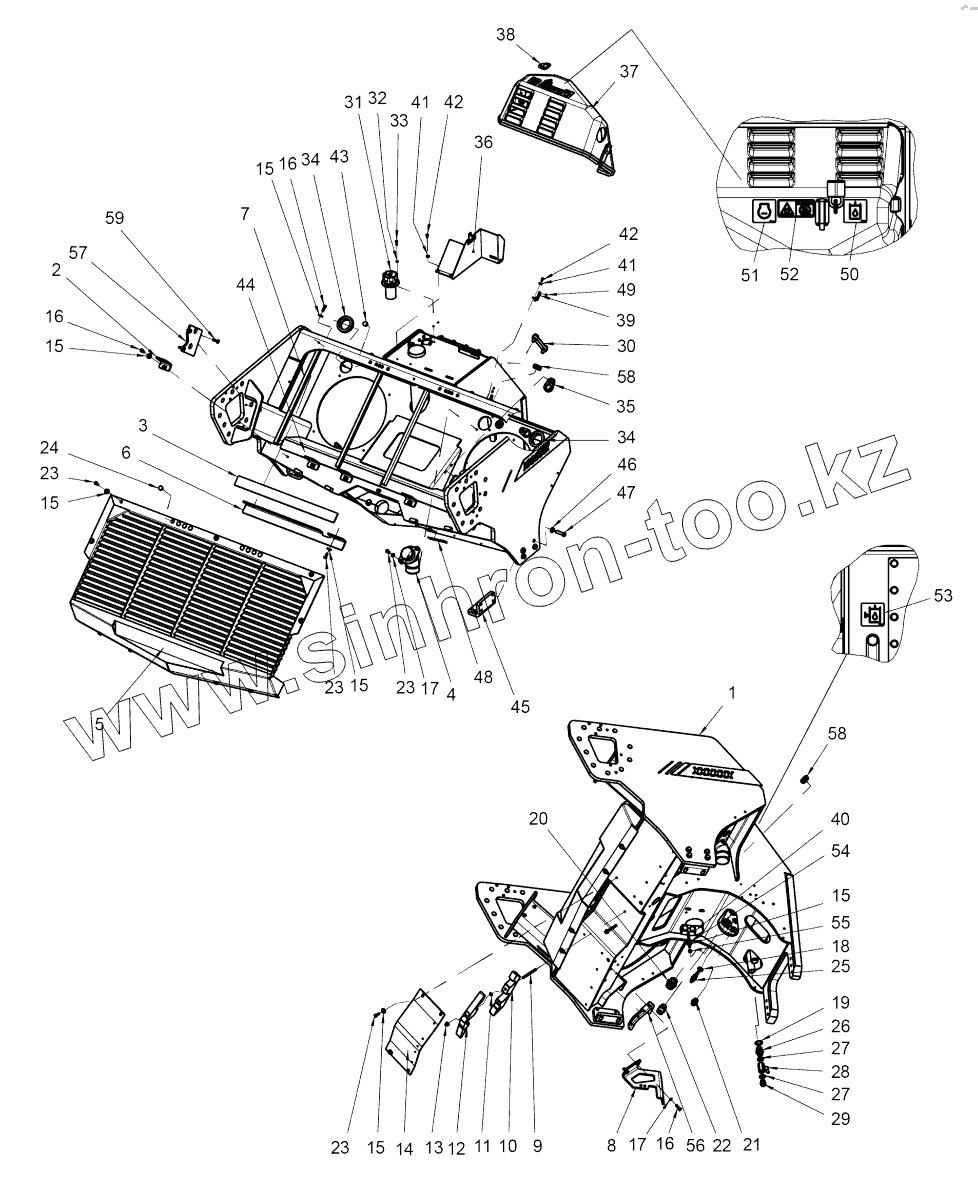

Каталог запасных частей к технике: DYNAPAC CC2200. Rear frame
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
15
15
15
15
16
16
16
17
17
18
19
20
21
22
23
23
23
23
24
25
26
27
27
28
29
30
31
32
33
34
34
35
36
37
38
39
40
41
41
42
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
58
59
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4812130522 | Rear frame | |
| 2 | 4700391296 | Bracket | |
| 3 | 4700392078 | Rubber cloth | |
| 4 | 4700393998 | Bulkhead union | |
| 5 | 4812110212 | Cooler cover | |
| 6 | 4700392075 | Bracket | |
| 7 | 4700391299 | Rubber strip | |
| 8 | 4812118510 | Bracket | |
| 9 | 4700791849 | Stud m | |
| 10 | 4700392148 | Hose support | |
| 11 | 4700904044 | Lock washer | |
| 12 | 4700392149 | Hose support | |
| 13 | 4700902286 | Lock nut | |
| 14 | 4700392164 | Cover | |
| 15 | 4700904640 | Washer | |
| 16 | 4700500021 | Hex. screw | |
| 17 | 4700904229 | Washer | |
| 18 | 4700162015 | Seal ring | |
| 19 | 4700791120 | Washer sealing | |
| 20 | 4700792338 | Adapter | |
| 21 | 4700791405 | Straight o-ring connector | |
| 22 | 4700904728 | Adapter | |
| 23 | 4700500053 | Hex. screw | |
| 24 | 4700184111 | Plug | |
| 25 | 4700792276 | Temperature sensor | |
| 26 | 4700792421 | Straight connector | |
| 27 | 4700162006 | Seal ring | |
| 28 | 4700925599 | Ball valve | |
| 29 | 4700232056 | Steel plug threaded | |
| 30 | 4700792492 | Level gauge | |
| 31 | 4700391026 | Ventilating filter | |
| 32 | 4700904281 | Washer | |
| 33 | 4700508020 | Screw | |
| 34 | 4700393001 | Grommet | |
| 35 | 4700393149 | Grommet | |
| 36 | 4700393308 | Bracket | |
| 37 | 4700394364 | Casing | |
| 38 | 4700358881 | Pad lock | |
| 39 | 4700394297 | Bracket | |
| 40 | 4700287295 | Clamp | |
| 41 | 4700603001 | Washer | |
| 42 | 4700500012 | Hex. screw | |
| 43 | 4700792607 | Shock absorber | |
| 44 | 4700394655 | Rubber cloth | |
| 45 | 4812110508 | Bracket | |
| 46 | 4700904703 | Plain washer | |
| 47 | 4700947690 | Screw | |
| 48 | 4700394513 | Rubber cloth | |
| 49 | 4700624021 | Pop rivet | |
| 50 | 4700272372 | Decal HYDRAULIC OIL | |
| 51 | 4700388449 | Decal ENGINE COOLANT FILL | |
| 52 | 4700791642 | Decal WARNING Use of starting fluid prohib. | |
| 53 | 4700272373 | Decal HYDRAULIC LEVEL | |
| 54 | 4700792500 | Stud | |
| 55 | 4700586003 | Hexagon lock nut | |
| 56 | 4812110347 | Edge trim | |
| 57 | 4812110489 | Hose guard | |
| 58 | 4812115411 | Grommet | |
| 59 | 4700792726 | Hexagon socket countersunk screw |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
