DCM Compaction meter with Evib

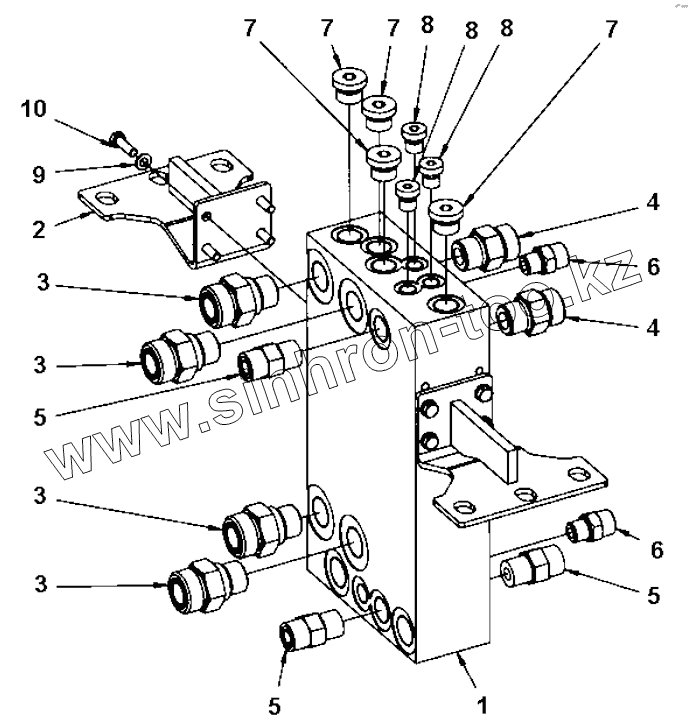

1
2
3
3
3
3
4
4
5
5
5
6
6
7
7
7
7
8
8
8
9
10
Позиция на иллюстрации
Заводской номер детали
Название детали
1
4700390463
Connection block
2
4700391889
Bracket
3
4700791539
Adapter
4
4700791743
Straight connector orfs
5
4700791799
Straight connector orfs
6
4700791409
Straight connector orfs
7
4700792295
Steel plug
8
4700904951
Plug
9
4700904228
Steel plain washer
10
4700500040
Screw
13
4700791914
Adapter
