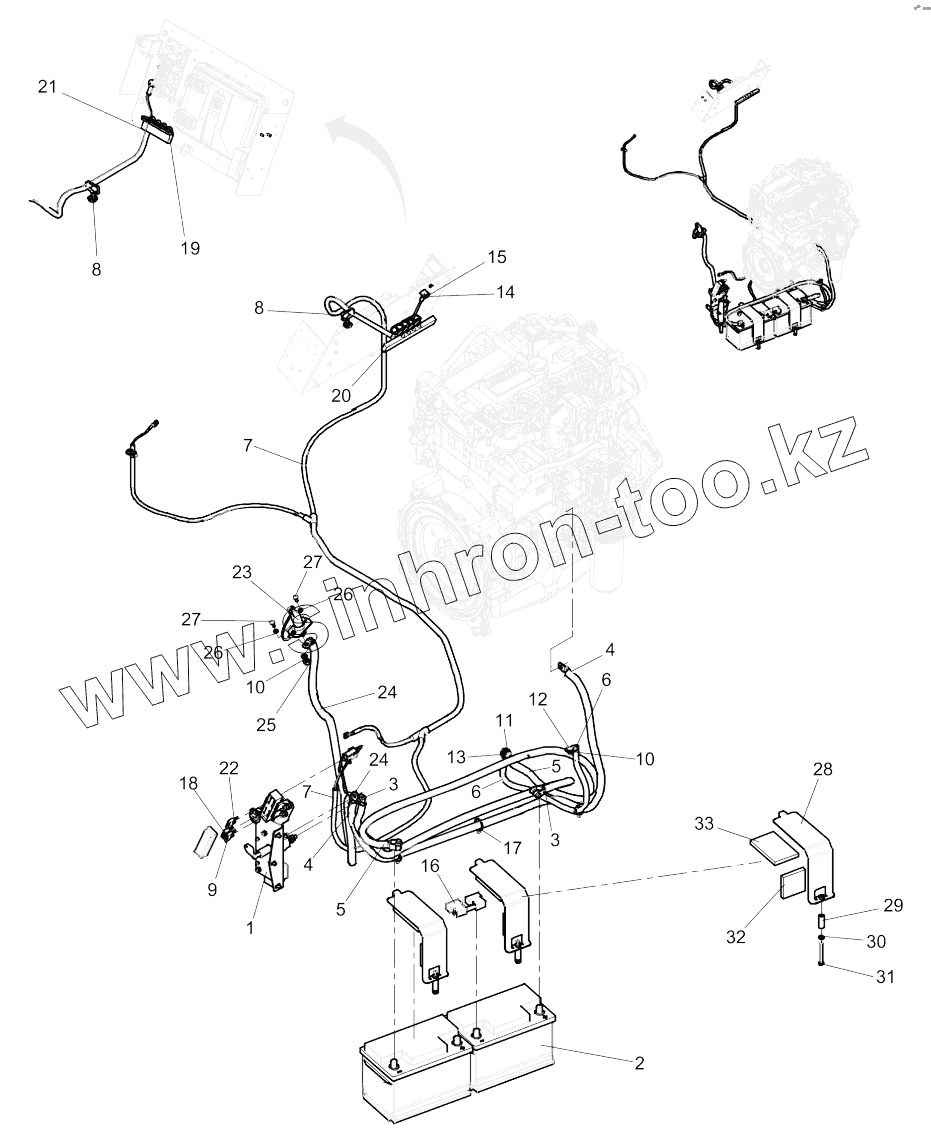

Каталог запасных частей к технике: DYNAPAC CC2200. Cables, power supply
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
CA1400 (2016)
CA2500D (2016)
CA2500D (2018)
CA2500D-PD (2018)
CA250D (2011)
CA252D (2008)
CA2800D (2017)
CA3500D (2016)
CA4000D (2017)
CA4000D (2020)
CA4600D (2019)
CA5500D (2015)
CA610PD (2014)
CA6500 (2018)
CC1000 (2019)
CC1100CC (2015)
CC1200C Plus (2015)
CC1200C VI (2018)
CC1200CC (2018)
CC125 (2015)
CC1250 (2015)
CC1300 (2018)
CC1300C (2015)
CC1300C (2016)
CC2200 (2018)
CC2200 (2020)
CC2300C (2018)
CC3300 (2018)
CC4000 VI (2018)
CC4200C VI (2020)
CC5200C (2018)
CC6200 VI (2020)
CC800 (2019)
CC900 (2018)
CC900S (2018)
CG2300 (2018)
CP142 (2015)
CP275 (2014)
Dynapac CA1500 (2017)
Dynapac CA2500 (2012)
Dynapac CA302D (2008)
Dynapac CA302D (2010)
Dynapac CA5000D (2017)
Dynapac CC142 (2009)
Dynapac CC2200C (2015)
Dynapac CC224HF (2012)
Dynapac CC322 (2008)
Dynapac CC422 (2010)
Dynapac CC5200 (2014)
Dynapac CC5200 (2017)
Dynapac CC5200 (2017)
Dynapac CC5200 VI (2017)
Dynapac CC800 (2013)
Dynapac CC800 (2014)
Dynapac F1200C/CS (2018)
Dynapac F1200CS/CS (2018)
Dynapac F1800C (2018)
Dynapac F181C (2010)
Dynapac PL2000LS (2010)
Dynapac PL2000LS (2010)
Dynapac PL2000S (2010)
Dynapac PL2000S (2010)
Dynapac SCC1300 (2014)
Dynapac SD2500C (ч. 1) (2018)
Dynapac SD2500C (ч. 2) (2018)
Dynapac SD2550C (ч. 1) (2018)
Dynapac SD2550C (ч. 2) (2018)
F2500C (2018)
SD2550CS (2015)
Схема
>
Не выбрано
4812159352 Service kit, 50h Plus
4812159381 Service kit, 500h
4812159382 Service kit, 500h Plus
4812159383 Service kit, 1000h
4812159384 Service kit, 1000h Plus
4812159672 Start up kit
4812155792 Eccentric shaft kit
4700938891 Drum rotation kit
4812155791 Scraper kit
4812155158 Shock absorber kit, drum
Keys
Fuses
Front frame
Front frame module
4700391023 Steering cylinder
Tank structure module
Sprinkler tank structure mount
4700391307 Cover
Hose support
Hitch module
4812119139 Steering hitch
Filling pipe
Locking device module
Grab handle module
Rear frame
Rear frame
Cover
Engine structure module
Engine structure
4812128230 Engine cover, left
4812128231 Engine cover, right
Radiator assembly
Fan assembly
Noise suppression kit, covers
Sprinkler system
Sprinkler pump module
Sprinkler pump
Water hoses
Scraper assy with nozzles
Scraper assy
Sprinkler pump, backup
Sprinkler pump module (2 pumps)
Sprinkler pump mounted (2 pumps)
End frame, front
End frame, front
Frame assy
Fork, vibration side
Fork, propulsion side
Cover plate
Hose clamp, vibration side
Hose clamp, propulsion side
Step, vibration side
Scraper module, without nozzles
Scraper assy
Scraper module, with nozzles
4700394340 Scraper bracket, cpl
Grab handle, release
Grab handle, lift
Grab handle, lift offset/cocoa mat
Eyelet module
Process mirrors
End frame, rear
End frame, rear
End frame, rear offset
Frame
Connection block
Micro switch
SMV-sign
Drum
Drum bearing
Drive unit
4700392453 Drum gear
Vibrating suspension, front drum
Vibrating suspension, rear drum
Vibration motor, mount
4700395915 Hydraulic motor Vibration
Engine
Engine
Engine module
Clutch module
Charge air hoses
Water cooler hoses
Air cleaner module
Air cleaner hoses
Exhaust system
DPF assembly
Fuel hose module
Charge air cooler
Water cooler
Expansion tank assembly
Coolant hoses
Belt guard module
Hydraulic system, front drum
Hydraulic system, rear drum std
Hydraulic system, rear drum offset
Hydraulic valve module, offset/combi
Hydraulic valve
4700391017 Hydraulic valve
Hydraulic system, frame
Hydraulic system, engine room
Hydraulic pump module
Hydraulic pump assembly
Pump bracket
Hydraulic pump module, STD
4700392521 Hydraulic pump
4812156655 Hydraulic pump
Rotating group, cpl
Valve block, cpl
Control module
Flushing valve
4812156656 Hydraulic pump
Rotary group, cpl
Valve block, cpl
4812155787 Hydraulic pump
Rotary group, cpl
Valve block, cpl
Hydraulic pump module, ECO
Hydraulic valve module
Hydraulic valve
4700395924 Hydraulic valve
Radiator assembly
Hydraulic system, steering Std
Hose bracket
Hydraulic steering, sliding seat
Carrier
Steering, slideable
Flow divider module
Flow divider assy
Cables, power supply
Battery disconnector module
Battery disconnector
Electric cables, power supply cab
Cables, engine-ECU
Standard ECU module
Standard ECU assembly
Electric cables, sensors/ horn/ back-up alarm
Horn module
Horn
Back-up alarm module
Back-up alarm
Driving and side direction lights
Driving lights, front
Steering column switch module
Cable harness and switch module
Registration plate light module
Registration plate light
Driving lights, rear
Turn signals
Rotating beacon, working light
Rotating beacon module
Working light module H3
Drum edge lights
Bracket
Bracket
Asphalt temp meter
Temp sensor module
Platform, no cab
Platform with 4-post ROPS
4812119368 Platform with 4-post ROPS
Roof
ROPS interior
Decals basic kit
Manual box
Hand rail, left
Hand rail
Hand rail, right
Hand rail
Hand rail
Lunch box module
Cab, asymmetric
4812119359 Cab, cpl
Screen front and rear
Corner screens left and AC hood
24V socket and air nozzels
Wipers front/rear and front ceiling
Cab frame harness
Heating installation
Heater cover plate
AC-kit
Switch kit
Door sliding screens
Door complete
Screens asymmetric right
Lower screen and water system, left
Lower screens and water system, right
4812119358 Cab comfort, cpl
Interior Cab
Evaporator AC-ACC
4812113623 Evaporator, cpl
ACC kit
4812113624 ACC kit
Decals basic kit
Cab noise cover
Rear view mirror
Drivers seat
Seat frame structure
4700391163 Steering column
Seat, galon suspensioned
Seat comfort, galon suspensioned
Seat comfort, fabric suspensioned
Seat belt 2"
Seat belt 2" with reminder
Seat belt 3"
Seat belt 3" with reminder
Controls, slidable and turning
Cross sliding
Drive control module
Drive control
Control handle
Display unit
Control panel cover
Seat frame adapter module, rotating
Decals
Air conditioning
Compressor module
Condensor module
Condensor
AC-ACC, Hose kit
Hose kit
Hose kit Compressor
Tachograph, Car stereo
Tachograph with holder
Car stereo module 12V
Fire extinguisher/First Aid Cushion
Fire extinguisher assembly
Edge cutter
Edge cutter, module
4700390998 Edge cutter, cpl
4700390999 Holder
4700391009 Bearing unit
4700387275 Hydraulic cylinder
Cutting disc module
Pressing roller, module
Hydraulic valve module
Hydraulic valve
4700391018 Hydraulic valve
Disc/Roller holder
Dynalyzer
Holder module, Computer
DynaLink module
4812013038 GPS module
DCM Compaction meter with Evib
1
2
3
3
4
4
5
5
6
6
7
7
8
8
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
25
26
26
27
27
28
29
30
31
32
33
Позиция на иллюстрации
Заводской номер детали
Название детали
1
Batterydisconnectormodule
Battery disconnector module
2
Battery
Battery module
3
4700792364
Battery cable +
4
4700792770
Connection cable, coarse
5
4811000490
Connection cable, coarse
6
4811000492
Connection cable, coarse
7
4812114736
Cable harness, power supply
8
4700792442
Cable tie
9
4700904037
Fuse
10
4700904637
Washer
11
4700904231
Washer
12
4700500043
Hex. screw
13
4700500035
Hex. screw
14
4700904229
Washer
15
4700570005
Hex. nut
16
4700792684
Battery union cable
17
4700792441
Cable tie with holder
18
4700791450
Fuse
19
4700792441
Cable tie with holder
20
4700791597
Rubber strip
21
4700791597
Rubber strip
22
4700904039
Fuse
23
4812117893
Jump-start connector
24
4812117905
Connection cable coarse
25
4700570006
Hex. nut
26
4700904228
Steel plain washer
27
4700500013
Hex. screw
28
4812114524
Battery bracket
29
4700387677
Spacer sleeve
30
4700904229
Washer
31
4700500189
Screw
32
4812118630
Battery insulation
33
4812118249
Battery insulation
