Каталог запасных частей к технике: DYNAPAC CC2200. Water cooler hoses

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CA1400 (2016) CA2500D (2016) CA2500D (2018) CA2500D-PD (2018) CA250D (2011) CA252D (2008) CA2800D (2017) CA3500D (2016) CA4000D (2017) CA4000D (2020) CA4600D (2019) CA5500D (2015) CA610PD (2014) CA6500 (2018) CC1000 (2019) CC1100CC (2015) CC1200C Plus (2015) CC1200C VI (2018) CC1200CC (2018) CC125 (2015) CC1250 (2015) CC1300 (2018) CC1300C (2015) CC1300C (2016) CC2200 (2018) CC2200 (2020) CC2300C (2018) CC3300 (2018) CC4000 VI (2018) CC4200C VI (2020) CC5200C (2018) CC6200 VI (2020) CC800 (2019) CC900 (2018) CC900S (2018) CG2300 (2018) CP142 (2015) CP275 (2014) Dynapac CA1500 (2017) Dynapac CA2500 (2012) Dynapac CA302D (2008) Dynapac CA302D (2010) Dynapac CA5000D (2017) Dynapac CC142 (2009) Dynapac CC2200C (2015) Dynapac CC224HF (2012) Dynapac CC322 (2008) Dynapac CC422 (2010) Dynapac CC5200 (2014) Dynapac CC5200 (2017) Dynapac CC5200 (2017) Dynapac CC5200 VI (2017) Dynapac CC800 (2013) Dynapac CC800 (2014) Dynapac F1200C/CS (2018) Dynapac F1200CS/CS (2018) Dynapac F1800C (2018) Dynapac F181C (2010) Dynapac PL2000LS (2010) Dynapac PL2000LS (2010) Dynapac PL2000S (2010) Dynapac PL2000S (2010) Dynapac SCC1300 (2014) Dynapac SD2500C (ч. 1) (2018) Dynapac SD2500C (ч. 2) (2018) Dynapac SD2550C (ч. 1) (2018) Dynapac SD2550C (ч. 2) (2018) F2500C (2018) SD2550CS (2015)

Схема > Не выбрано 4700950174 Service kit 50h, Cummins QSB 3.3 4700939076 Service kit 250 / 750 h 4700950175 Service kit 500h, Cummins QSB 3.3 4700950176 Service kit 1000h, Cummins QSB 3.3 4812159352 Service kit, 50h Plus 4812160287 Service kit 1000h, Cummins QSB 3.3 4812155792 Eccentric shaft kit 4700938891 Drum rotation kit 4812155791 Scraper kit 4812155158 Shock absorber kit, drum 4812155698 Sprinkler kit Keys Fuses Front frame Front frame module 4700391023 Steering cylinder Tank structure module Sprinkler tank structure mount 4700391307 Cover Hose support Hitch module To A016480 4812117737 Articulated joint To A016480 Hitch module From A016481 4812119139 Steering hitch From A016481 Filling pipe Locking device module Grab handle module Rear frame Rear frame Cover Engine structure, module Engine structure 4812121575 Engine cover, left 4812121578 Engine cover, right 4700396638 Noise suppression kit, covers Noise suppression plates Sprinkler system, To A020962 Sprinkler pump module, To A013069 Sprinkler pump To A013069 Sprinkler pump module, From A013070 Sprinkler pump From A013070 Water hoses To A020962 Scraper assy with nozzles To A020962 Scraper assy To A020962 Sprinkler pump, backup To A013069 Sprinkler pump, backup From A013070 Sprinkler pump, additonal sprinkler/cocoa mat To A013069 Sprinkler pumps To A013069 Sprinkler pump module (2 pumps) From A013070 Sprinkler pump mounted (2 pumps) From A013070 Sprinkler system From A020963 Sprinkler pump module From A020963 Sprinkler pump From A020963 Sprinkler pump, backup From A020963 Sprinkler pump module (2 pumps) Sprinkler pump mounted (2 pumps) End frame, front End frame, front Frame assy Fork, vibration side Fork, propulsion side Cover plate Hose clamp, vibration side Hose clamp, propulsion side Step, vibration side Scraper module, without nozzles Scraper assy Scraper module, with nozzles 4700394340 Scraper bracket, cpl Grab handle, release Grab handle, release Grab handle, lift Grab handle, lift offset/cocoa mat Eyelet module Cocoa mat module Cocoa mat assembly Cocoa mat bracket module Cocoa mat bracket Process mirrors End frame, rear End frame, rear End frame, rear offset Frame Connection block Micro switch SMV-sign Drum Drum bearing Drive unit 4700392453 Drum gear Vibrating suspension, front drum From A017678 Vibrating suspension Vibration motor, mount 4700395915 Hydraulic motor Vibration Engine Engine Engine module Air cooler hoses Water cooler hoses Air cleaner module Air cleaner hose module Muffler Exhaust pipe module Fuel hose module Charge air cooler Water cooler Expansion tank assembly Coolant hoses Hydraulic system, front drum Hydraulic system, rear drum std Hydraulic system, rear drum offset Hydraulic valve module, offset/combi 4700391017 Hydraulic valve Hydraulic valve Hydraulic system, frame Hydraulic system, engine room Fan assembly Hydraulic valve module Hydraulic valve 4700395924 Hydraulic valve Hydraulic pump module Hydraulic pump 4700392521 Hydraulic pump 4812156655 Hydraulic pump Rotating group, cpl Valve block, cpl Control module Flushing valve 4812156656 Hydraulic pump Rotary group, cpl Valve block, cpl 4812155787 Hydraulic pump Rotary group, cpl Valve block, cpl Radiator assembly Hydraulic system, steering Std Hose bracket Hydraulic steering, sliding seat Steering, slideable Electric cables, power supply Battery disconnector Battery disconnector Holder module, battery Electric cables, power supply cab Electric cables, engine - ECU Standard ECU module Standard ECU assembly Electric cables, engine - ECU Standard ECU module Standard ECU assembly Electric cables, sensors/ horn/ back-up alarm Horn module Horn Back-up alarm module Back-up alarm Driving & side direction lights Driving lights, front Steering column switch module Cable harness and switch module Registration plate light module Registration plate light Driving lights, rear Turn signals Rotating beacon, working light Rotating beacon module Working light module H3 Drum edge lights Bracket Bracket GPS/DCA, Asphalt temp meter Cable harness kit, GPS Cable and Gateway GPS/DCA equipment assy Temp sensor module Computer with holder Platform, no cab Platform with 4-post ROPS 4812119368 Platform with 4-post ROPS Roof ROPS interior Decals basic kit Manual box Hand rail, left Hand rail Hand rail, right Hand rail Hand rail Lunch box module Cab, asymmetric 4812119359 Cab, cpl Screen front and rear Corner screens left and AC hood 24V socket and air nozzels Wipers front/rear and front ceiling Cab frame harness Heating installation Heater cover plate AC-kit Switch kit Door sliding screens Door complete Screens asymmetric right Lower screen and water system, left Lower screens and water system, right 4812119358 Cab comfort, cpl Interior Cab Evaporator AC-ACC 4812113623 Evaporator, cpl ACC kit 4812113624 ACC kit Decals basic kit Cab noise cover Rear view mirror Drivers seat Seat frame structure 4700391163 Steering column Seat, galon suspensioned Seat comfort, galon suspensioned Seat comfort, fabric suspensioned Seat belt 2" Seat belt 2" with reminder Seat belt 3" Seat belt 3" with reminder Controls, slidable and turning Cross sliding Carrier Drive control, cpl To A015308, incl 15394 Drive control To A015308, incl 15394 Drive control module From A015309, excl 15394 Drive control From A015309, excl 15394 Control handle From A015309, excl 15394 Display unit Control panel cover Seat frame adapter module, rotating Decals Plain Dynapac decals, kit Air conditioning Compressor module Compressor complete Condensor module Condensor AC-ACC, Hose kit Hose kit Hose kit Compressor Hose kit Compressor Radio and cd player Radio and cd player module Power supply module Tachograph Tachograph holder module Tachograph holder Cable harness kit Tachograph, Car stereo Tachograph with holder Car stereo module 12V Fire extinguisher/First Aid Cushion Fire extinguisher assembly Edge cutter Edge cutter, module 4700390998 Edge cutter, cpl 4700390999 Holder 4700391009 Bearing unit 4700387275 Hydraulic cylinder Cutting disc module Pressing roller, module Disc/Roller holder Hydraulic valve module Hydraulic valve 4700391018 Hydraulic valve Asphalt temperature meter Chip spreader Chip spreader Bracket module Hydraulic valve module Hydraulic hoses Hydraulic hoses Driving lights assy Dyn@lyzer Dyn@Link module 4812013038 GPS module DCM Compaction meter with Evib

1

1

1

2

3

4

4

5

6

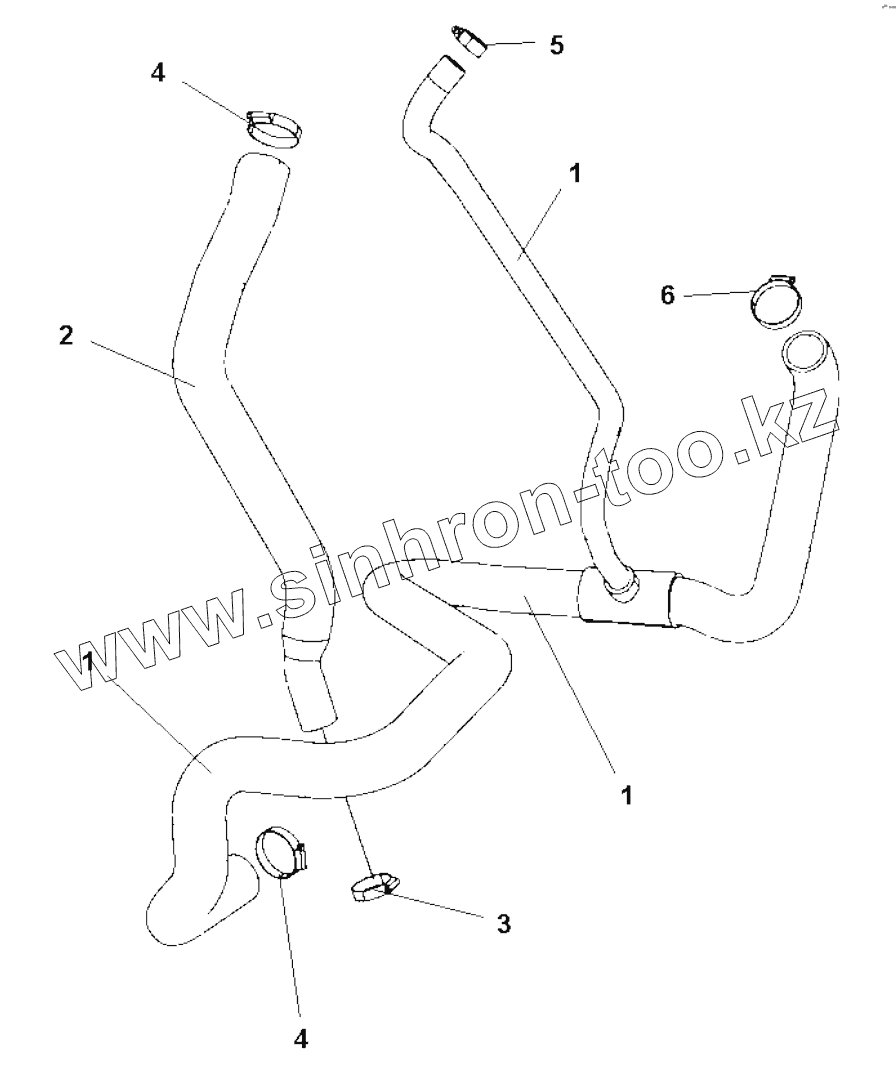

Позиция на иллюстрации	Заводской номер детали		Название детали
1	4812110499		Coolant hose
2	4700395423		Coolant hose
3	4700313008		Hose clamp
4	4700313010		Hose clamp
5	4700313004		Hose clamp
6	4700313009		Hose clamp

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
