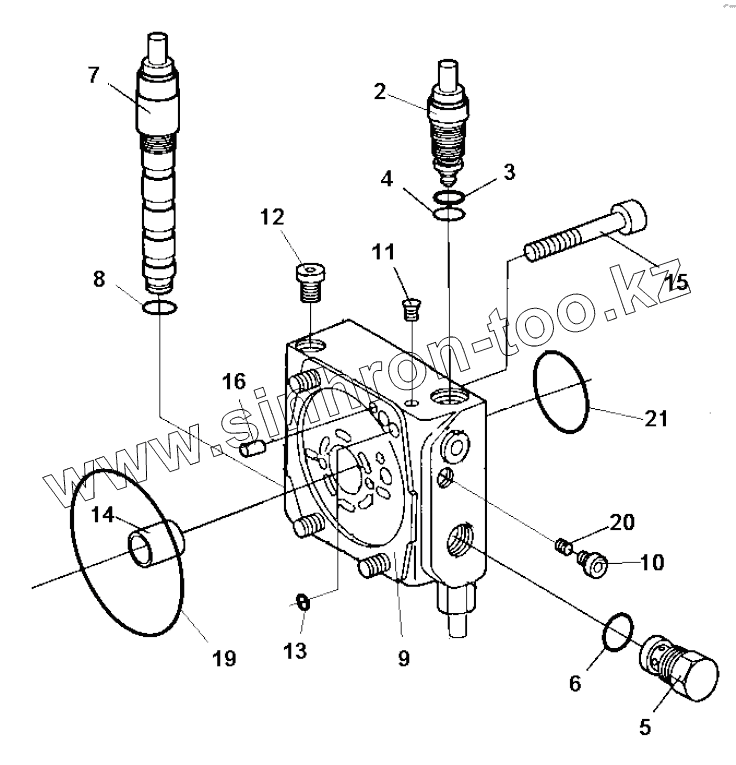

2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
19
20
21
Позиция на иллюстрации
Заводской номер детали
Название детали
2
4812161580
Pressure relief valve, 395 bar
3
4700936673
Back-up ring
4
4700927278
O-ring
5
4812156154
Pressure relief valve
6
4812157851
O-ring
7
4812159756
Pressure override valve, cpl
8
4700936392
O-ring
9
Housing
Housing
10
4700936855
Locking screw
11
4700909514
Double break-off pin
12
4700902625
Plug
13
4700909469
O-ring
14
Bearingbush
Bearing bush
15
Screw
Screw
16
Pin
Pin
19
O-ring
O-ring
20
Orifice
Orifice
21
4700935192
O-ring
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
