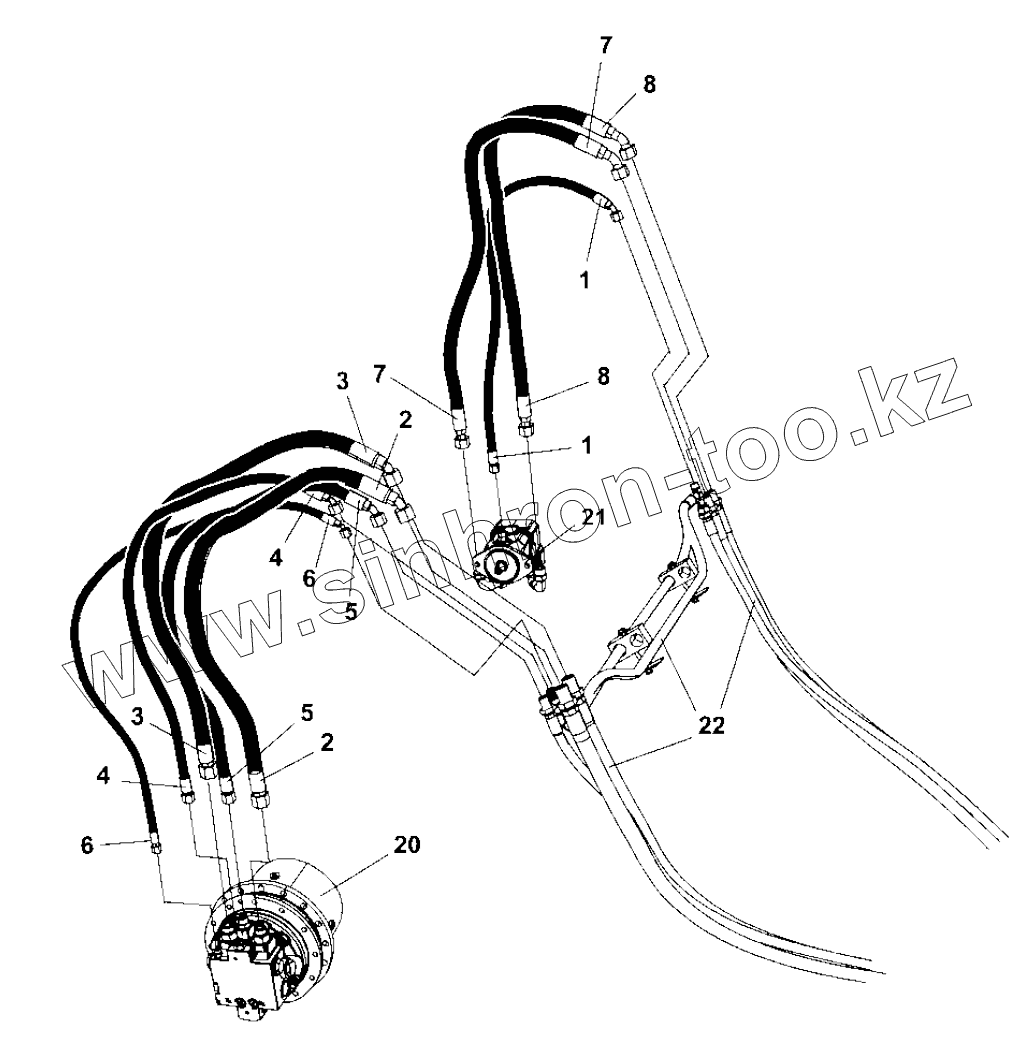

1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
20
21
22
Позиция на иллюстрации
Заводской номер детали
Название детали
1
4700484179
Hydraulic hose
2
4700484174
Hydraulic hose
3
4700484175
Hydraulic hose
4
4700484176
Hydraulic hose
5
4700484177
Hydraulic hose
6
4700484178
Hydraulic hose
7
4700484361
Hydraulic hose
8
4700484187
Hydraulic hose
20
Driveunit
Drive unit
21
Vibrationmotor
Vibration motor, cpl
22
Hydraulichoses
Hydraulic hoses, frame
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
